Description
Crowcon Multiscan++S2 is a SIL2-certified multifunction gas detection control panel for complex industrial plants requiring high-integrity protection.
The Crowcon Multiscan++S2 is a SIL2-certified, multifunction gas detection control panel for safety-related systems in demanding industrial environments. It coordinates large numbers of fixed gas detectors, delivers extensive input/output capacity and provides strong integration with wider control networks. Its flexible, modular architecture supports both analogue and addressable devices, while powerful diagnostics and event logging help maintain system availability and demonstrate compliance. From compact process units to extensive multi-building sites, it offers a scalable platform for continuous gas monitoring and automated safety responses.
AT A GLANCE
- SIL2-certified safety platform: Designed for safety-related gas detection control in classified and non-classified industrial areas.
- Scalable system capacity: Manages from small installations up to large plants with hundreds of detectors and programmable outputs.
- Flexible system architecture: Supports 4–20 mA analogue and addressable RS485 devices, remote I/O modules and multiple communication protocols.
- Enhanced diagnostics and logging: Continuous self-testing, fault localisation and detailed event records support maintenance and audit requirements.
For detailed technical data, consult the Specifications tab.
Overview of Crowcon Multiscan++S2
High-integrity safety and compliance
The Crowcon Multiscan++S2 is engineered as the central controller for safety-related gas detection systems where functional integrity is critical. Functional safety certification (SIL2/SIL1 references) according to EN 50402 supports its use in applications with defined safety functions and risk reduction targets. ATEX certification to EN 60079-29-1 for use in potentially explosive atmospheres, together with EMC approvals, underlines its suitability for refineries, petrochemical plants, pharmaceutical production and food and beverage facilities. These approvals help duty holders demonstrate compliance with corporate standards and regulatory expectations.
Scalable control for small zones to complex plants
The Multiscan++S2 is designed to cover everything from small, localised areas through to extensive, multi-building installations. Depending on the model, it can manage and monitor up to 256 gas detectors and up to 256 addressable inputs, allowing progressive expansion as facilities evolve. Panel variants with 16, 32, 64, 128 or 256 inputs enable close matching of capacity to project scope and budget. At the upper end, maximum figures of up to 264 inputs and 520 outputs support intricate cause-and-effect strategies, interlocks and shutdown sequences across large and complex sites.
Flexible architecture for mixed detector systems
The control panel architecture supports both new projects and upgrades to existing gas detection systems. It accepts 4–20 mA analogue signals and addressable detectors daisy-chained on RS485 loops, enabling mixed installations and phased migration from legacy equipment. Up to two closed, galvanically isolated RS485 (EIA-485) loops improve noise immunity and resilience in electrically harsh environments. Addressable field devices and remote modules are galvanically isolated to protect against electrical disturbances and surges, helping maintain stable performance over long cable runs and through plant electrical events.
Extensive I/O and tailored control logic
The Multiscan++S2 provides significant I/O capacity to implement robust safety responses and process interlocks. Up to 512 freely programmable outputs are available via remote modules, complemented by on-board relay outputs that can directly control audible and visual alarms, ventilation, valves and shutdown systems. Box versions typically include eight on-board relays, with smaller models offering slightly fewer, allowing localised hardwired control where required. System I/O can be expanded through dedicated 8-input modules, 16-output open-collector cards and relay expansion boards, giving engineering teams the flexibility to implement detailed cause-and-effect matrices aligned with site standards and operating philosophies.
Diagnostics, self-testing and event management
A powerful microprocessor continuously supervises the panel and connected devices, running extensive self-tests to verify system integrity. The Multiscan++S2 detects and localises potential faults rapidly, supporting faster troubleshooting and minimising downtime. A backlit graphic LCD presents real-time gas readings, channel status and system messages, while 18 status LEDs provide immediate visual indication of alarms, faults and operating conditions. An internal event log is fully viewable from the front panel for on-site diagnostics and can be downloaded to a PC for more detailed analysis. Combined with the parallel printer port for real-time printouts or event reports, this logging capability helps create defensible audit trails for incident investigation and inspection.
Communications and integration with wider systems
The Crowcon Multiscan++S2 is designed to integrate into wider control and monitoring architectures. Communication via Galileo or Modbus supports field connection to compatible detectors and remote devices, while Modbus communication enables supervision from BMS and SCADA networks. An RS232 serial port on the CPU board facilitates PC connection for configuration, monitoring and supervisory control. Optional RS232/RS485 interface modules further extend communication options, and an accessory TCP/IP interface allows LAN connectivity and remote monitoring over Ethernet. This range of interfaces helps engineering teams integrate the panel into existing automation, safety and maintenance systems without complex workarounds.
Streamlined configuration and lifecycle changes
Dedicated Windows-based configuration software simplifies commissioning and subsequent modifications. Engineers can define channel parameters, outputs, alarm logic and communications in a structured environment, then upload the configuration via the RS232 link. This approach reduces on-site programming time and lowers the risk of manual entry errors, particularly on larger installations. Support for both local and remote configuration and monitoring aids maintenance planning, especially where multiple panels or buildings must be managed under a common strategy over the life of the plant.
Robust mechanical design and power flexibility

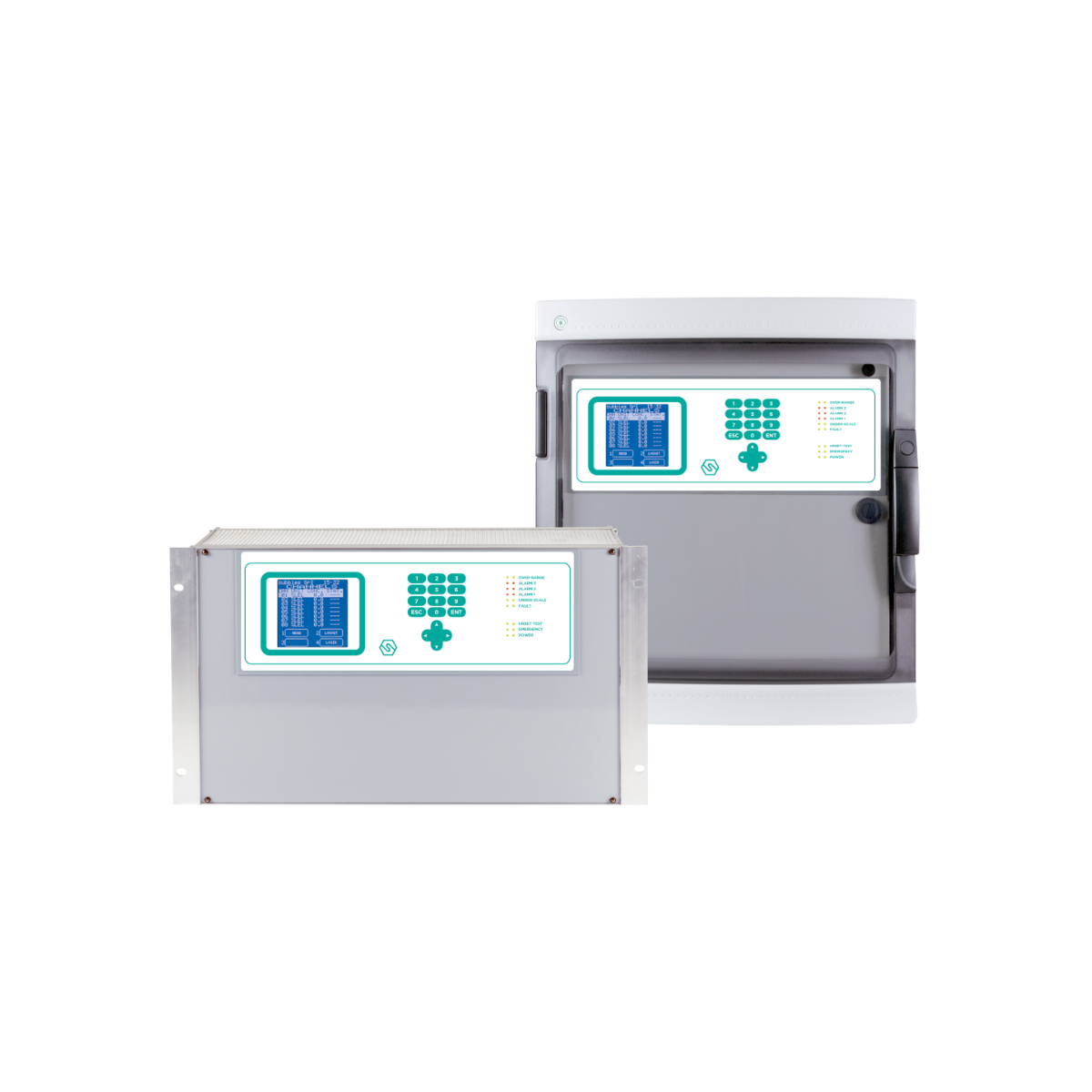

The Multiscan++S2 is available in an IP65 ABS wall-mount enclosure for use in harsh indoor industrial settings, as well as a 19″ 6U rack-mount version suited to control rooms and equipment cabinets. Enclosure options in ABS or aluminium provide mechanical robustness and resistance to industrial atmospheres. The box version incorporates an integral 27.6 Vdc power supply with selectable 110/220 Vac input, simplifying installation and reducing external power hardware. Space is provided for backup batteries (for example, two 12 V 7 Ah units) within the enclosure, improving resilience during mains outages. The rack version is intended for operation with an external 24 Vdc supply, offering flexibility where centralised power systems are preferred. Dedicated metal cabinets and IP55 plastic boxes are available to house remote interface and I/O cards, maintaining protection and consistency across distributed system elements.
Suited to typical plant conditions and global deployment
Operating over a temperature range from 0 to +50 °C and humidity from 15–85% RH non-condensing, the Crowcon Multiscan++S2 is aligned with typical indoor industrial environments. Its compact footprint (approximately 470 × 426 × 148 mm) assists with installation where panel or wall space is limited. As part of a complete fixed gas detection solution with compatible Sensitron and Crowcon detectors, and supported by multilingual datasheets and manuals, it provides a standardised control platform that can be replicated across global sites and a wide range of industrial sectors.
