Crowcon XgardIQ

Crowcon XgardIQ is designed for safety-critical installations where continuous gas monitoring, uptime and traceability are essential. Typical applications include oil and gas production, refining, chemical and petrochemical processing, and other industrial plants with hazardous zones. The detector combines advanced transmitter electronics with Crowcon sensor technologies to provide flexible coverage of flammable, toxic and oxygen risks using a single, consistent platform.

A 316 stainless steel enclosure with a high ingress protection rating resists dust, water and corrosive atmospheres, supporting long service life in exposed or offshore environments. High-level hazardous-area approvals and functional safety certification make the detector suitable for integration into high-risk industrial safety systems and safety instrumented functions.

The universal transmitter accepts electrochemical, infrared and pellistor sensors, including dedicated hydrogen sulphide variants, so the sensing technology can be matched to each gas and location. This approach allows sites to standardise on XgardIQ across flammable, toxic and oxygen monitoring points while choosing the most appropriate sensor type for each duty.

User-selectable full-scale ranges via the display menu allow each detector to be configured to the required measurement span without hardware changes. A dummy sensor module maintains the enclosure’s sealing when a sensor is not installed, supporting phased projects, commissioning in stages or temporary sensor removal while retaining environmental protection.

Remote sensor assemblies with different cable lengths allow the sensing head to be positioned where gas is most likely to accumulate, while keeping the transmitter at an accessible height. This improves the probability of gas detection and simplifies detector placement in congested pipe racks, ducts and other hard-to-reach locations.

Crowcon XgardIQ is engineered to simplify installation and commissioning in both new builds and upgrades. Three cable entries with certified removable plugs provide flexibility in cable routing and gland selection, while low power consumption suits large multi-point systems.

The auto-sense function automatically determines whether the control system expects a 4–20 mA current sink or source signal and configures the detector accordingly, reducing start-up errors and engineering time. The analogue 4–20 mA output includes configurable warning and fault signalling in line with industry practice, enabling straightforward connection to DCS, PLC or dedicated gas control panels.

For digital integration, the detector supports RS-485 Modbus RTU, with optional HART communication over the 4–20 mA loop and via local intrinsically safe test points for advanced diagnostics and configuration. Support for additional fieldbus options enables connection into a broad range of modern control architectures. Optional alarm and fault relays, each configurable for operating mode and delays, allow local or distributed alarming to be aligned with site safety philosophies.

Minimising time in hazardous areas is a key design objective. Non-intrusive calibration via the front-panel display and keypad allows a single technician to service the detector without opening the enclosure or de-energising the device. This helps reduce permit requirements, avoids work on live junction boxes and shortens maintenance windows.

Hot-swappable sensor modules can be replaced quickly and single-handedly, reducing downtime during routine service or when changing gas types. A comprehensive range of calibration and test accessories, including calibration caps, splash guards, flow adaptors and collector cones, supports both point and sampling applications and standardises maintenance procedures across a site.

Smart Bump and Speedy Bump test functions provide rapid verification of sensor operation, with automated reminders that help maintain compliance with site testing regimes. Calibration-due warnings, high measurement stability and low zero drift reduce unplanned interventions, supporting a lower total cost of ownership over the life of the installation.

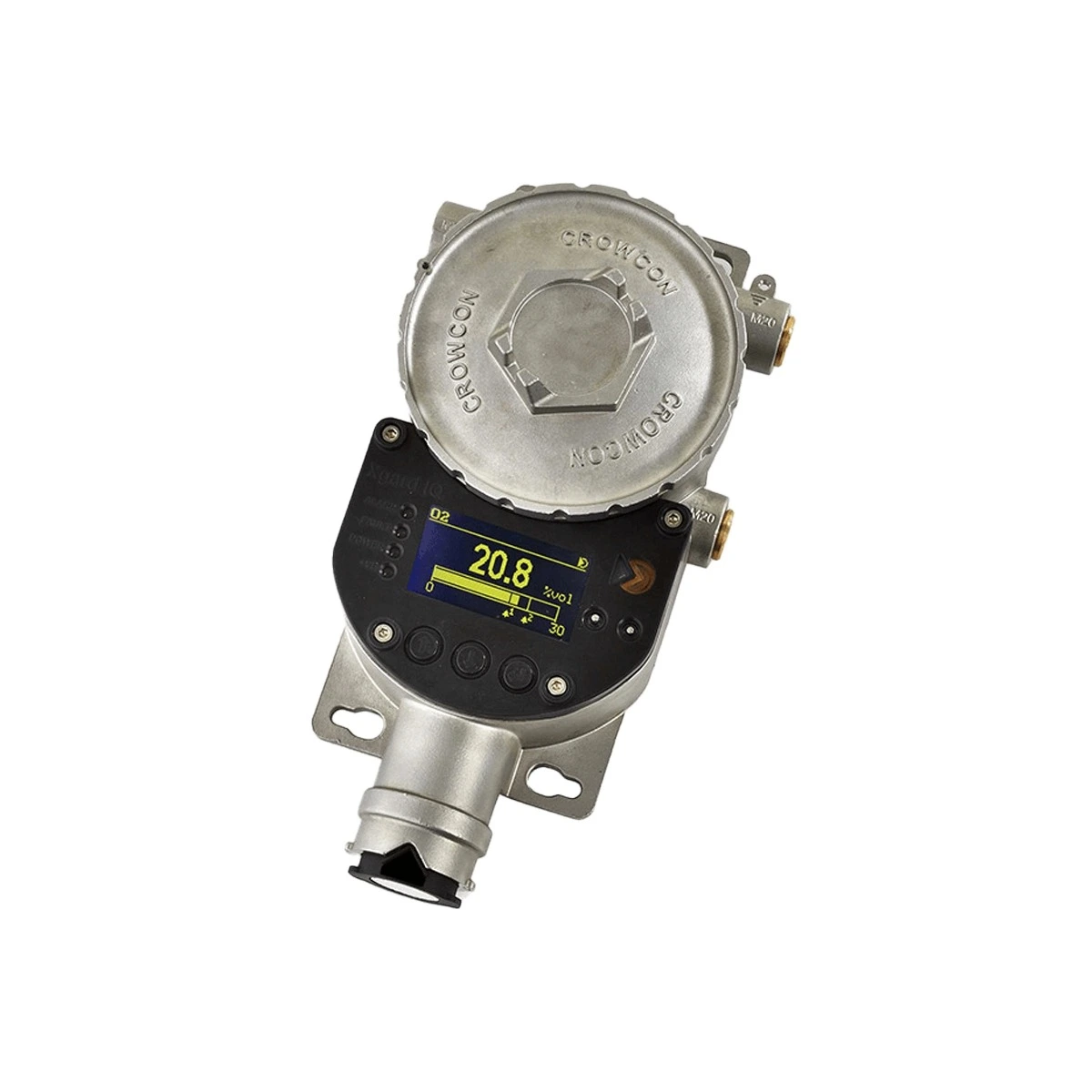

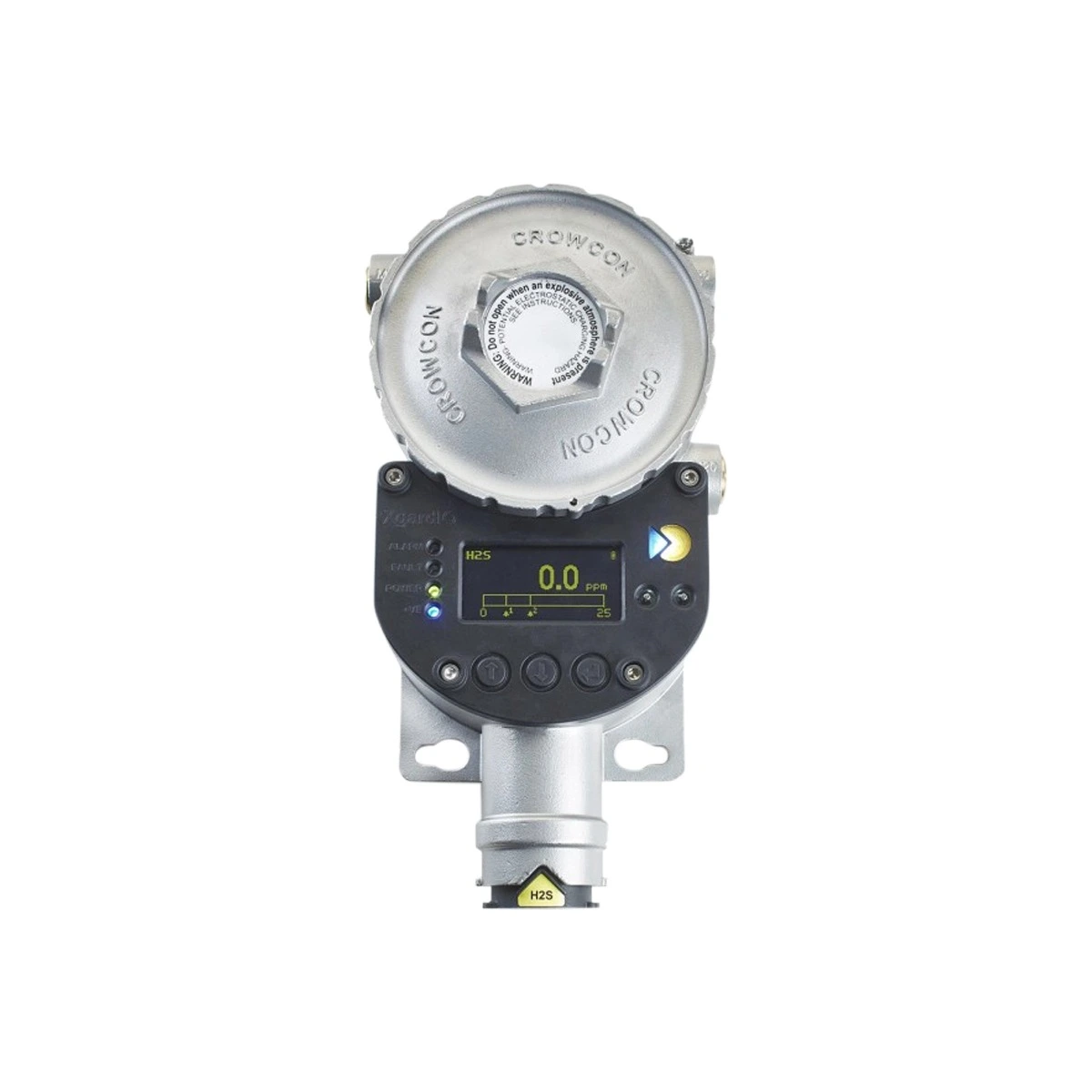

The bright OLED display presents gas readings and detector status clearly, even in dark or low-visibility conditions. Multicolour LEDs indicate normal operation, alarms and faults, while the dedicated Positive Safety (+Ve Safety) LED gives an at-a-glance confirmation that the detector is operating safely. This local indication supports fast, confident decision-making in noisy or complex plant environments.

An internal event log records alarm, fault and maintenance activity. Events can be viewed from the front panel or downloaded to a PC, providing a detailed audit trail for incident investigation, reporting and compliance documentation. Large memory capacity aids fault-finding and trend analysis, helping engineering teams identify recurring issues and optimise maintenance planning.

Crowcon XgardIQ integrates into broader fixed gas detection systems with a wide range of mounting and protective accessories, such as pipe-mounting brackets, duct kits and sunshades. These options allow a single detector type to be adapted across outdoor, indoor, ducted and sampling installations, reducing the variety of SKUs and simplifying engineering design, spares management and training.

The detector is supported by detailed datasheets, manuals, certificates and training materials to assist specification, installation and ongoing use. Many vendors offer installation, commissioning, calibration and servicing by certified engineers, along with technical support and training. Heavy-duty construction and broad applicability across oil and gas and other industrial sectors make Crowcon XgardIQ a robust, long-term platform for fixed gas safety management.
