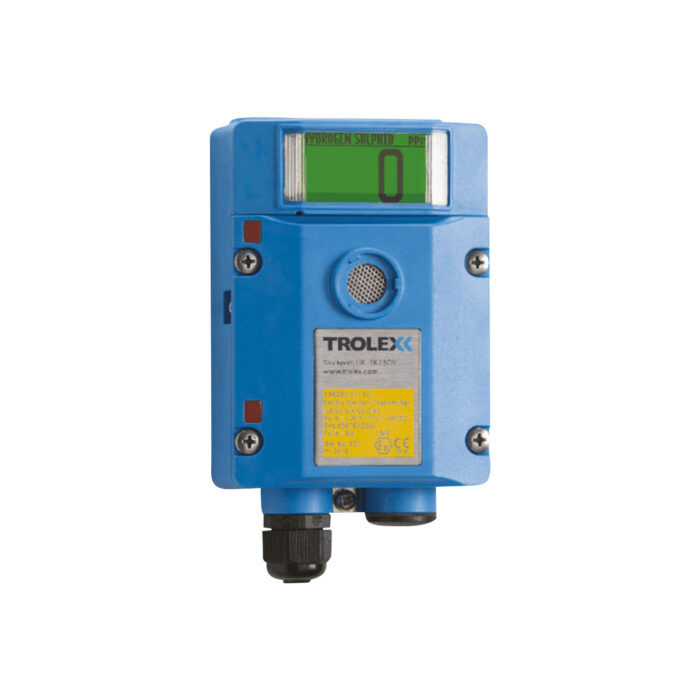

Trolex TX6351-2 Sentro 1

Trolex TX6351-2 Sentro 1 is purpose-built as a permanent, hard-wired gas detector for operations where uninterrupted monitoring is essential. It provides continuous measurement of toxic and flammable/combustible gases in environments subject to heavy vibration, dust, moisture and mechanical impact, such as mines, tunnels, underground storage areas, shale gas sites, process plants, utilities and oil and gas installations. As a fully hard-wired solution, it suits locations where wireless infrastructure is unavailable, prohibited or technically unsuitable, delivering dependable, always-on coverage in classified areas.

A high-strength, dual-wall moulded housing withstands impact and mechanical stress, while the dust and waterproof enclosure and dedicated gas port protection help maintain performance in dirty, wet and exposed conditions. This robustness supports long service life, reduces unplanned maintenance interventions and helps maintain detector availability in demanding industrial settings. Full EMC conformity further contributes to stable performance in electrically noisy environments with heavy plant and rotating machinery.

At the core of the Trolex TX6351-2 Sentro 1 is calibrated input sensing eModule technology designed for high sensitivity and accuracy. This enables reliable early warning of low-level leaks before they reach dangerous concentrations, supporting proactive intervention to protect personnel, equipment and infrastructure. Intelligent, standardised eModules allow the detector to monitor a broad selection of toxic and flammable gases, giving safety and engineering teams a single platform that can be deployed across varied plant areas with differing gas risks.

The detector automatically calculates and displays short-term exposure limit (STEL) and time-weighted average (TWA) values, helping operators and supervisors manage occupational exposure against regulatory and corporate limits. Two programmable alarm setpoints per channel allow gas alarm thresholds to be configured in line with site risk assessments, providing clear indication when gas levels approach or exceed defined limits.

Trolex TX6351-2 Sentro 1 uses a modular architecture to streamline servicing and preserve uptime. Real-time eModule exchange allows the sensing module or gas cell to be swapped within seconds for calibration, replacement or a change of gas type, without extended process interruptions. This approach supports future changes in process conditions or safety requirements, as the detector body can remain in place while only the sensing module is updated.

Automatic ZERO and SPAN calibration routines with on-screen guidance simplify field calibration and reduce the skill level required to perform routine checks. Integrated diagnostics provide clear status information, helping maintenance teams quickly identify issues, reduce unnecessary call-outs and minimise the potential for false alarms. Combined, these features support lean maintenance strategies and efficient operation across multi-location sites.

A large backlit LCD display presents real-time gas concentrations, alarm status and diagnostic information in a clear, accessible format. This ensures readability in low-light underground workings, tunnels and poorly lit industrial areas, supporting both local personnel and control room operators in making timely, informed decisions during normal operation and alarm events.

An optional version with integrated high-intensity audio/visual alarms extends visibility to wider work areas where local indication alone may be insufficient. A periodic flashing confidence indicator on this model shows that the detector is functioning, enabling rapid visual confirmation during routine inspections and walk-throughs.

The Trolex TX6351-2 Sentro 1 is designed for straightforward installation and integration into existing or new fixed gas detection systems. An easy-access terminal chamber and large, vibration-secure terminals support the use of heavy-duty industrial cables commonly found in mines, tunnels and large plants. Multiple analogue outputs, including low-voltage and 4–20 mA signals, enable simple connection to standard control loops, local indicators and third-party monitoring equipment.

Dual relay contacts can be assigned to drive local alarms, ventilation fans or safety interlocks directly from the detector, supporting fail-safe responses to rising gas levels. RS485 addressable Modbus communications provide digital connectivity for networking multiple detectors, enabling centralised data collection, remote monitoring and integration with PLC, DCS and wider safety systems. This combination makes the detector suitable for mixed analogue/digital architectures and phased system upgrades.

Engineered by a specialist gas detection manufacturer with a strong presence in mining and heavy industry, Trolex TX6351-2 Sentro 1 serves as a universal platform for toxic and flammable gas monitoring across diverse applications. Its ability to support multiple gas types and environmental conditions within a single detector design simplifies standardisation across underground workings, transportation routes, storage facilities and above-ground plant.

Using a common eModule family and consistent user interface can reduce spares inventory, streamline training and make it easier to redeploy equipment as site conditions evolve. Designed for continuous, real-time monitoring rather than spot checks, the detector underpins early warning gas alarm systems that protect workers and assets. Supported by third-party safety and performance certifications and comprehensive technical documentation, it offers a reliable, long-term fixed installation solution for operators who require robust, high-integrity gas detection in high-risk environments.
