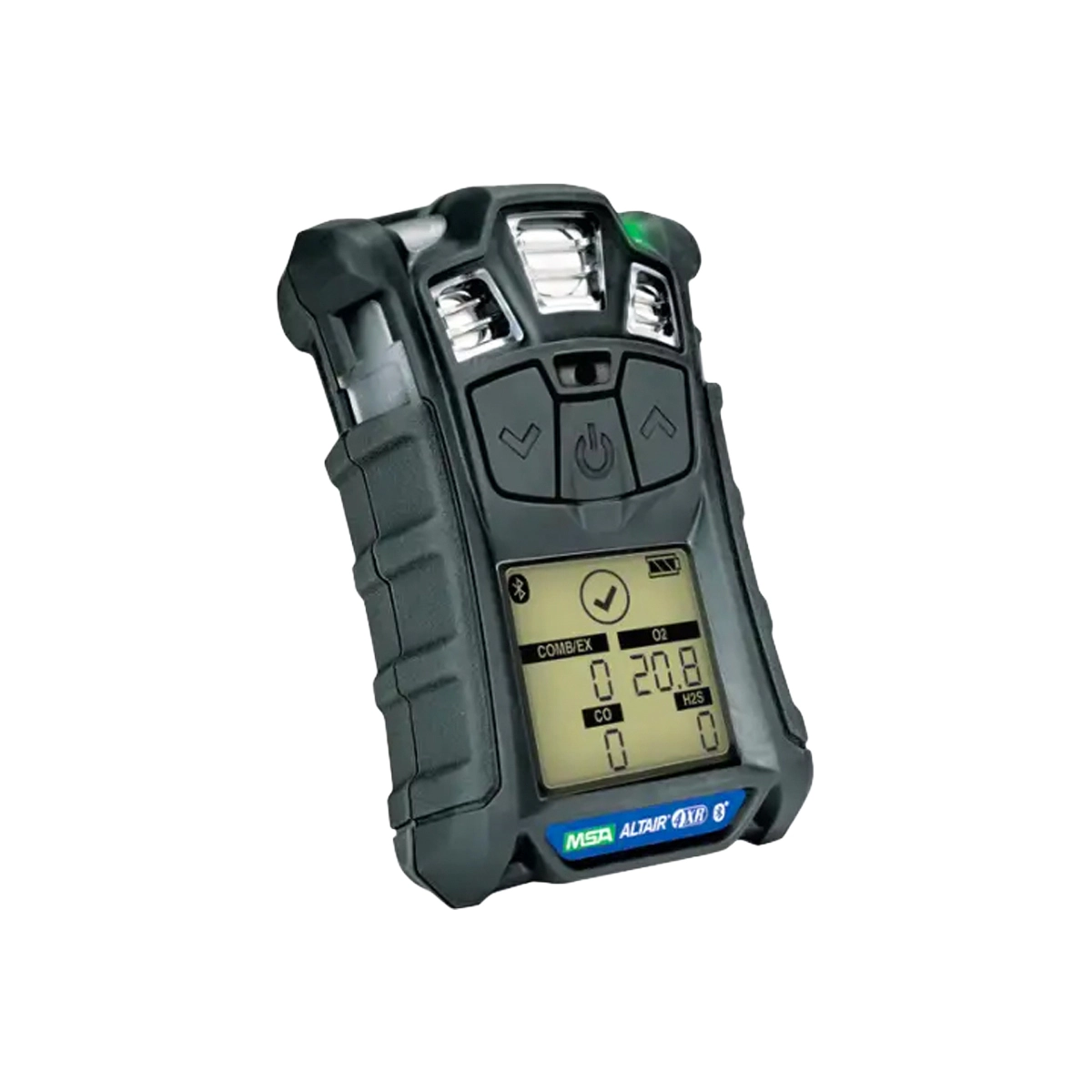

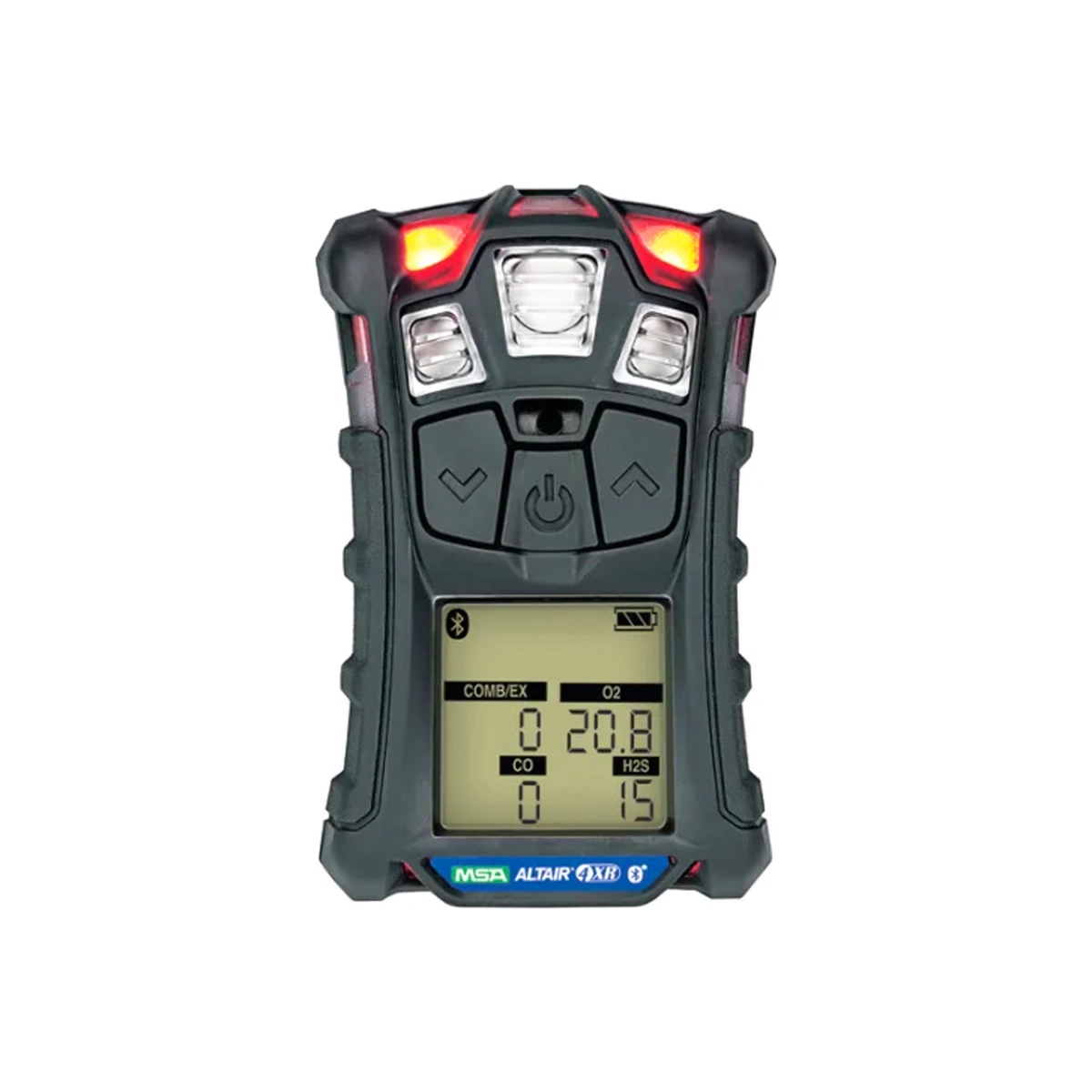

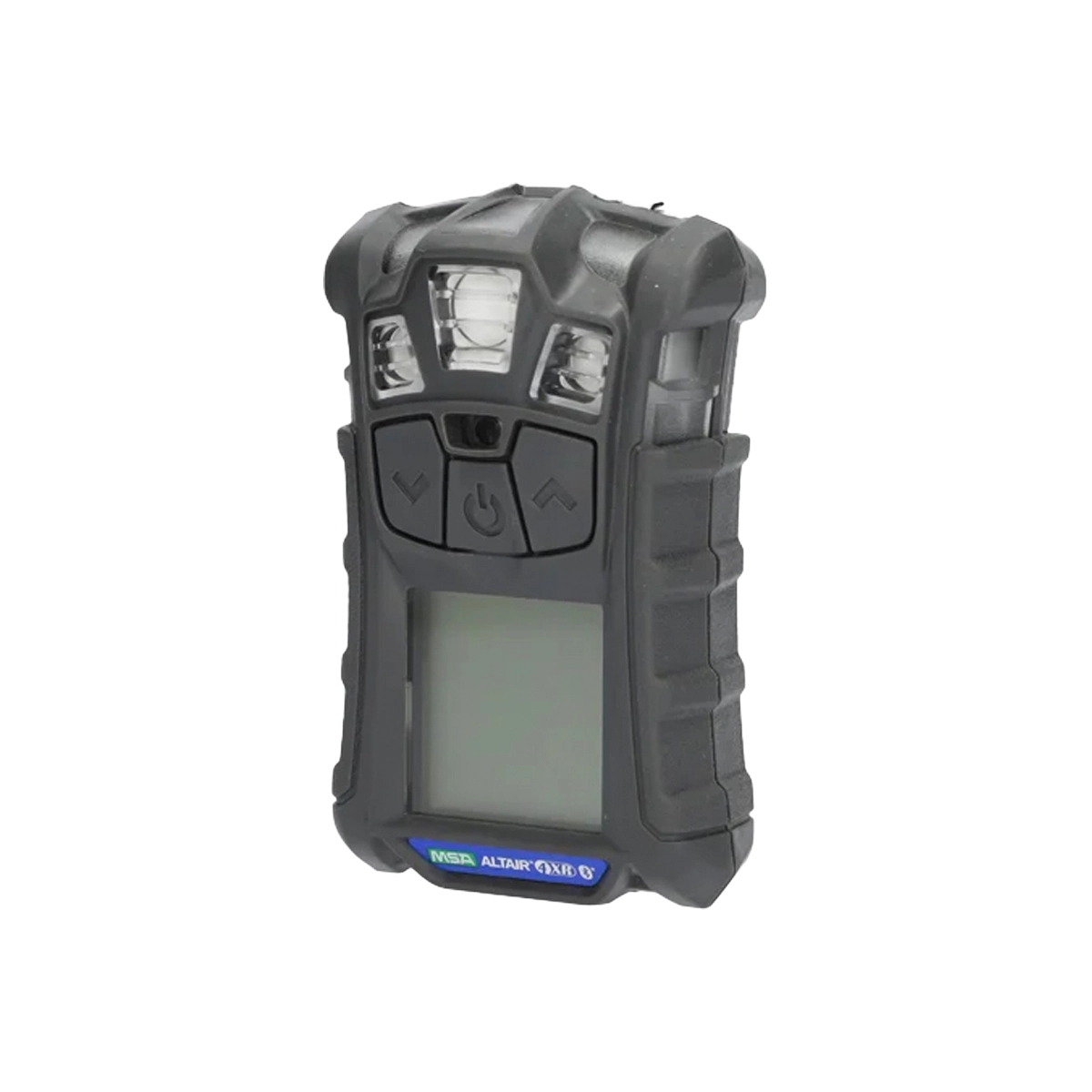

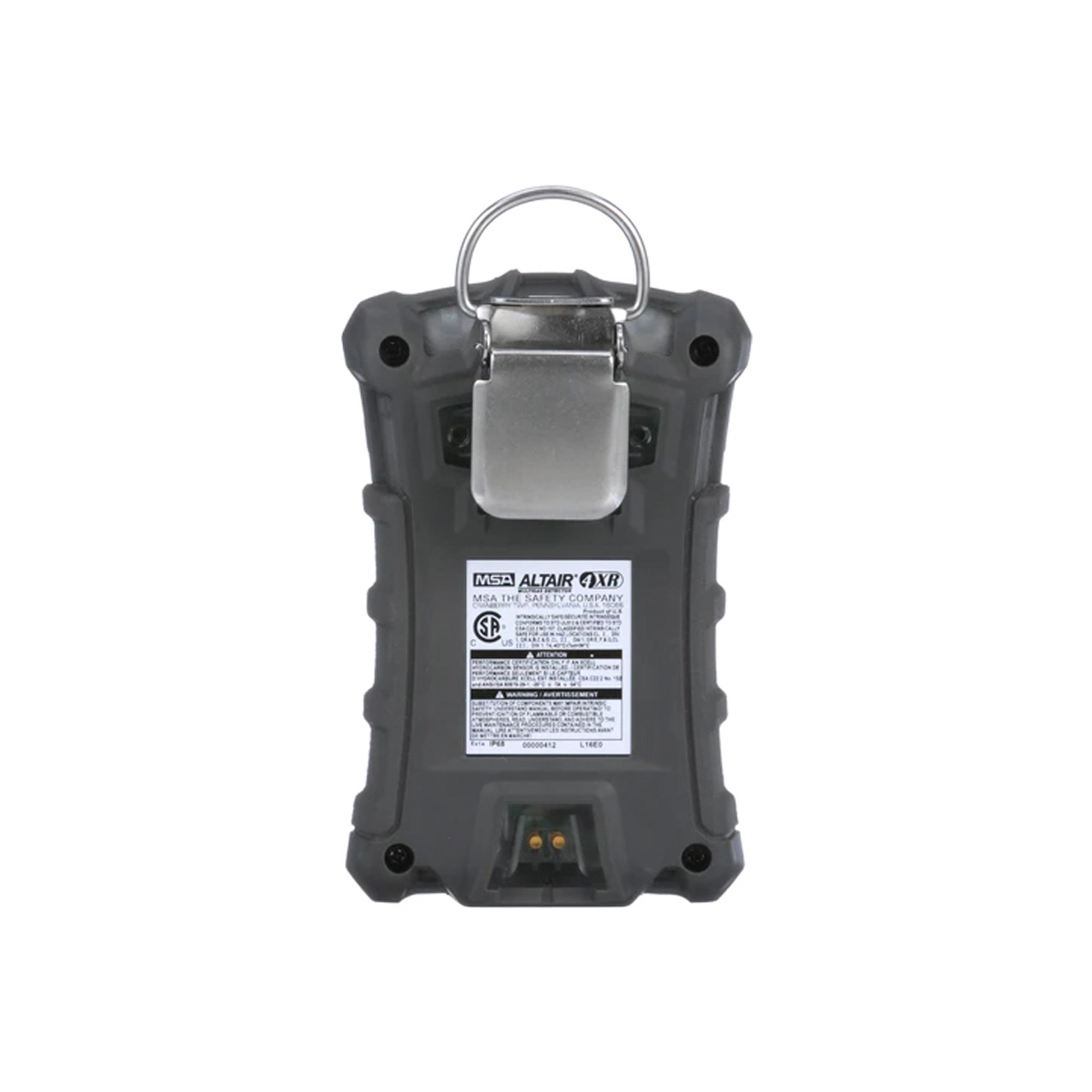

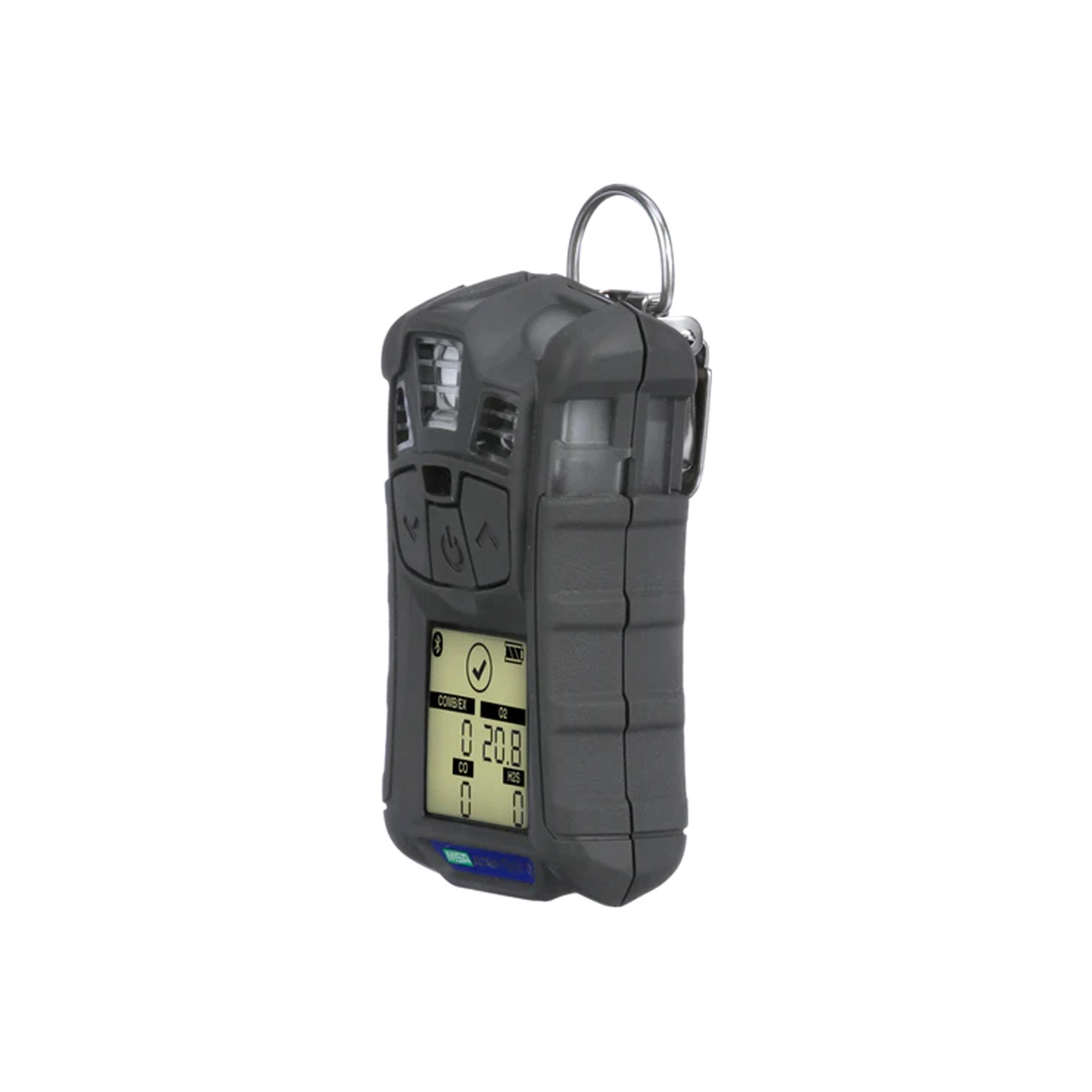

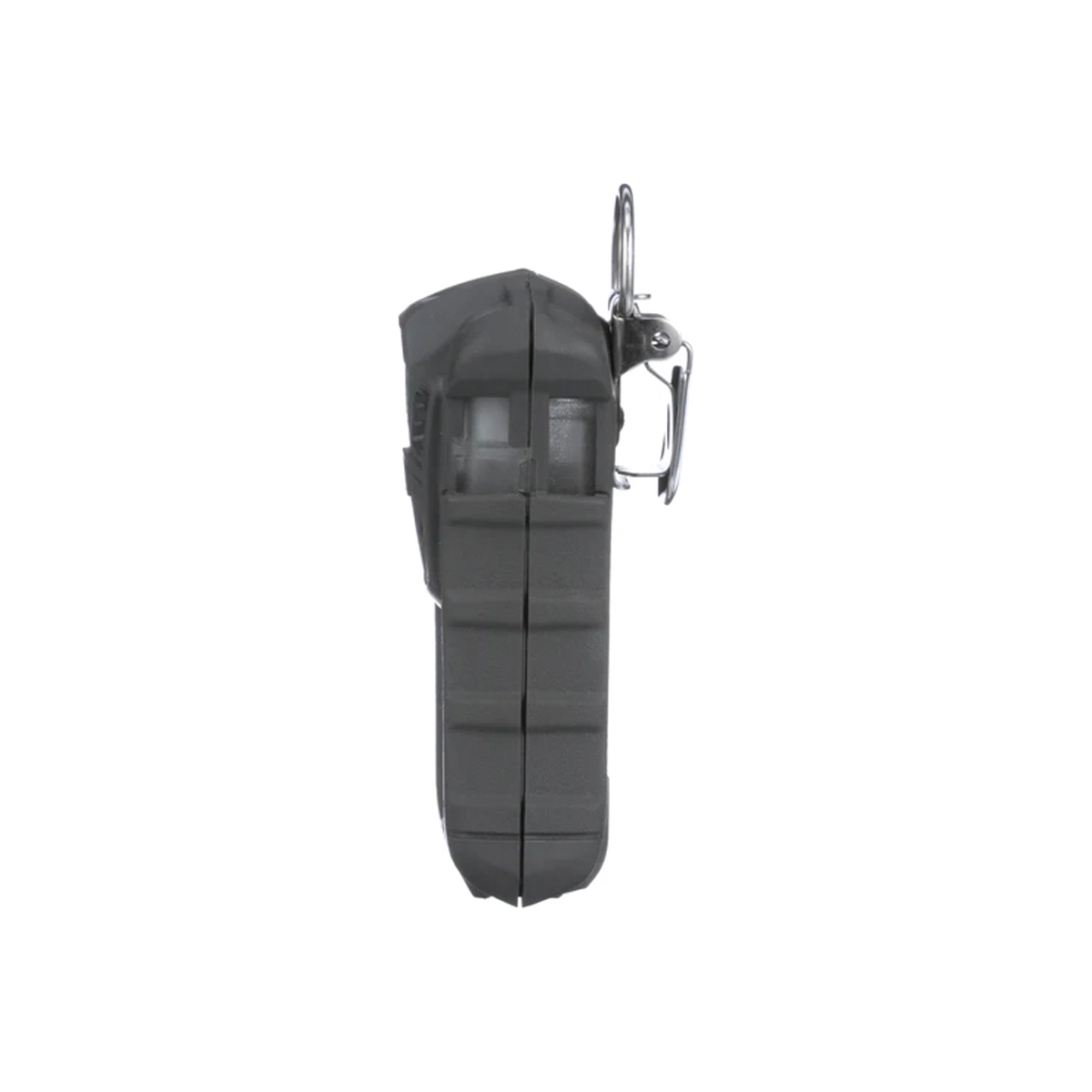

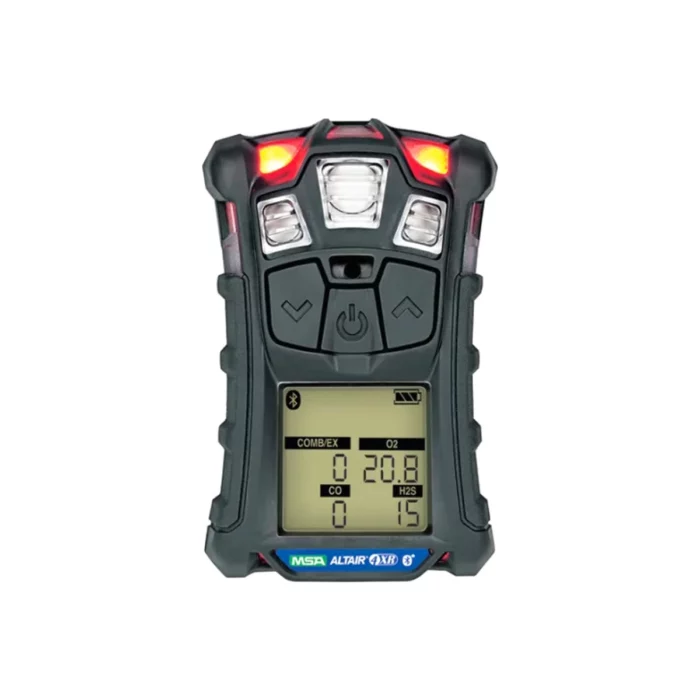

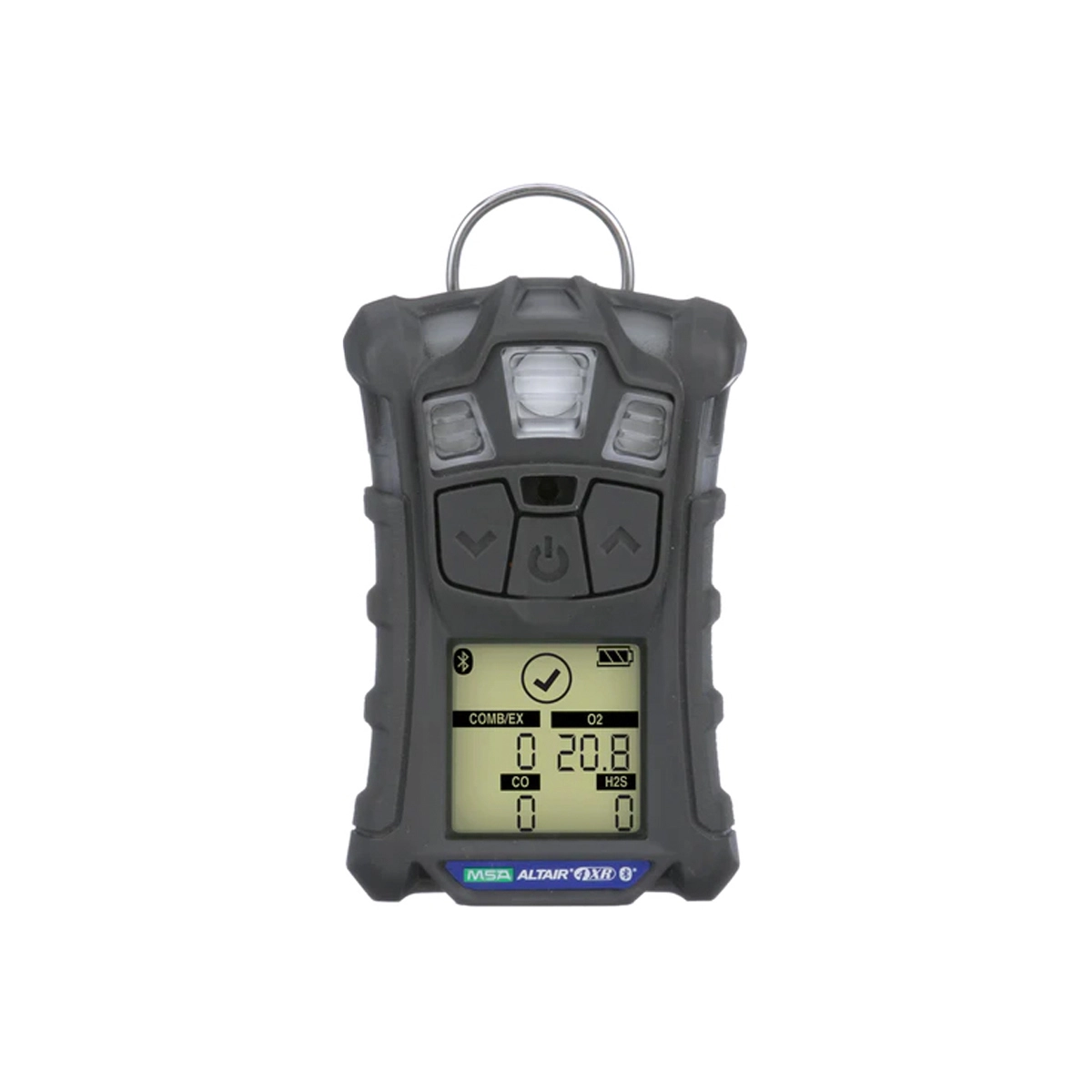

MSA ALTAIR 4XR

The MSA ALTAIR 4XR uses MSA XCell® sensor technology to detect gas up to two times faster than typical industry devices, giving workers valuable extra time to react around process equipment, during confined space entry or in emergency response scenarios. Standard four-gas monitoring of combustible gases (LEL), oxygen (O₂), carbon monoxide (CO) and hydrogen sulphide (H₂S) addresses common day-to-day risks, while additional toxic sensor combinations such as CO/H₂S, CO/H₂-resistant, CO/NO₂ and SO₂/H₂S-LC allow each detector to be matched to site-specific hazards.

The detector is designed to tolerate harsh industrial contaminants and repeated mechanical shock, with testing demonstrating survival of multiple 4 ft (1.2 m) drops and an incidental 25 ft (7.5 m) drop onto concrete. An IP68-rated enclosure provides complete dust protection and reliable operation after submersion in 2 m of water for up to 1 hour, making the instrument well suited to wet, dirty and washdown-prone locations such as construction sites, mines and heavy industrial plants. A wide operating temperature range from –40 °C to +60 °C supports deployment in both extreme cold and hot climates.

The ALTAIR 4XR is engineered for low total cost of ownership. Long-life XCell sensors are supported by a 4-year warranty on both the instrument and sensors, reducing replacement frequency and helping plan fleet budgets more accurately. Bump tests and calibrations are designed to use roughly half the test gas and take about half the time of many typical devices, cutting consumable usage and reducing time spent on routine checks.

A dedicated Bump LED and clear on-screen checkmark provide immediate confirmation that bump tests and calibrations have passed, supporting straightforward compliance workflows. When paired with the MSA GALAXY® GX2 Automated Test System, bump testing and calibration can be automated and scheduled at defined times of day, helping standardise compliance across shifts and locations. More than 50 hours of datalogging and over 500 event logs provide a detailed record of gas exposures, alarms and tests, supporting regulatory inspections and post-incident investigation.

Connected versions of the MSA ALTAIR 4XR incorporate Bluetooth connectivity and an integrated RFID chip to streamline pairing with mobile devices using the ALTAIR Connect app. This connection enables real-time data sharing, remote configuration and quick updates to alarm settings and parameters from an Android smartphone, which can help reduce the need to handle each detector individually.

Through the app, supervisors can receive event notifications via text message when alarms occur, and can configure notification groups so critical information reaches the right contacts quickly. The ability to email calibration details and receive compliance reminders supports structured maintenance routines. When multiple detectors are wirelessly connected, safety managers gain better incident awareness, with visibility of alarm activity across teams engaged in tasks such as confined space entry, plant turnarounds, welding operations and emergency response.

The ALTAIR 4XR uses audible, visual and vibrating alarms to warn of hazardous gas levels, helping ensure alerts are recognised in high-noise or low-visibility environments. High-visibility LEDs and clear on-screen icons make it easy to verify instrument status at a glance. Automatic start-up self-tests check sensor, alarm and indicator functionality at power-up, helping to ensure the detector is ready for use.

MotionAlert automatically activates an alarm if the user becomes immobile, assisting in highlighting potential man-down situations to nearby colleagues. The InstantAlert feature allows the user to manually trigger an alarm to signal a perceived hazard even before gas levels reach alarm thresholds. Together, these functions support faster on-scene awareness and improved outcomes in high-risk operations, particularly for lone workers and small teams.

The MSA ALTAIR 4XR has a compact, lightweight design (approximately 4.4″ x 3.0″ x 1.4″ and 228 g), supporting comfortable all-day wear for personnel in utilities, fire service, mining, construction, general industry and oil and gas. A rechargeable Li-polymer battery provides around 24 hours of runtime with a recharge time of under 4 hours, giving reliable full-shift coverage and rapid turnaround between uses. An integrated low-battery alarm with flashing LEDs, on-screen icon, audible warning and “LOW BATT” text helps prevent unexpected shutdowns.

A simple user interface, supported by quick-start leaflets, data sheets, quick start guides and interactive product simulators, reduces training demand and helps new users become confident quickly. Confined-space training and additional support materials from MSA and partners assist in deploying the detector in critical applications. Multi-language and region-specific documentation supports standardisation across international sites and helps meet local regulatory expectations.

The ALTAIR 4XR supports configurable measurement ranges for LEL, oxygen, carbon monoxide and hydrogen sulphide typical of industrial requirements. Versatile toxic sensor options, including H₂-resistant CO sensors and low-concentration H₂S variants, allow the same detector platform to be used in environments with hydrogen interference or low-level sulphide risks. This flexibility simplifies fleet management, as different areas of a facility or different sites can be equipped using a common instrument family tailored with appropriate sensor combinations.

Housing options include charcoal grey and glow-in-the-dark versions to aid visibility, particularly in low-light conditions. The charcoal-housed variant is commonly supplied as a kit with charging cradle and accessories, supporting rapid rollout to new workgroups. Compatibility with the MSA ALTAIR Pump Probe enables pumped sampling for confined spaces and remote points, extending the detector’s role beyond simple diffusion-based personal monitoring.

Extensive global approvals (including suitability for hazardous areas in multiple regions) make the MSA ALTAIR 4XR appropriate for use in many classified industrial environments worldwide. Its combination of rugged construction, long-life XCell sensors and proven impact and ingress resistance makes it well suited to hire fleets and long-term direct purchase, where uptime and durability are critical commercial factors.

The ALTAIR 4XR supersedes the earlier ALTAIR 4X model while maintaining compatibility with existing MSA GALAXY GX2 setups and accessories, helping operators protect previous investment in test systems, chargers and ancillary hardware. Available for outright purchase or short- and long-term hire from specialist providers, the detector offers a robust, connected and cost-efficient solution for teams requiring dependable four-gas protection in high-risk industrial environments.
