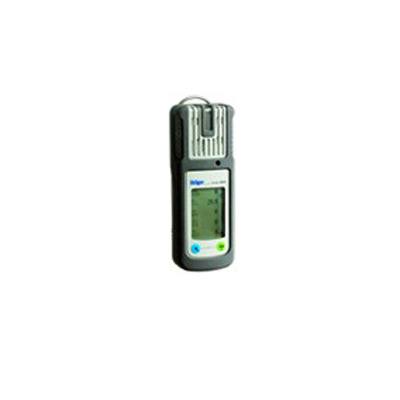

Drager X-am 5000

Key Features:

• Ergonomic mobile phone design -Reduced to its essentials, the two button control panel and easy to follow menu system allow for intuitive use
• Durable electrochemical sensor technology
• Flexible and adaptable sensor exchange. It is easy to exchange, upgrade or calibrate the sensors to other gases. The ability to customise the Dräger X-am 5000’s sensors makes more applications possible, including rental equipment.

Detector Specifications:

• Dimensions (W x H x D) 47 x 129 x 31 mm (1.85″ x 5.08″ x 1.22″)
• Weight approx. 220 g, (7.8 oz.)
• Ambient conditions Temperature -20 to +50 °C, -4 to +122 °F
• Innovate Ex sensor with full range functionality
• Robust and water-tight.The Dräger X-am 5000 is tough: water and dust-resistant according to IP 67, the detector remains fully functional even after falling into water. The integrated rubber protection and shock-proof sensors ensure additional resistance to impactand vibration.Moreover, the Dräger X-am 5000 is insensitive to electromagnetic interference
• External pump.The optional external pump, which operates with a flexible hose up to 20 m long, makes it possible to use the detector for pre-entry measurements for tanks,shafts, etc. The pump starts automatically when the detector is inserted.
• Flexible power supply.The Dräger X-am 5000 can be used with either the standard alkaline or rechargeable NIMH batteries. In addition, it can be fitted with a T4 battery that can be charged while still inside the instrument

•   Drager Xam 5000-Datasheet.pdf
•   PIX-am5000en.pdf
