Description
Crowcon Clip Docking Station centralises bump testing, calibration and data logging for Crowcon Clip SGD fleets in demanding industrial environments.

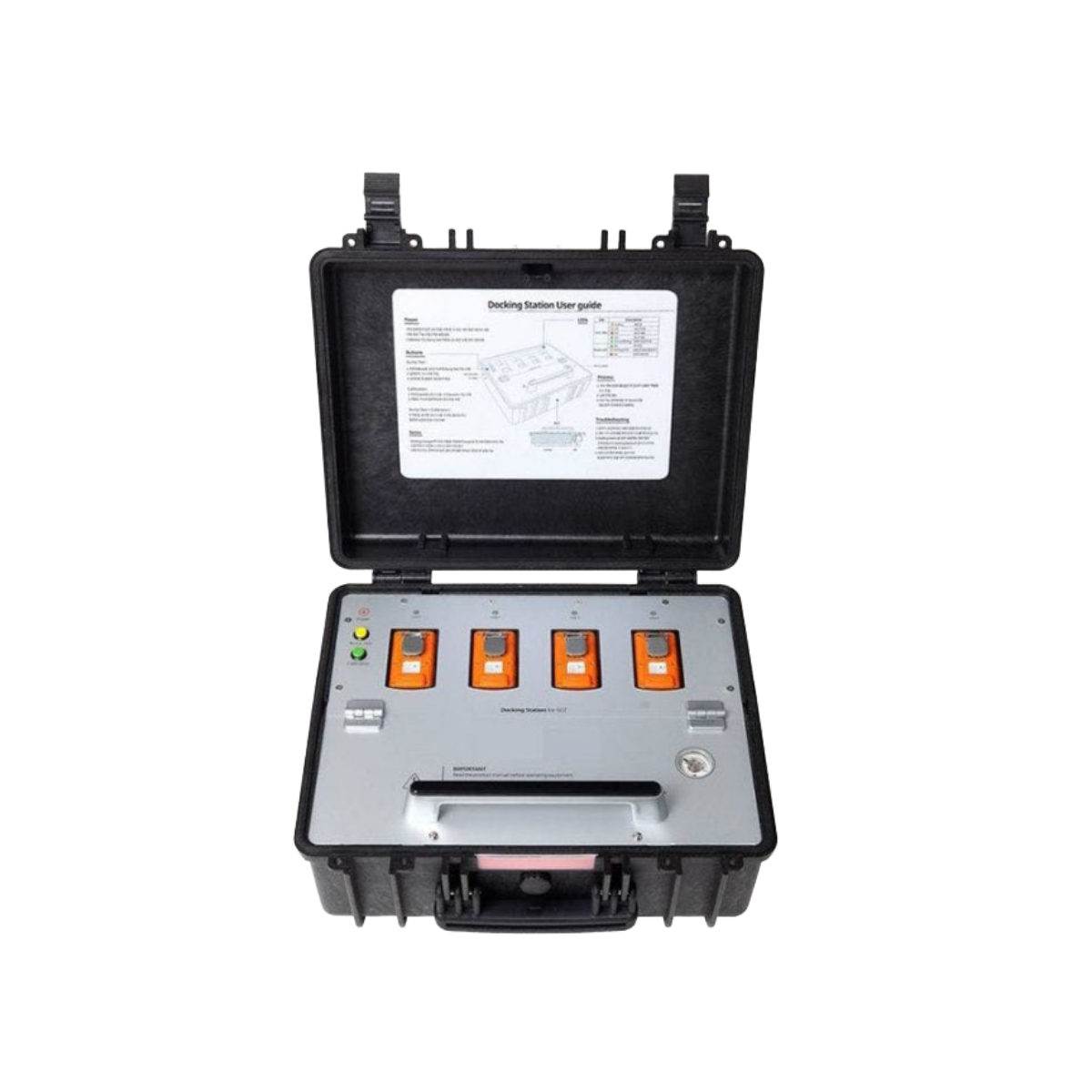

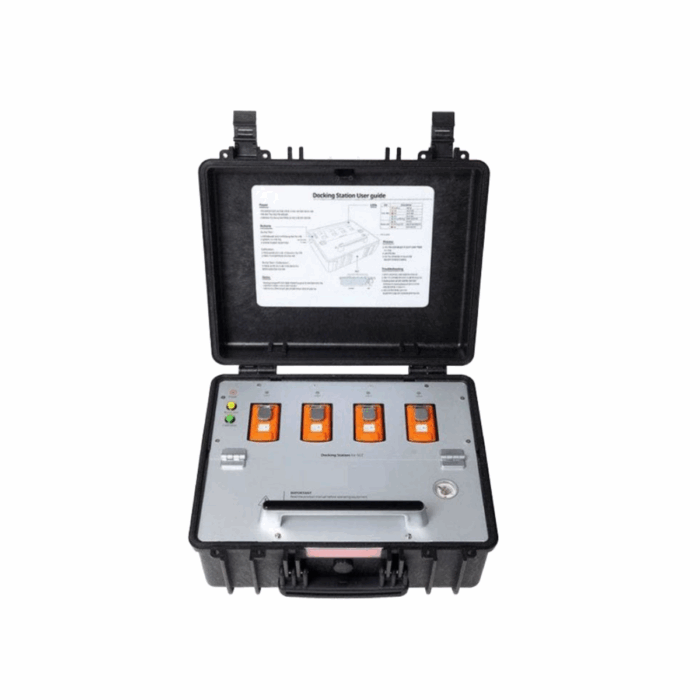

The Crowcon Clip Docking Station is a compact, multi-unit station for managing Crowcon Clip SGD personal single-gas detectors. It combines bump testing, calibration control and automated data capture in one rugged, self-contained unit, helping safety and fleet managers keep detectors compliant, traceable and ready for each shift. With capacity for up to four detectors at once, integrated gas supply, controlled gas usage and cordless operation, it supports rapid, routine testing across large deployments without relying on external calibration facilities.
AT A GLANCE
- Multi-detector fleet hub: Holds and tests up to four Crowcon Clip SGD units simultaneously for fast, routine pre-use checks.
- On-site bump test and calibration: Performs bump tests and calibration on site to maintain detector accuracy and reduce downtime.
- Automated records and traceability: Logs all tests and events to USB storage for easy reporting, audits and asset management.
- Rugged, self-contained design: Integrated gas cylinder, gas usage controller and rechargeable battery suit vehicles and mobile industrial operations.
For detailed technical data, consult the Specifications tab.
Overview of Crowcon Clip Docking Station
Streamlined Fleet Management for Crowcon Clip SGD Detectors
The Crowcon Clip Docking Station is designed as a centralised accessory for Crowcon Clip SGD personal single-gas detectors, giving fleet and safety managers structured control over performance, configuration and traceability. The station accommodates and tests up to four detectors at once, allowing larger fleets to be processed quickly without handling units individually. This reduces bottlenecks at the start of shifts and supports consistent pre-use verification where many users rely on single-gas monitors.
The multi-unit layout suits environments such as industrial plants, utilities and other high-risk workplaces where Crowcon Clip SGD detectors are widely deployed. Operators can dock detectors for quick checks, while supervisors maintain oversight of detector status and event histories across multiple teams and locations.
On-Site Bump Testing and Calibration
The Crowcon Clip Docking Station supports both routine bump testing and full calibration procedures. Bump tests confirm that detector sensors respond correctly to known gas concentrations, while calibration routines help keep instruments operating within specified performance tolerances. Locating these capabilities close to the point of use reduces reliance on external calibration facilities and helps minimise downtime associated with sending detectors away for service.
An integrated gas usage controller optimises the volume of gas used during bump testing. This is particularly valuable for busy sites where many detectors must be checked frequently, as it reduces test gas consumption and associated operating costs. With its own gas cylinder housed within the docking station, the system remains self-contained, simplifying setup and avoiding the need for permanent laboratory infrastructure.
Rugged, Self-Contained Operation for Mobile and Multi-Site Use
The docking station is built into a rugged hard casing suitable for tough industrial environments and frequent movement between locations. This robust construction makes it practical for use in vehicles, temporary work areas and multi-site operations where equipment is regularly transported.
Power is provided by a rechargeable battery, enabling cordless operation where mains power is unavailable or inconvenient. The battery supports up to 1000 bump tests between charges, helping maintain throughput during busy periods. External power options can also be used where a permanent or in-vehicle installation is preferred, providing flexibility across different operating scenarios.
Centralised Data, Traceability and Compliance Control
A key function of the Crowcon Clip Docking Station is comprehensive event and configuration logging. The station monitors a wide range of test parameters for each connected detector, recording bump test results, calibration events and relevant detector settings. This generates a detailed event log for every instrument, supporting internal safety policies and providing clear evidence of due diligence in gas detection management.
All bump test, calibration and event data is stored on a USB stick or drive. Data can be transferred quickly to a PC for reporting, analysis and long-term archiving, significantly reducing manual record-keeping effort. Centralised histories for each detector make it easier to support audits, demonstrate compliance and review performance over time.
Configuration Control and Asset Oversight
Beyond functional testing, the Crowcon Clip Docking Station assists with configuration management across Crowcon Clip SGD fleets. It monitors and stores detector settings, allowing configuration updates and parameter changes to be applied across many units without returning them to a central workshop. This supports alignment with evolving internal procedures and simplifies control of site-wide detector configurations.
Event management functions help track detector usage and identify units that fail tests so they can be removed from service promptly. This targeted visibility supports proactive maintenance, improves overall fleet reliability and reduces the risk of unfit detectors remaining in circulation.
Optimised for Routine, High-Throughput Workflows
The Crowcon Clip Docking Station consolidates multiple testing and management tasks into a compact, easy-to-use solution designed for repetitive workflows. A straightforward interface enables quick initiation of bump tests and calibrations with minimal training, while the ability to process several detectors at once cuts queue times and improves detector availability.
As a practical addition to any Crowcon Clip SGD deployment, the docking station supports rapid pre-use checks, reduces manual administration and contributes to lower lifecycle costs. By combining on-site testing, configuration control and automated logging, it helps ensure Crowcon Clip SGD detectors remain ready for service and aligned with organisational safety requirements.
