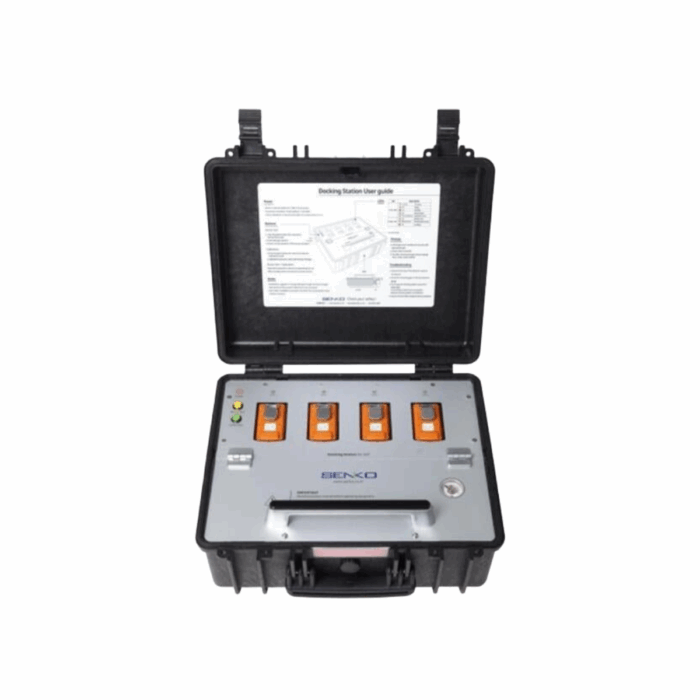

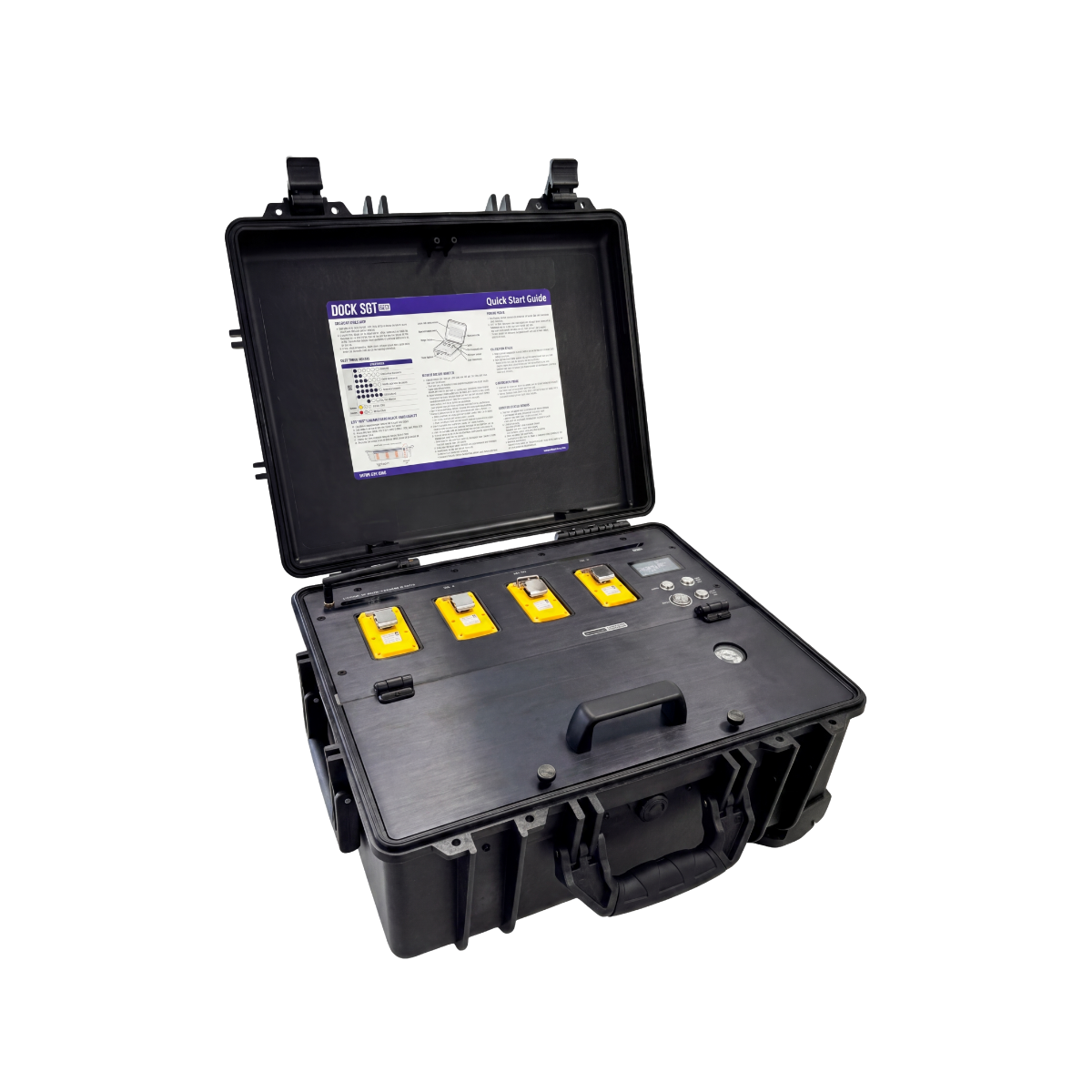

Senko SGT Docking Station

The Senko SGT Docking Station brings core gas detector maintenance tasks into one compact unit, designed specifically for Senko SGT single gas detectors. It performs zero and span calibrations and fully automated bump tests on up to four devices at once, significantly reducing the labour and time required to keep detectors in service. During bump tests, the station automatically checks gas sensor response and alarm operation, helping ensure that every instrument continues to respond correctly to hazardous gas conditions.

Both full calibration and simple functional bump test routines are supported, allowing sites to align maintenance schedules with their policies and risk profile. Once an automated sequence is started, the docking station manages gas delivery, test timing, sensor checks and result logging, allowing technicians to focus on other tasks while maintaining a consistent, documented process.

Automation within the Senko SGT Docking Station is designed to reduce the hidden costs of manual detector upkeep. Standardised test cycles shorten routine maintenance windows and help minimise disruption to operations. Intelligent control of calibration gas usage helps extend cylinder life, directly supporting lower consumable spend and more predictable budgeting.

As a self-contained solution that can house a multi-gas cylinder (purchased separately) and use standard 58 L calibration gas cylinders for compatible SGT models, the station supports fully automated maintenance with limited user intervention. This simplifies gas management across sites and supports high-throughput calibration and bump testing for larger fleets.

The docking station is housed in a rugged, durable case suited to industrial and hazardous environments where fixed and portable gas monitoring is critical. Its compact, relatively light design allows easy placement on desks, workbenches or central maintenance hubs, while also presenting SGT instruments in an organised, professional layout.

The operating temperature range is suited to typical plant, workshop and utility locations. An integrated ventilation or gas exhaust system is provided to safely remove residual calibration gases, supporting safe use in enclosed maintenance areas when performing frequent bump tests or calibrations.

A rechargeable lithium-ion battery enables portable operation of the Senko SGT Docking Station away from fixed power sources. A full charge supports up to around 1,000 bump tests, making it suitable for intensive maintenance campaigns or periodic checks at remote locations. Where mains or vehicle power is available, the unit can also be operated via an external 12 V DC charging adaptor, giving flexibility for both permanent installations and mobile workshops.

The station is designed for straightforward operation, with automated sequences that help reduce training requirements and minimise operator error. A dedicated Power LED indicates system status, while individual multi-colour Unit LEDs show pass/fail results and current operating status for each docked detector.

This LED-based feedback provides clear confirmation of calibration and bump test completion or failure, enabling fast decision-making and immediate follow-up actions. Technicians can quickly identify any SGT units needing attention, supporting reliable gas monitoring performance across large or distributed fleets.

The Senko SGT Docking Station offers extensive data management capabilities for sites requiring documented test records. It stores detailed bump and calibration logs as well as individual detector event logs, building a complete history of tests, alarms and configuration activity for each SGT unit.

An 8 GB removable USB memory is supplied as standard, with capacity for approximately up to 10 million tests. Logs and event data can be downloaded via USB to a PC for analysis, archiving and reporting, using a standard USB interface compatible with most PC systems. This level of traceability supports regulatory, customer and internal audit requirements by demonstrating that gas detectors are tested regularly and correctly.

In addition to testing, the docking station acts as a central hub for configuring SGT detectors. Using PC software via USB connection or via an IR communication link, users can adjust alarm setpoints and other configuration parameters directly from the station, helping standardise settings across an entire fleet.

The dock stores firmware and configuration data alongside test records to provide a complete device history. It can automatically upgrade firmware on connected SGT units and update its own firmware, helping maintain alignment with the latest Senko enhancements without complex procedures or individual instrument handling.

Consistent, repeatable and automated test procedures reduce the likelihood of human error in manual checks and help prevent missed tests. By centralising the management of multiple SGT detectors on one platform, the Senko SGT Docking Station supports improved oversight and control for safety managers, particularly in large plants or multi-site operations.

Regular, documented testing improves confidence that detectors monitoring carbon monoxide, hydrogen sulphide and oxygen (where fitted) are functioning correctly, directly contributing to worker safety. CE approval and a two-year docking station warranty underscore its suitability for safety-critical applications, while integration into the wider Senko accessory ecosystem supports deployment in a range of industrial and hazardous environments.

Designed specifically for Senko SGT single gas detectors, the docking station is suitable for industrial and hazardous work environments where continuous gas monitoring is essential. It supports both full calibration and simple bump test regimes, allowing organisations to align maintenance with site policies and regulatory obligations.

Optional accessories, including adapters, inlet and outlet connectors, screws, straps and additional USB sticks, enable the platform to be adapted to local installation practices and workflows. Overall, the Senko SGT Docking Station provides a robust and automated maintenance solution that consolidates testing, calibration, configuration and logging into a single, controlled and highly traceable process.
