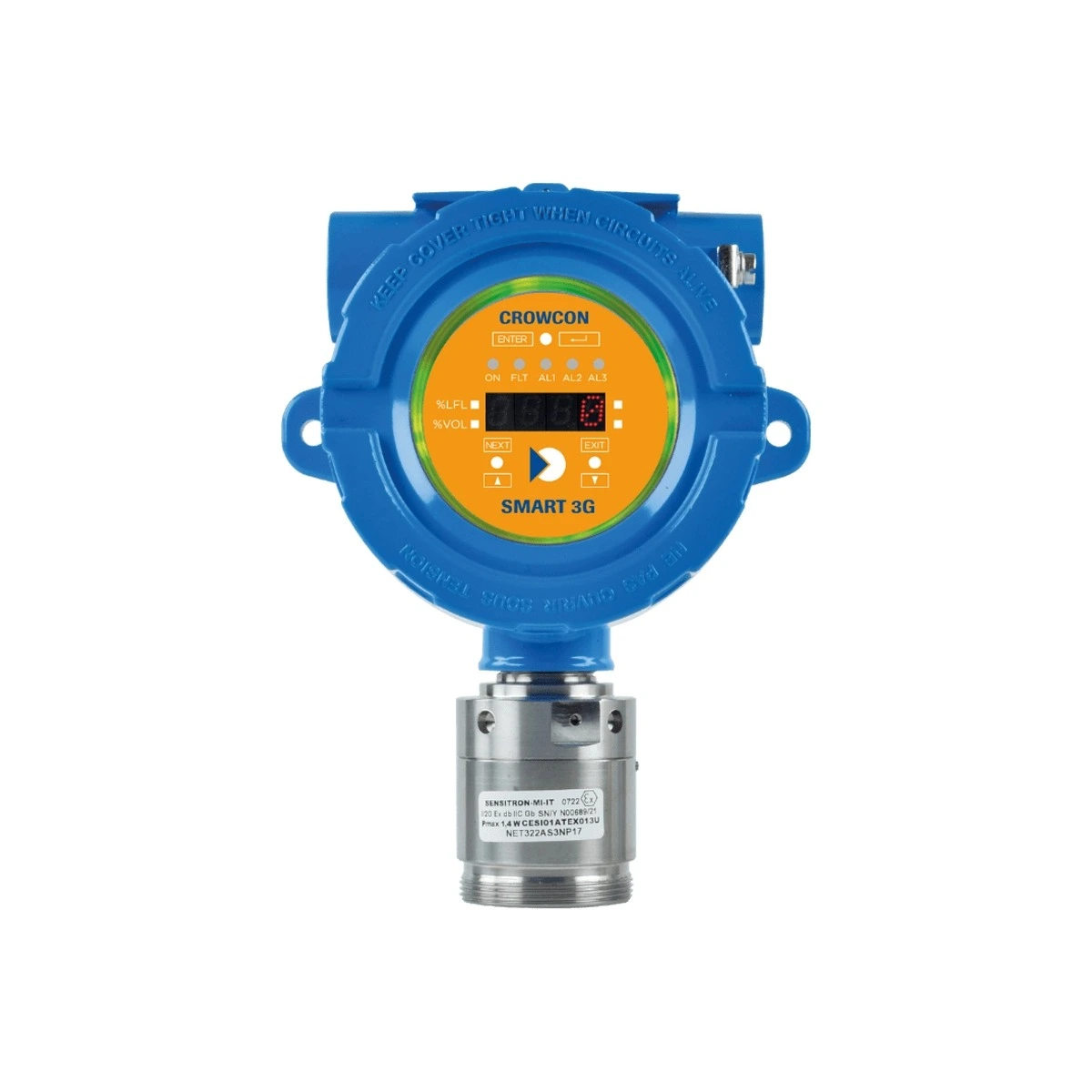

Crowcon SMART 3G-D2

Crowcon SMART 3G-D2 delivers continuous, fixed-point monitoring for toxic and flammable gases, VOCs, oxygen, CO2 and refrigerants, providing early warning of dangerous leaks that could threaten personnel, equipment and infrastructure. A robust aluminium pressure die-cast enclosure with chemically resistant epoxy paint, IP65 ingress protection and wide operating temperature and humidity ranges supports long-term deployment in aggressive atmospheres, outdoor locations and challenging plant conditions.

The detector is suitable for Zone 1 Category 2 classified areas and fits typical applications such as petrochemical plants, refineries, chemical processing facilities, oil and gas installations, water treatment plants and general industrial sites. Backing from Crowcon/Sensitron’s industry presence, together with recognised functional safety and hazardous area approvals, supports regulatory compliance and simplifies risk assessments and project approvals.

The SMART 3G-D2 platform accommodates catalytic, infrared (IR), electrochemical and PID sensor types, allowing engineers to match the sensing technology to specific hazards and operating conditions. It can monitor flammable compounds as % LFL, toxic gases in ppm, oxygen and CO2 in % volume, and refrigerants in ppm or % LFL, so a single detector family can address flammable, toxic, oxygen, VOC and refrigerant risks.

Coverage extends to hydrocarbons, solvents and VOCs, a wide range of refrigerants (including both F-gases and natural refrigerants) and key industrial toxic gases. IR sensor options include gases such as CO2 and SF6 for applications like refrigeration and switchgear, while electrochemical intrinsically safe variants cater for certain toxic gases. A PID option supports low-level VOC monitoring where early indication of solvent and organic vapour release is required.

Easy sensor replacement allows rapid service and straightforward reconfiguration when processes change or new gases are introduced. Combined with compatible accessories, relay and RS485 boards, and remote sensor head options, this flexibility enables consistent hardware to be deployed across varied layouts and hazard profiles, reducing spares holdings and simplifying training.

SMART 3G-D2 is designed to minimise disruption during routine servicing. Non-intrusive calibration using Hall-effect switches or a magnetic pen keeps the enclosure sealed, helping technicians service detectors in classified areas without opening live junction boxes. This approach supports one-person calibration, reduces the need to declassify hazardous zones and helps shorten maintenance windows.

Zero tracking / zero follower functionality helps maintain a stable baseline and compensates for drift over time, while continuous self-diagnosis checks internal functions and sensor health. This aids early fault detection and supports planned maintenance regimes instead of reactive call-outs. In combination with long-life sensor options and the detector’s rugged construction, these features contribute to a lower total cost of ownership over extended service life.

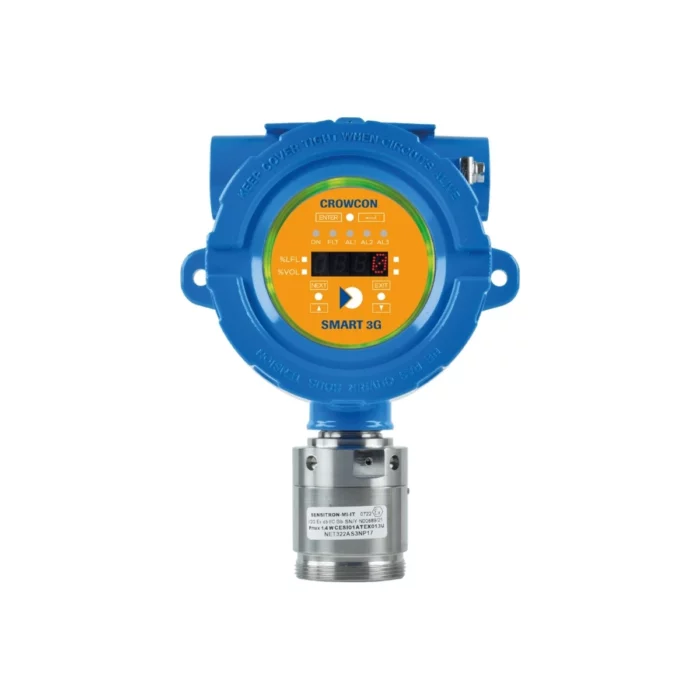

In busy or visually noisy plant environments, clear status indication is essential. The SMART 3G-D2 incorporates a bright, back-lit 4-digit display that shows real-time gas concentrations, ensuring readability in low light and at a distance. A high-visibility multi-colour LED crown or light ring provides instant visual confirmation of alarm and status conditions, while five dedicated status LEDs offer further detail on operating state and active alarms.

This combination improves situational awareness for operators, maintenance teams and emergency responders, helping them identify hazards quickly, verify detector health at a glance and respond faster to developing incidents. It is particularly advantageous in large installations, confined spaces and locations where multiple systems compete for attention.

Functional safety is central to the SMART 3G-D2 design. The detector combines SIL2-certified hardware with SIL3-certified software and can achieve SIL3 when used in an appropriate redundant configuration, making it suitable for safety-critical applications where gas detection forms part of a safety instrumented system. It is tested in accordance with performance standards for flammable gas detectors and holds ATEX and IECEx certifications for use in hazardous areas.

These approvals, supported by readily available datasheets and assessment documents, assist engineering and safety teams in demonstrating performance and compliance during design reviews, HAZOPs and audits. Using a detector with recognised approvals also helps standardise engineering practices across multiple sites.

SMART 3G-D2 integrates easily into both simple and complex control architectures. A standard analogue 4–20 mA, 3-wire output ensures straightforward connection to existing control panels, distributed control systems and safety systems. Three standard relay outputs can drive local beacons, sounders, fans, shut-off valves or other safety devices, enabling cost-effective stand-alone or distributed alarm configurations.

Where digital communication is required, an optional RS485 interface with Modbus protocol supports connection to building management systems and plant monitoring platforms. This enables centralised supervision, data logging and integration with wider process safety and automation strategies. Remote sensor head kits in multiple cable lengths allow sensors to be installed in confined or inaccessible areas while keeping the main electronics accessible for service, improving both safety and practicality.

By combining wide gas coverage, multiple sensor technologies, flexible outputs and broad accessory options, the SMART 3G-D2 enables organisations to standardise on a single fixed detector platform across many applications. This reduces the number of device types on site, streamlines training and simplifies spare parts management.

Free technical support from certain distributors, along with optional product training and demonstrations from some suppliers, helps engineering and maintenance teams specify, configure and operate systems correctly. With worldwide availability through key distributors, organisations can roll out a consistent gas detection approach across multiple locations while benefiting from a proven, certified platform.
