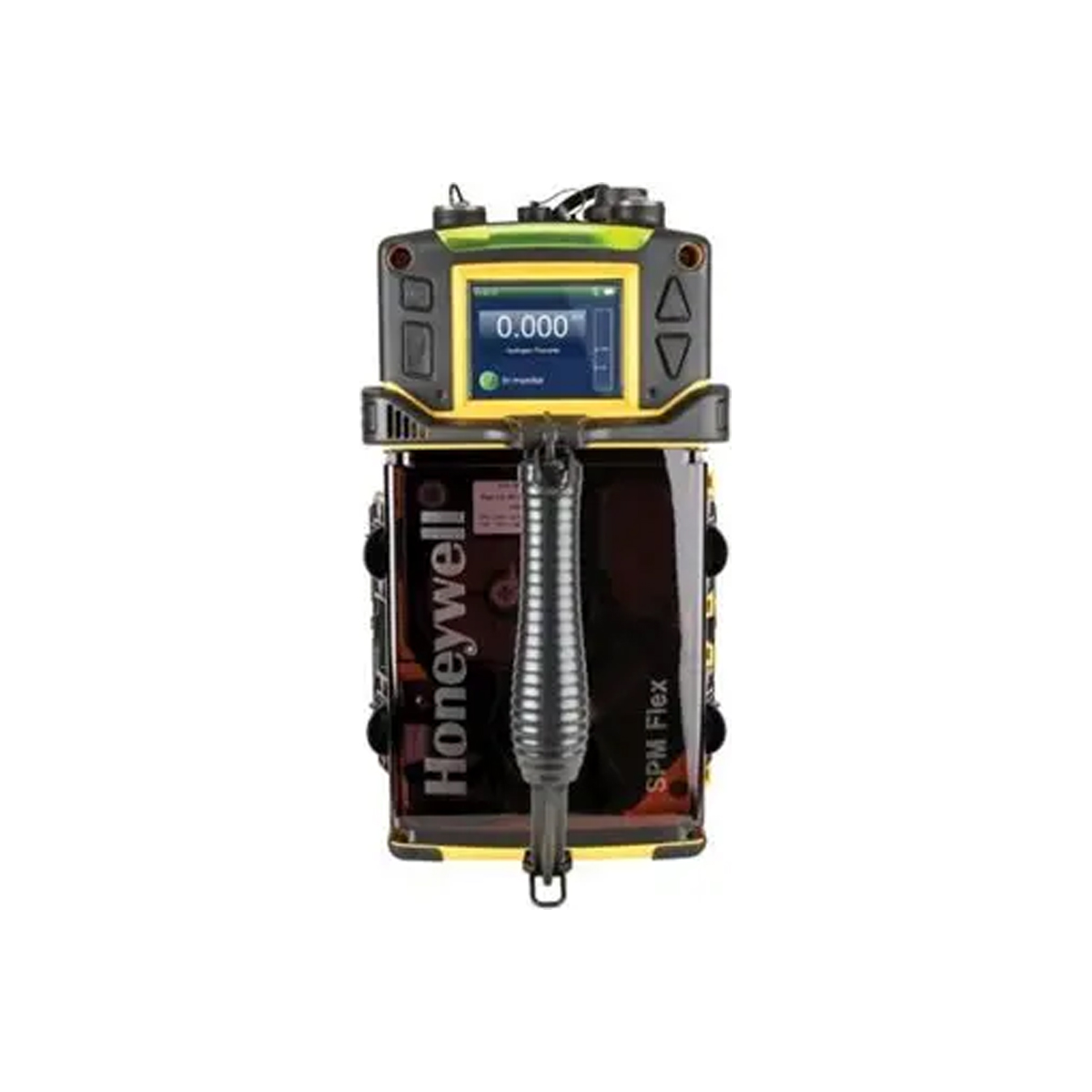

Honeywell SPM Flex Chemcassette

The Honeywell SPM Flex Chemcassette uses Chemcassette tape‑based sensing to deliver ultra‑sensitive, stable measurement of low‑level toxic gases. It is engineered for gases where even trace releases can impact personnel safety, product yield or regulatory limits, including challenging species such as hydrides, mineral acids, oxidisers, amines, diisocyanates, phosgene, chlorine, ammonia, sulphur dioxide, hydrazine, hydrogen cyanide, hydrogen peroxide and ozone. Continuous sampling from local or remote points helps protect high‑risk locations such as gas cabinets, process tools, valve manifolds, transfer lines and maintenance areas.

Chemcassette tape provides not only electronic readings but also a visible physical record of exposure on the tape itself. This dual evidence supports robust incident investigation and gives EHS teams added confidence when reviewing alarms, near misses or maintenance activities.

The SPM Flex Chemcassette combines the robustness of a fixed detector with the convenience of a portable unit. It can be wall‑mounted as part of a permanent monitoring strategy or carried using an optional handle and shoulder strap for survey work, leak investigation and emergency response. A compact footprint and lightweight construction (around 4.1 kg) make it easy to position close to specific tools or lines, including in congested production areas and cleanrooms.

The lithium‑ion battery provides more than six hours of operation for portable tasks and acts as a backup power source in fixed installations, helping maintain coverage during power interruptions. A universal AC power supply with region‑specific cords supports standardisation across global sites, while an indoor‑only power supply combined with the outdoor‑rated detector allows flexible placement of the sensing point versus power infrastructure.

IP65 dust‑ and water‑resistant housing allows the SPM Flex Chemcassette to operate reliably in harsh industrial areas, including locations with corrosive or acidic atmospheres when used with appropriate filters and scrubbers. Optional weather shields and protective dust covers for power and communication connectors further enhance durability in contaminated or wet environments, supporting continuous monitoring in exposed plant locations.

Teflon‑coated surfaces and cleanroom‑compatible accessories reduce dust attraction and particle shedding, making the detector suitable for cleanroom and other high‑purity manufacturing spaces. Its operating range covers typical industrial and semiconductor conditions, enabling deployment in semiconductor fabrication, pharmaceutical manufacturing, chemical processing, healthcare facilities and wider industrial applications where ultra‑low toxic gas levels must be controlled.

The interface of the SPM Flex Chemcassette is designed for fast, intuitive use, even by personnel who interact with gas detectors infrequently or while wearing full PPE or hazmat suits. A 3.5‑inch colour LCD TFT flip screen shows live gas readings, alarms, faults and status on a clear, backlit display that can be viewed from multiple angles. A large four‑button keypad adjacent to the screen enables straightforward navigation and configuration with gloved hands.

Colour‑coded LEDs indicate normal operation, alarm, fault and external power at a glance, while a high‑visibility LED bar and status LEDs on the top of the unit make alarms easy to see from a distance. Local audible alarms with selectable sound levels (including a silent option) allow adaptation to quiet control rooms or noisy processing areas. A start‑up time of under two minutes helps ensure the detector is ready quickly for emergency deployments or rapid leak checks.

Switching target gases is straightforward. Operators change the Chemcassette cartridge and then select the appropriate gas from the on‑screen menu. RFID‑enabled cartridges with smart labels help prevent mismatches between cartridge type and gas configuration, removing the need for separate ChemKeys and reducing the risk of configuration errors during time‑critical tasks.

Cartridge durations of 14, 30 or 90 days support different duty cycles and gas families, allowing optimisation of consumable usage across varied applications. Duty cycle options and K‑factor multipliers help conserve tape where background conditions are high, maintaining measurement integrity while extending cartridge life and reducing operating cost.

The Honeywell SPM Flex Chemcassette is designed to fit seamlessly into wider plant safety architectures. Built‑in Ethernet with Modbus TCP/IP and an embedded web server enables remote viewing, configuration and status checks from control rooms or other safe areas. A 4–20 mA analogue output and three configurable relay outputs (for two alarm levels and fault) support straightforward interfacing with existing distributed control systems, PLCs and safety panels.

On‑board data logging stores several months of rolling gas‑concentration data alongside an extensive system event history. This combined history underpins incident reconstruction, compliance reporting and performance trending. A USB 2.0 port allows rapid transfer of configuration files, firmware updates and data logs to memory sticks, simplifying fleet management and reducing time spent on individual instruments.

The SPM Flex Chemcassette is built for long‑term service in demanding facilities. Key components such as pumps, optics, motors, printed circuit boards, doors and seals are serviceable, and readily available spares help keep maintenance predictable. The lithium‑ion battery is designed for long service life, retaining much of its capacity even after extensive charge and discharge cycles, helping to reduce replacement frequency.

Clear consumable and spare parts lists support inventory planning and standardisation across multiple sites. For facilities migrating from legacy Honeywell/MDA Scientific SPM units, optional retrofit mounting brackets allow replacement with minimal mechanical rework, enabling stepwise upgrades to modern connectivity and usability without large‑scale infrastructure changes. Accessories such as sample wand kits, weather shields, mounting brackets, cleanroom‑grade straps and compatible filters and tubing extend application coverage from local sampling to remote extraction points.

With broad global approvals and certifications, the Honeywell SPM Flex Chemcassette supports corporate safety and compliance programmes across multiple regions. Its compact single‑point architecture simplifies protection of specific high‑risk locations, while advanced self‑monitoring optics continuously verify tape movement and optical performance to help maintain measurement integrity.

By combining ultra‑low‑level toxic gas detection, flexible fixed and portable deployment, and strong integration and data capabilities, the SPM Flex Chemcassette helps organisations detect leaks early, protect personnel and assets, and maintain uptime and regulatory confidence across complex industrial and semiconductor operations.
