MSA ALTAIR 5X

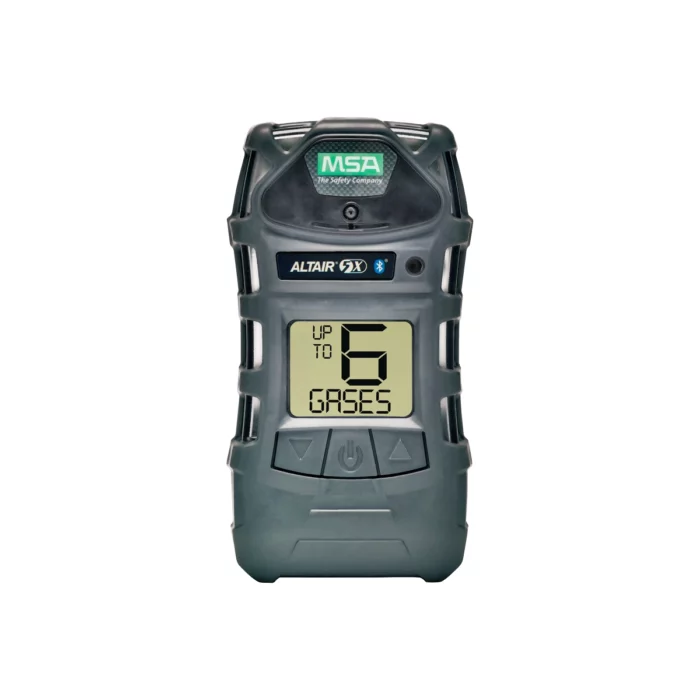

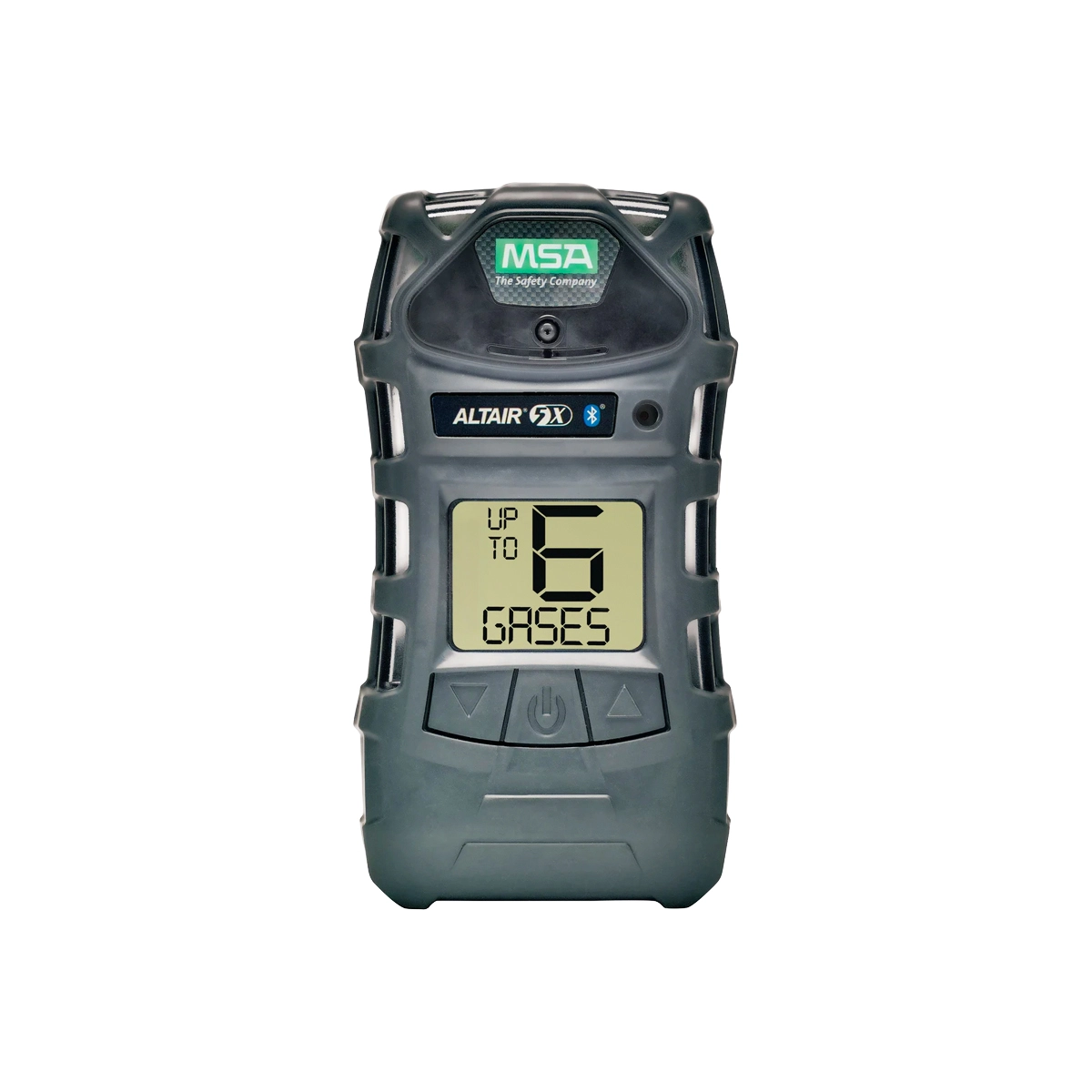

MSA ALTAIR 5X is engineered for situations where single-gas monitoring is not sufficient. The detector measures up to six gases simultaneously, covering combustible risks in both LEL and volume ranges, oxygen deficiency and enrichment, and a wide selection of toxic gases depending on configuration. Options to monitor natural gas and carbon dioxide, together with an integrated PID sensor for volatile organic compounds (VOCs), allow one platform to address diverse atmospheric hazards across utilities, construction, mining, oil and gas and general industry applications.

MSA XCell sensor technology underpins the performance of the ALTAIR 5X. Rapid response and clear times, often under 15 seconds for many target gases, help front-line teams detect changing conditions quickly. High accuracy and repeatability support confident decision-making during confined space entry, plant maintenance and emergency response to unknown gas releases. Typical sensor lifetimes of three to four years or more, depending on sensor type, reduce replacement frequency and contribute directly to lower lifetime ownership costs.

The detector is built for harsh industrial and emergency conditions. Its overmoulded polycarbonate housing withstands drops up to 10 ft (3 m), helping to limit damage, downtime and unexpected replacement. IP65 certification provides dust-tight and water-resistant performance, so the instrument can be used confidently around process equipment, in outdoor utility work and in demanding field conditions. Fire services and other first responders benefit from this robustness during firefighting, overhaul and other operations in contaminated or debris-filled atmospheres.

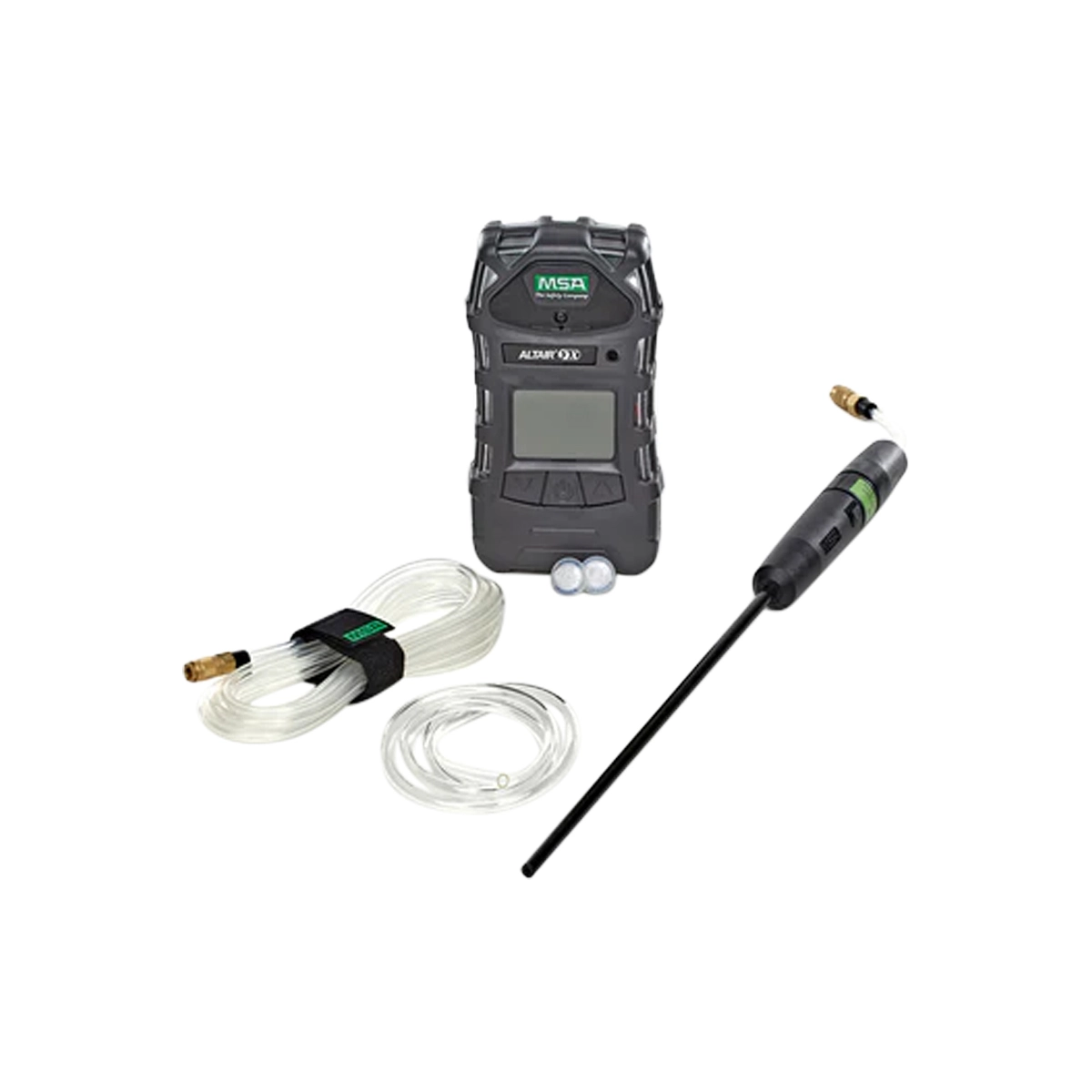

MSA ALTAIR 5X incorporates a field-proven sampling pump, eliminating the need for external pump attachments that introduce extra leak paths and complexity. This integrated approach provides consistent gas flow for pumped sampling while still supporting diffusion monitoring in a single device. The configuration suits pre-entry checks on confined spaces, remote sampling ahead of rescue or intervention teams and continuous monitoring around welding or other activities where gas build-up or oxygen changes are a concern. IR LEL sensor options for methane and other hydrocarbons further extend its suitability for environments with combustible gas risks.

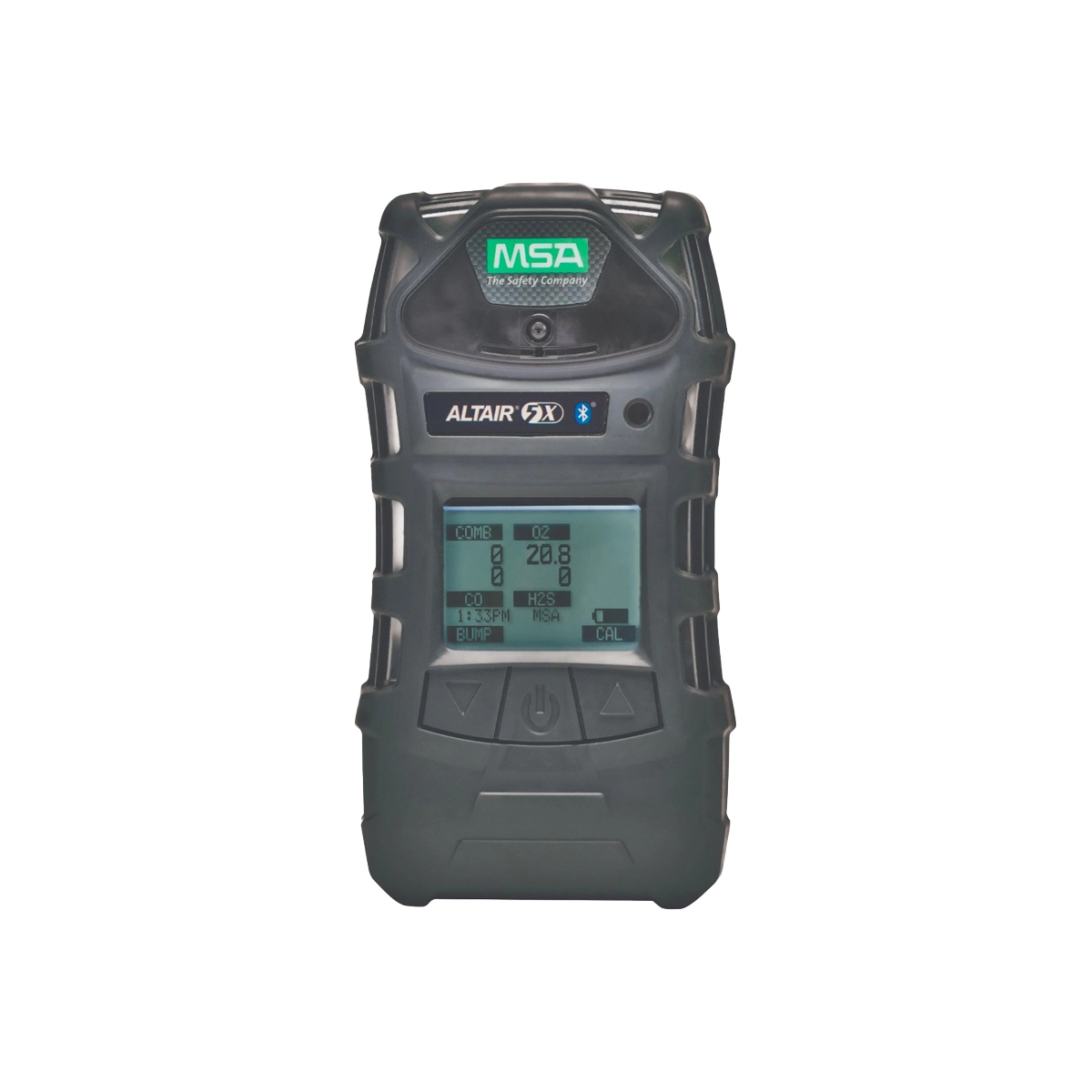

The instrument is designed for reliable operation in challenging conditions such as low visibility, high noise and glove use. A large, bright display remains easy to read in both low-light and high-glare environments, while oversized buttons support intuitive operation with gloved hands. Clear visual and audible alarms help ensure hazardous conditions are recognised quickly so that evacuation or process adjustments can be carried out without delay. MotionAlert automatically signals if the user becomes immobile, and InstantAlert allows a manual alarm to be triggered so nearby personnel can be warned of threats or incidents.

Maintenance workflows are designed to minimise downtime and calibration gas use. The ALTAIR 5X supports fast bump tests, often completed in under 10 seconds for common configurations, while typical span calibration is achieved in around 60 seconds. Reduced calibration gas consumption compared with many conventional multigas detectors lowers running costs over the life of the instrument. An end-of-sensor-life warning enables proactive planning of sensor replacements, supporting continuous availability and helping sites maintain compliance with internal procedures and external regulations.

MSA ALTAIR 5X integrates into wider gas detection programmes. Compatibility with the GALAXY GX2 Test System enables automated bump testing and calibration, supporting consistent safety practices across a detector fleet. MSA Link software provides tools for downloading, storing and managing instrument data, improving traceability for audits, incident investigations and long-term compliance records. Extensive manuals, technical bulletins and application guides assist safety managers in deploying and managing detectors across large or complex sites.

A wide choice of configurations allows the ALTAIR 5X to be matched to specific monitoring requirements, including combinations for combustible gases, oxygen, toxic gases, VOC measurement with programmable reference factors and specialist options such as combined PH3 and H2S monitoring. Models are available with either monochrome or colour displays to suit different user preferences and environments. Certified to major international and regional standards, the detector is suitable for global deployment in applications ranging from utilities and construction through to mining, oil and gas, plant maintenance, confined space entry, emergency response and fire service operations.
