Description

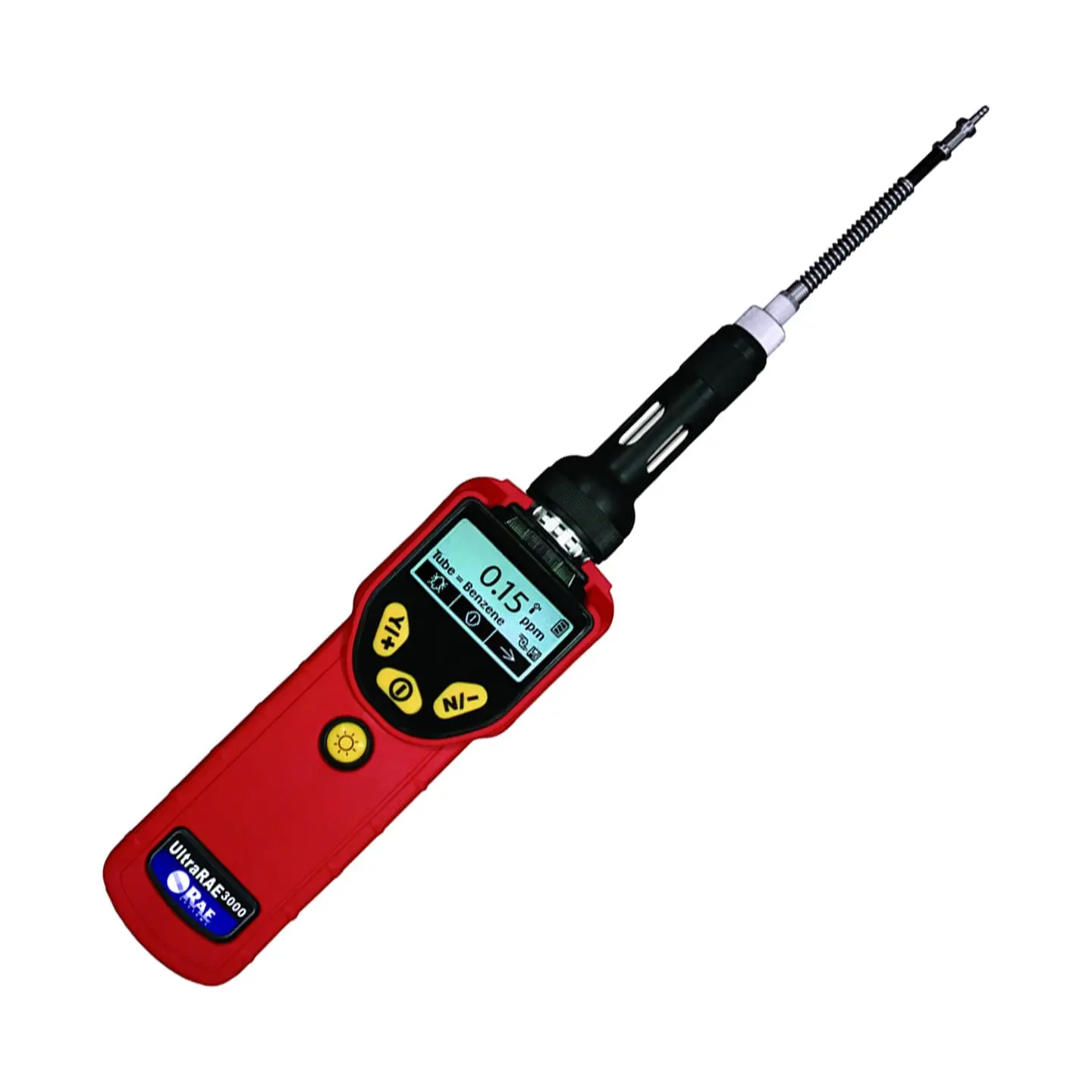

RAE Systems UltraRAE 3000 is a handheld VOC and benzene monitor for hazardous areas, combining ultra‑low limits with rapid response.
The RAE Systems UltraRAE 3000 is a compound‑specific handheld monitor for benzene and volatile organic compounds in industrial areas classified due to flammable gases, vapours or combustible dust. It combines wide‑range VOC screening with highly selective benzene measurement in a single intrinsically safe instrument, helping safety teams manage both routine exposure and incident response. Fast response, wireless connectivity, strong local alarms and robust environmental protection support timely decisions, while extended data logging and low ongoing maintenance help reduce total cost of ownership compared with portable GC‑based solutions.
AT A GLANCE
- Dual VOC and benzene capability: One handheld instrument delivers broad VOC screening and benzene‑specific monitoring with ultra‑low detection limits.
- Fast, stable readings: Rapid response, wide dynamic range and environmental compensation support confident decisions from trace levels to high‑concentration events.
- Rugged and intrinsically safe: Handheld, IP65 design with loud audible and bright visual alarms for demanding hazardous area applications.
- Connected and economical to run: Wireless options, long‑term data logging and simplified field maintenance reduce downtime and lifecycle costs.
For detailed technical data, consult the Specifications tab.
Overview of RAE Systems UltraRAE 3000
High‑Performance VOC and Benzene Monitoring in One Instrument
The RAE Systems UltraRAE 3000 provides both broad VOC screening and precise benzene measurement in a single, compact detector. Its extended VOC range covers trace concentrations through to high levels typically seen during leaks, turnarounds or spill clean‑ups. A dedicated benzene mode focuses on very low exposure limits, supporting occupational hygiene assessments, area surveys and incident investigation without the need to deploy separate instruments.
Dual operating modes allow straightforward switching between general VOC and benzene‑specific monitoring so that the same detector can move from routine workplace checks to more detailed exposure assessment. Sensitivity down to very low benzene levels supports current workplace exposure limits and provides headroom for potential future tightening of regulations.
Advanced Selectivity and Reduced False Alarms
The detector uses photoionisation technology optimised for compound‑specific performance. In benzene mode, a 9.8 eV UV lamp operates with RAE‑Sep benzene tubes and an advanced speciation method to limit cross‑sensitivity from other VOCs. This combination helps ensure that benzene alarms are far less likely to be triggered by non‑benzene compounds, supporting more reliable decision‑making in complex process environments.
An integrated correction factor library for more than 200 compounds extends the usefulness of the PID beyond basic total VOC readings. Safety teams dealing with varied process streams or unknown mixtures can obtain more representative values for key compounds without extensive manual calculation, improving on‑scene assessments and simplifying reporting.
Fast Response, Wide Dynamic Range and Environmental Stability
The UltraRAE 3000 delivers very rapid response in VOC mode so that emerging issues can be identified within seconds. In compound‑specific benzene mode, it supports both a rapid 60‑second snapshot and a full 15‑minute STEL run with automatic recording, allowing capture of short‑term peaks and time‑weighted exposure in a single device.
The wide dynamic range with improved linearity provides consistent accuracy from very low background levels up to higher concentrations encountered during maintenance activities or spills. A built‑in humidity sensor with compensation, together with automatic temperature‑controlled sampling time calculation, helps maintain stable performance in changing conditions, whether in hot process areas, outdoor locations or high‑humidity environments.
Powerful Sampling and Clear Situational Awareness
An internal pump with strong flow capability enables sampling from significant horizontal or vertical distances, supporting confined space pre‑entry checks and remote sampling where direct access is difficult or unsafe. The see‑through sampling probe gives immediate visual confirmation of benzene tube status and breakthrough, helping to avoid wasted sampling runs and uncertain results.
A large multi‑line graphic display presents live VOC readings alongside high and low values, STEL, TWA, temperature, date, time and battery status. High‑output audible alarms and bright flashing LEDs provide clear warning of hazardous conditions, even in noisy or low‑visibility environments, supporting effective site evacuation and escalation procedures.
Rugged, Intrinsically Safe and Ready for Hazardous Areas
The UltraRAE 3000 is designed for use in hazardous areas where ignition risks must be controlled. Its intrinsically safe construction and robust housing, complemented by an IP65 ingress protection rating, resist dust, water splashes and everyday mechanical impacts. The wide operating temperature range and suitability for high humidity make the detector well suited to refineries, chemical plants, marine terminals, offshore and onshore energy facilities and general industrial sites.
The compact handheld format with a bright red rubber boot enhances shock protection and visibility, making the detector easier to locate on busy sites or in emergency response situations. Defined warranties on the instrument, pump, sensor and PID lamps support long‑term reliability and fleet planning.
Connected Monitoring and Data Management
Built‑in Bluetooth enables real‑time data transfer, with optional RAELink3 Mesh radio available for extended range on dedicated wireless networks. This wireless capability allows remote viewing of readings and alarms from control rooms or incident command points, helping to keep personnel out of high‑risk areas while maintaining oversight of VOC and benzene hazards.
Extensive onboard data logging, sized for long‑term storage at typical logging intervals, supports exposure records, audits and trend analysis. Configuration and data download can be carried out via a PC using the charging/download cradle and ProRAE Studio II software, or through BLE connectivity and supported mobile applications, simplifying integration into digital safety workflows.
Practical Operation and Low‑Effort Maintenance
The UltraRAE 3000 is built for straightforward operation in the field. A simple three‑key keypad, multi‑language interface and dedicated flashlight button support gloved use in low‑light conditions. Clear on‑screen menus help standardise operation across shifts and international sites.
Maintenance tasks are simplified through tool‑free access to the lamp, sensor and battery, allowing quick replacement and servicing in the field rather than returning detectors to a workshop. Two‑ or three‑point calibration with calibration memory and Reflex PID Technology supports consistent performance between calibration intervals. The field‑interchangeable rechargeable Li‑ion battery and alkaline adapter provide power flexibility, with typical runtime covering a full work shift, reducing the need for mid‑shift battery changes.
Low‑cost RAE‑Sep tubes, combined with the absence of a mandated annual factory calibration requirement, help to keep routine operating costs under control, particularly for larger fleets.
Applications and System Flexibility
Supplied as a complete kit with probes, filters, charger, battery, tubes, tool kit and carry cases, the UltraRAE 3000 is ready for rapid deployment to confined space entry pre‑screening, hazardous materials incidents, emergency spills and plant overhauls. It is widely used in marine spill response, refinery downstream monitoring and across petrochemical and energy operations, where it supports benzene, butadiene and wider VOC monitoring requirements.
Optional accessory packages, including hard transport cases, additional filters, a charging/download cradle and zeroing kit, allow the platform to be tailored for fixed fleets, rental stock or mobile response teams. Across these scenarios, the UltraRAE 3000 offers a more economical and field‑practical alternative to portable GC systems for benzene‑specific monitoring, delivering advanced compound‑specific performance in a rugged handheld form.
