AccuSafe

We are the UK leader in Gas Detection and we’re here to help. Call us on 01200 445 804 or email info@ribble-enviro.co.uk

Interscan’s AccuSafe consists of up to ten sensor modules reporting to a single controller. Since the communications are Modbus TCP/IP, there is no limit on the distance between sensor modules and the controller. (Modbus RTU is also available.) Each sensor module is provided with an integral sample draw pump, for a quicker and more reliable response. And, data acquisition is built in. No additional software is needed. Temperature and relative humidity sensors are also included. Remote annunciators are also available.

The Sensor Unit can be provided with an integral concentration display and alarm indicators. In this configuration, the Sensor Unit can become a stand-alone gas detector. This is perfect for single-point applications in which a full Controller is not required.

  • Manage multiple controllers over your local network connection
  • Search and view available AccuSafe controllers in your network.  This lets you watch your sensors on your phone—or any authorized device—in real time.  You can also perform any controller function, including calibration and alarm settings.
  • Update controller or sensor unit software
  • Create, backup, and restore control panel configurations
  • Download recorded sensor data from any controller
  • Configure MQTT communication settings
  • AWS (Amazon Web Services) Web Control option.

We are the UK leader in Gas Detection and we’re here to help. Call us on 01200 445 804 or email info@ribble-enviro.co.uk

Key Features:

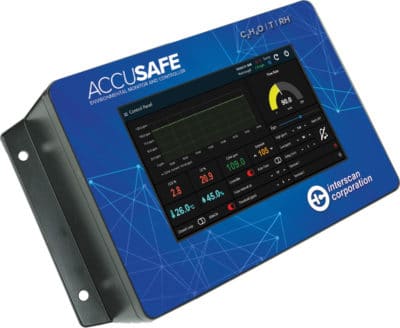

Control Unit

Enclosure: Powder coated aluminum
Weight: 1.94lb (0.88kg)
Dimensions: 6.77in x 4.06in x 2.17in (172mm x 103mm x 55mm)
Communication: Modbus TCP & RTU (RS-485)
User Interface: 5” Touch Display, remote web browser, desktop app, MQTT API
Operating environment: Clean, dry, no extreme temperatures. (Typical control room environment)
Measuring rate: Configurable
Data storage: 8GB
Power input: 5VDC
Alarm: Sound and email alarms; SMS (text message) notification
Integration: Configurable I/O for any compatible sensors/actuator via Modbus, configurable control algorithm (PID, ON/OFF, Open-Loop)

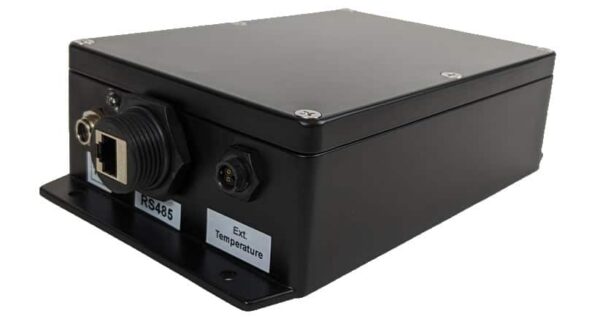

Sensor Unit

Principle of Operation: Electrochemical
Accuracy: ±2% of reading ±1 least significant digit
Enclosure: Powder coated aluminum, rated to IP68
Weight: 2.16lb (0.98kg)
Dimensions: 6.77in x 4.06in x 2.17in (172mm x 103mm x 55mm)
Communication: Modbus TCP & RTU (RS-485), slave-only
Operating environment: 32°F – 122°F (0°C – 50°C), non-condensing
Measuring rate: Continuous
Power input: 12VDC
