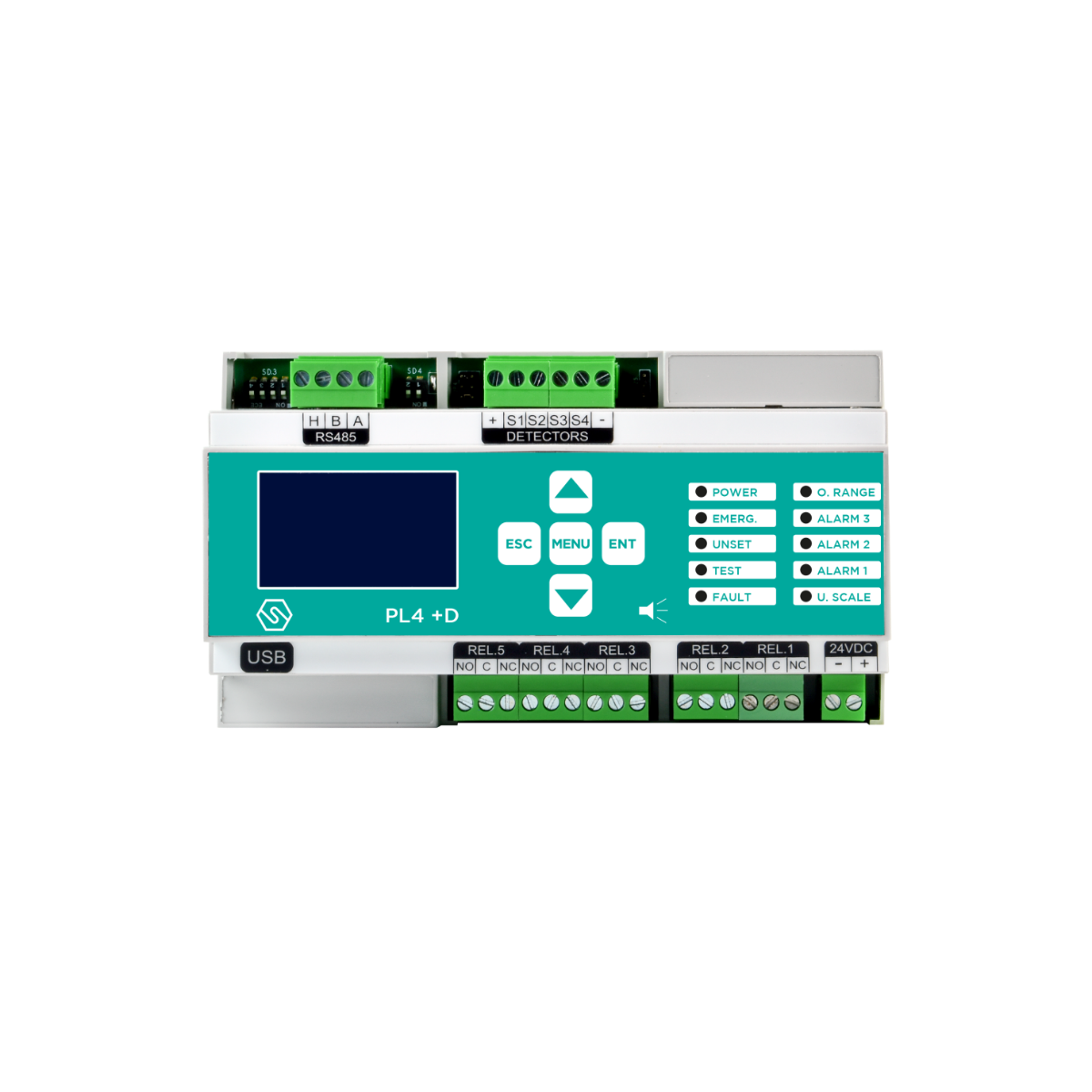

Crowcon PL4+D

The Crowcon PL4+D gas detection control panel acts as the central controller for small industrial, commercial and HVAC/refrigeration installations. ATEX certification and compliance with EN 60079-29-1 support use in hazardous areas, while SIL1-certified safety performance enables deployment within safety instrumented systems. This combination allows engineering teams to standardise on a single control platform across both classified and non-classified zones, simplifying design, approval workflows and ongoing documentation.

Optimised for up to 12 detectors, the panel suits compact plants, machinery skids, compressor rooms, boiler houses, cold stores and plant rooms where multiple gas hazards must be monitored without the complexity of a large distributed system.

PL4+D provides four native analogue 4–20 mA inputs on the panel, expandable to 12 channels using optional input modules. Each channel can be configured for a different detector and gas type, enabling simultaneous monitoring of flammable, toxic and refrigerant gases, as well as oxygen depletion or enrichment. This flexibility supports consolidation of diverse gas risks onto a single panel instead of deploying multiple separate controllers.

The panel measures and displays gas concentrations and alarm thresholds in real time for all connected detectors via a backlit LCD (4 rows x 16 columns). Three independent operating and alarm levels per channel enable tailored alarm strategies for different zones or processes. User-selectable parameters for detector type, full-scale range and alarm set points help align the system with the site risk assessment and operating conditions.

Crowcon PL4+D is designed for straightforward operation by technicians and operators. Ten front-panel status LEDs, mode and status indicators and a simple keypad (four shift keys plus ENTER) provide immediate visibility of alarms, faults and operating state. The backlit display maintains readability in low-light plant rooms and control cabinets.

Visual status indicators are complemented by an integrated internal buzzer rated at 60 dB at 1 m, delivering clear acoustic alerts for gas alarms and system faults. Three password-protected operating levels help prevent unauthorised changes to safety-critical parameters while still allowing authorised personnel to acknowledge alarms and adjust settings. Individual detector channels can be set or unset to support field maintenance and commissioning activities without removing protection from the rest of the installation. Channel test functions further assist with on-site functional checks of detectors and cabling.

Beyond monitoring, PL4+D provides extensive control capabilities for safety devices and process equipment. Up to 21 fully manageable outputs are available to drive sounders, beacons, ventilation, dampers, valves and shutdown systems. Five onboard relays include one dedicated fault relay and four user-programmable relays for alarm handling or control logic, with contact ratings suitable for sizeable loads.

The I/O architecture is modular and expandable. Remote output modules, including open-collector output boards and plug-and-play relay boards such as STG/OUT16S and STG/8REL, allow the system to support up to 32 additional outputs beyond the panel relays. Remote input/output modules such as STG/IN8S and STG/IN4-OUT4-S1 add further flexibility, enabling a maximum configuration of 12 addressable inputs and a wide range of programmable outputs distributed around the site. This modularity allows systems to be scaled over time as additional detectors or controlled devices are added.

An open RS485 (EIA-485) communication bus enables distributed architectures, with detectors and I/O modules installed at distance from the panel while remaining fully supervised. Support for Modbus and Galileo communication protocols allows straightforward integration into higher-level BMS and SCADA systems, giving control rooms centralised visibility of gas status, alarms and system health.

A dedicated USB port provides direct PC connection for configuration, supervision and firmware updates. Using Sensitron control panel configurator software, installers can quickly define channels, alarm thresholds, logic and communications parameters, reducing commissioning time and configuration errors. An integrated event log, viewable on the panel or through the software, supports diagnostics, traceability and compliance records, while an internal clock with backup preserves accurate timestamps across power interruptions.

Crowcon PL4+D is designed for reliable operation in typical industrial and commercial environments, including humid mechanical spaces associated with HVAC and refrigeration plant. EMC compliance to EN 61000-6-3:2007 + A1:2011 and EN 50270:2015 enhances immunity to electrical noise and interference commonly found in control panels and plant rooms. Defined operating temperature and humidity ranges support a wide variety of indoor applications, with separate storage limits aiding logistics and spares handling.

The panel operates from a wide 12–24 Vdc supply (typically 24 Vdc) with low current consumption, reducing load on existing power infrastructure. A dedicated external power supply unit is available where a standalone or conditioned supply is required. Compact, lightweight ABS construction simplifies handling and installation during panel building.

DIN-rail mounting in a 9-module plastic housing allows the PL4+D to integrate neatly into OEM solutions and custom switchboards. Optional 12-module plastic housings and IP65 ABS enclosures (such as STG/IPBOX) provide additional environmental protection and mounting flexibility, supporting both cabinet and wall-mounted installations. This modular accessory ecosystem enables consistent hardware choices across multiple applications and locations.

PL4+D forms part of the wider Sensitron gas detection ecosystem, working with compatible fixed gas detectors, other control panels and portable instruments. It is supported by Sensitron’s long-standing gas detection expertise, established since 1988 as part of the Halma plc group. Manuals, configuration software and datasheets are available via a reserved online area, providing installers and system integrators with the resources needed to design, commission and maintain compliant gas detection systems that can evolve as sites and regulations change.

For detailed technical data, consult the Specifications tab.
