Honeywell Satellite XT

Honeywell Satellite XT is engineered as a fixed point-of-use gas detector/transmitter, installed at or near likely leak sources such as gas cabinets, gas storage rooms, valve manifold boxes, equipment enclosures and process tools. By monitoring exactly where hazardous gases are introduced or conveyed, it delivers fast, reliable and specific gas detection that enhances protection for personnel, assets and production. Real-time measurement of gas concentration allows early identification of developing problems, supporting timely intervention before incidents escalate.

Satellite XT supports detection of a wide range of toxic, corrosive, combustible and flammable gases, as well as oxygen, making it suitable for complex facilities using multiple hazardous gases. The detector uses small, highly reliable electrochemical MST sensor technology, with versions that employ catalytic sensing elements for combustible gas and vapour detection. An extensive sensor portfolio covers numerous semiconductor and industrial gases, enabling standardisation on a single detector platform across diverse applications.

Each sensor cell is interchangeable and intelligent, storing its own operating parameters and being factory-calibrated. Sensors can be exchanged or gas ranges changed without dynamic gas calibration, which shortens maintenance windows and reduces the need for specialist calibration equipment at the point of use. Generic sensor head electronics further simplify spares management, allowing common electronics to support multiple gas types and helping reduce inventory across large or multi-site installations.

Honeywell Satellite XT integrates readily into a wide range of control architectures. Analogue models provide a linear 4–20 mA output compatible with most controllers and building management systems. Digital variants use LonWorks® network technology, allowing each transmitter to participate in distributed control networks with a unique network address for clear identification, diagnostics and targeted control strategies.

Models with integral relays provide multiple SPST contacts for alarm and fault signalling, enabling direct control of external devices such as alarms, fans or shut-off valves. Alarm and status information can be transmitted over the LonWorks® network to other devices, supporting scalable life safety systems that can be adapted as facilities expand or processes change while remaining code-compliant.

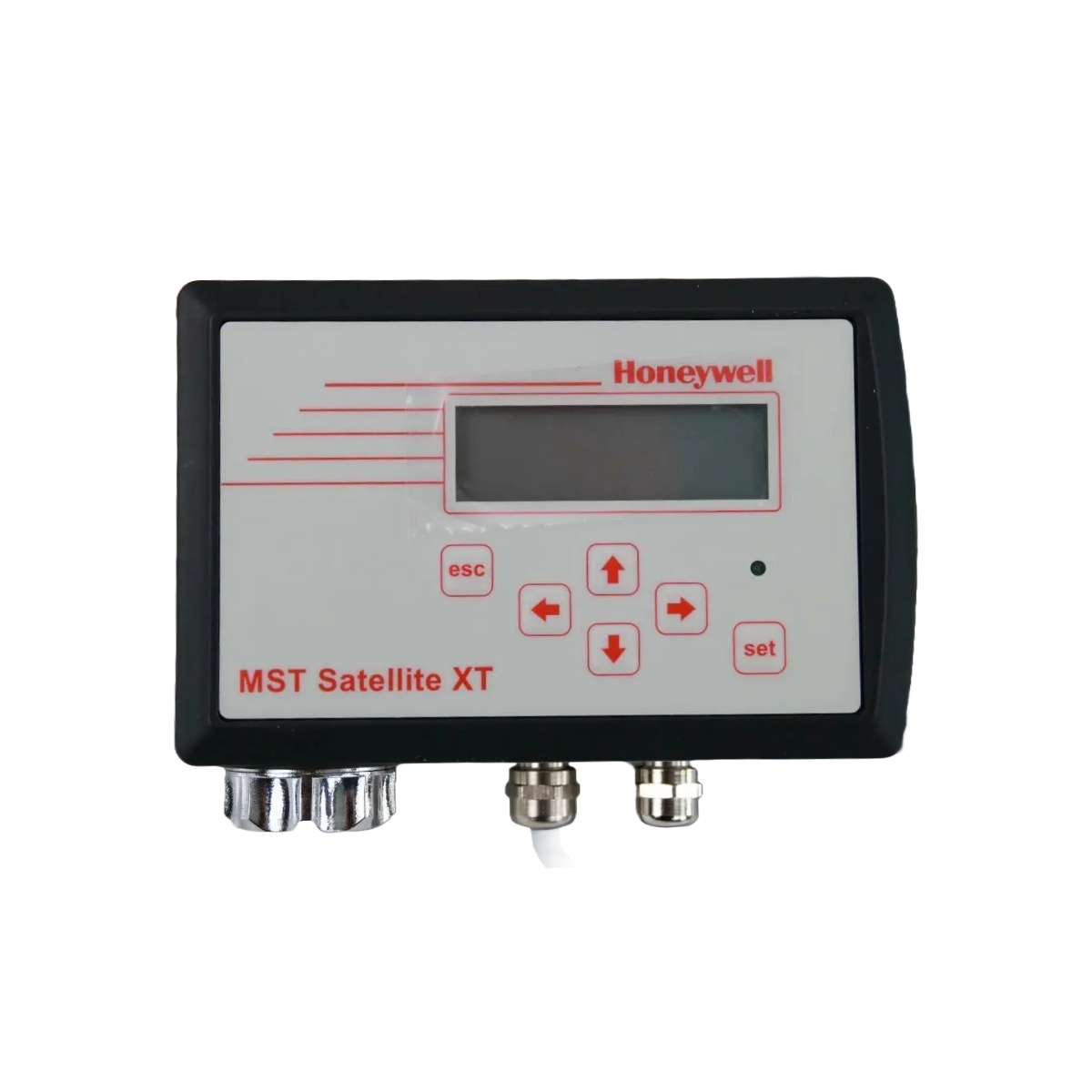

Satellite XT provides local indication via a backlit graphic LCD and LED, showing gas concentration and alarm status on the front panel for at-a-glance confirmation of detector state. A six-key touch-sensitive membrane keypad supports simple configuration and operation, including user-programmable monitoring variables such as gas type, alarm thresholds and maintenance status. This combination of clear visual feedback and intuitive interaction helps reduce operator error, speeds commissioning and streamlines servicing activities in the field.

The compact, lightweight construction of Honeywell Satellite XT supports installation in confined spaces common in semiconductor tools, gas cabinets and laboratory equipment. DIN rail and plate mounting options, together with special mounting plates, rails and saddles, give flexibility for panel, wall or equipment-mounted configurations. A standard ingress protection rating of IP52, with IP65 and IP66 variants available, allows deployment from clean indoor areas through to more challenging industrial locations.

The detector operates over a wide temperature range from −20°C to +40°C (−4°F to +104°F), supporting stable performance in typical process and utility environments. Weatherproof caps, collecting cones and flow housings further extend applicability to outdoor or specialised sampling arrangements, helping standardise on a single detector family across indoor plant areas, sheltered outdoor zones and equipment enclosures.

A comprehensive set of field accessories enables Honeywell Satellite XT to address complex sampling and mechanical integration requirements. Sensor extension kits allow remote mounting of the sensor away from the transmitter housing when the measurement point is difficult to access but local indication and controls must remain visible. Accessories for in-situ duct detection support monitoring of exhaust or supply air streams, providing continuous surveillance of ventilation systems.

For harsh or remote locations, an optional extractive module enables sampling via tubing, supporting both standard and low-flow extractive sampling for selected gases. A dedicated pyrolyser module converts fluorinated gases to mineral acids for easier detection, which is particularly valuable in semiconductor processes using challenging etch and cleaning chemistries. These options allow a single detector platform to address open-area, point, duct and extractive monitoring tasks.

Satellite XT is designed to minimise lifetime operating costs while maintaining high safety performance. Intelligent, factory-calibrated sensors that store their own parameters reduce on-site calibration effort and enable rapid cartridge replacement during planned maintenance, keeping equipment downtime low. With no moving parts and minimal routine service requirements, the detector supports fewer site visits and shorter service windows.

Relay, analogue and digital network outputs, together with a broad portfolio of spares and accessories, allow engineering teams to tailor each installation without introducing multiple detector types. Combined with compact dimensions, lightweight construction and established use in gas detection applications worldwide, Honeywell Satellite XT provides a proven, scalable platform for monitoring gas hazards in gas cabinets, exhaust ducts, occupied areas and other critical locations.
