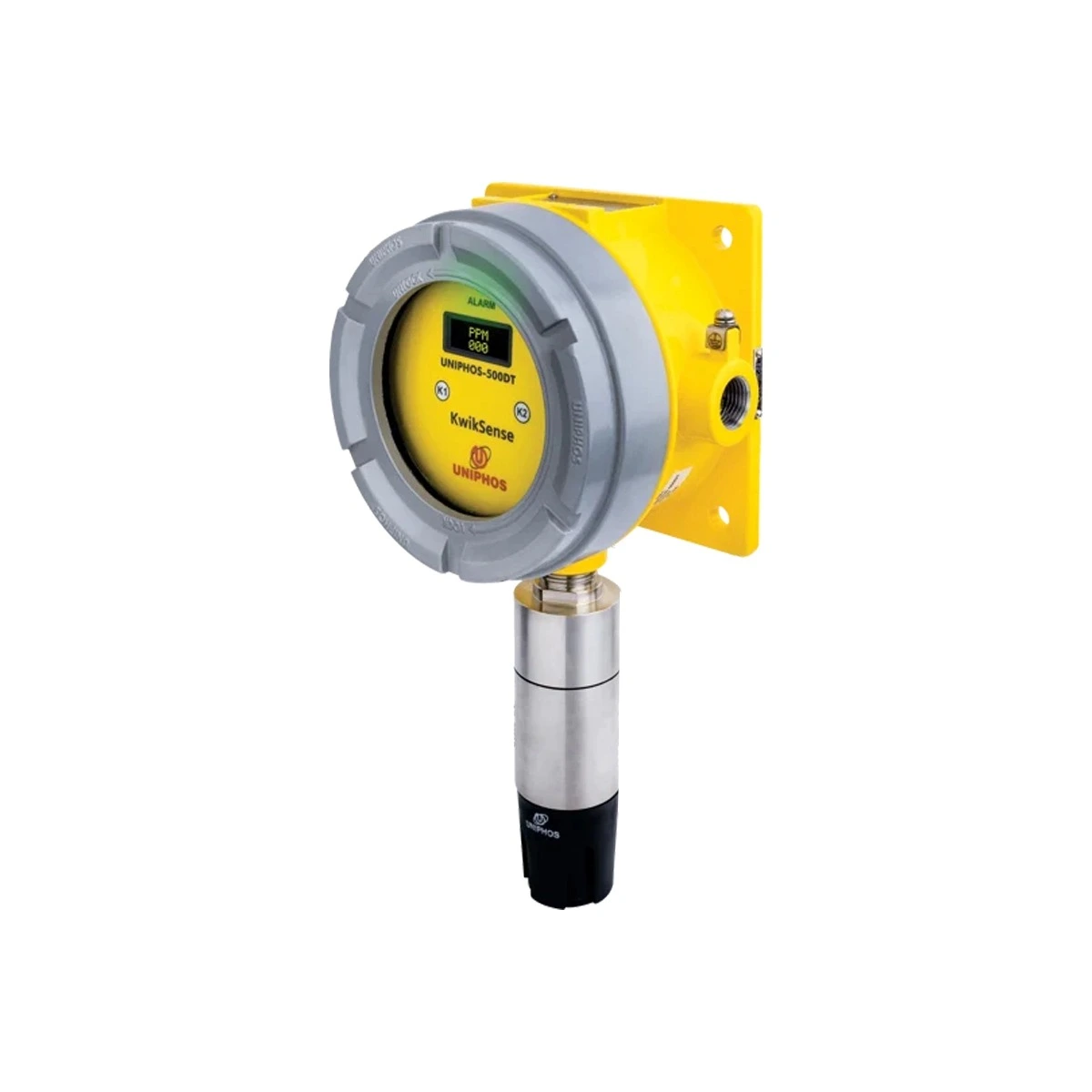

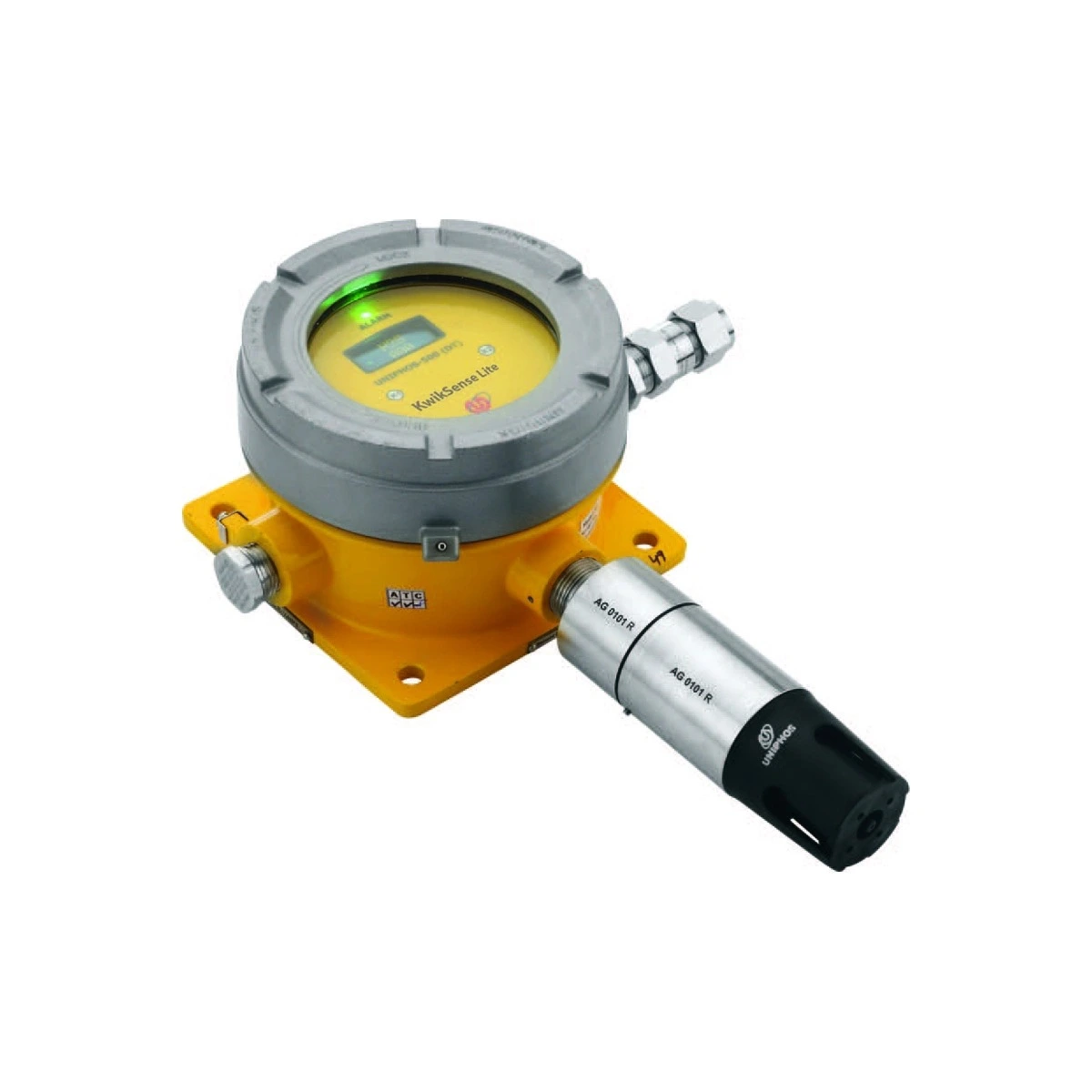

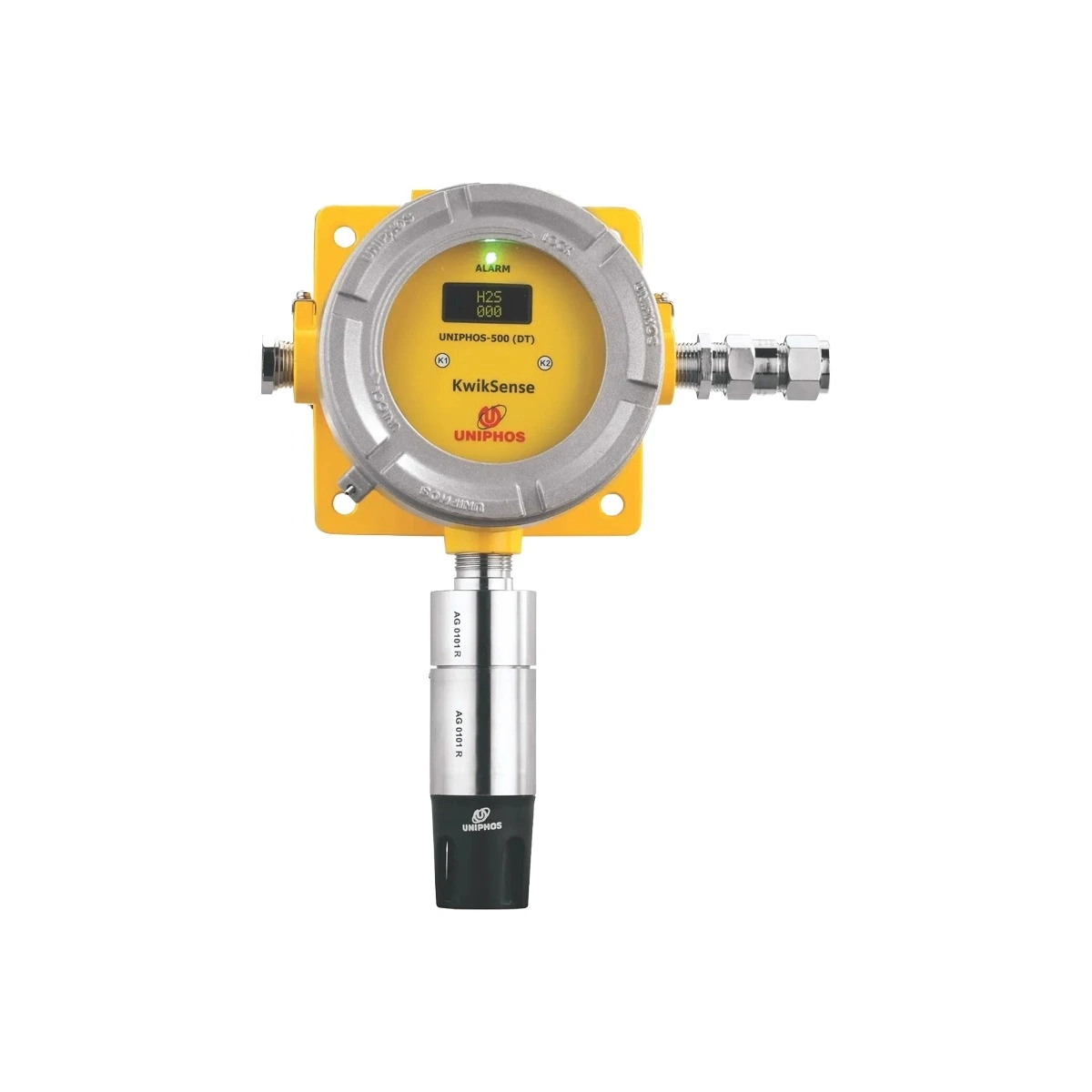

Uniphos Kwiksense Lite

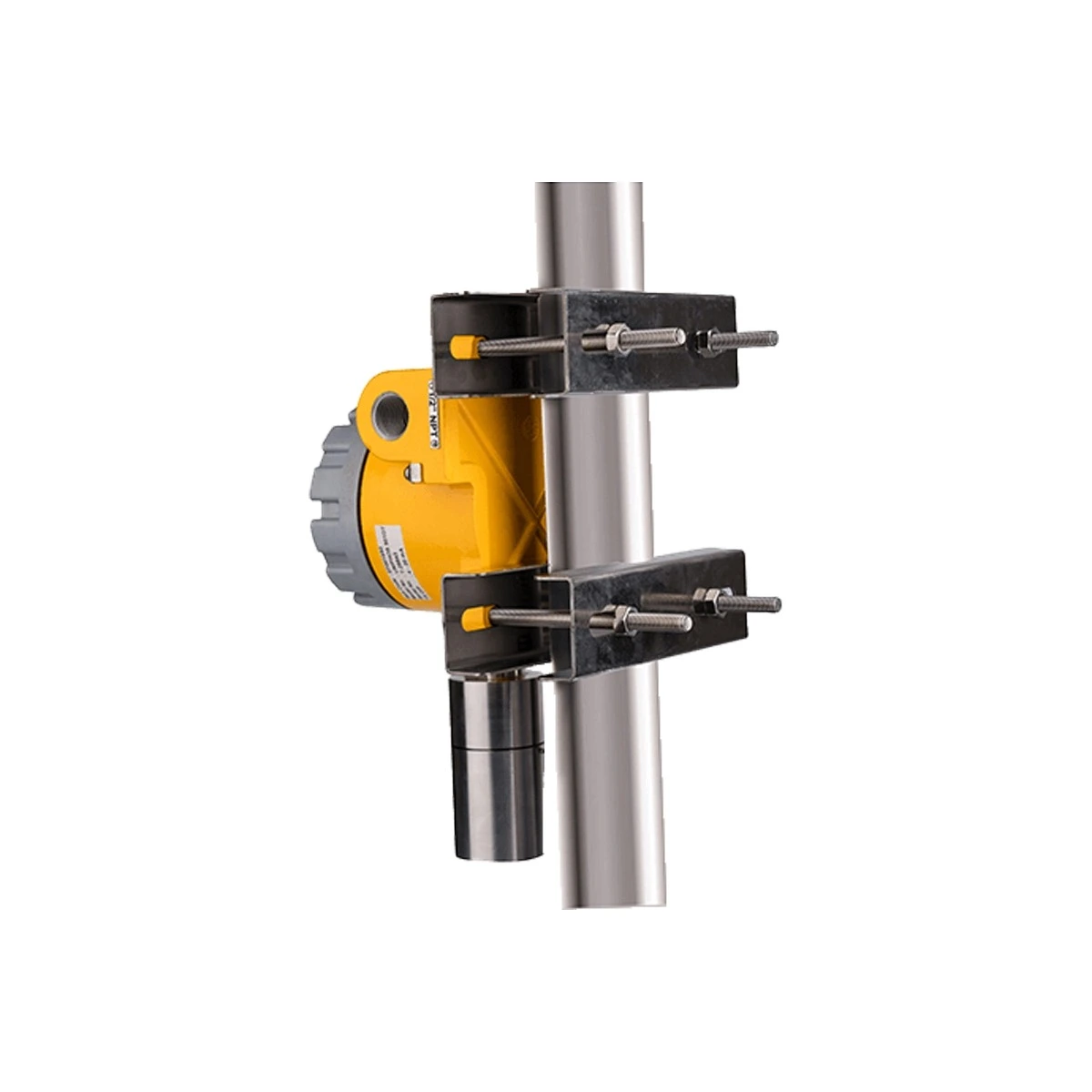

Uniphos Kwiksense Lite is engineered as a practical fixed gas detection solution for safety-critical industries. Its explosion-proof enclosure, supported by relevant hazardous area certifications, enables installation in zones where explosive gas or vapour atmospheres may occur, including oil and gas, petroleum, chemical and similar facilities. The detector is housed in a robust, wall-mountable body available in cast aluminium alloy or SS316 stainless steel, combining mechanical strength with corrosion resistance for demanding onshore and offshore locations.

An IP66 ingress protection rating shields the electronics from dust and powerful water jets, supporting outdoor installations and washdown areas. A wide operating temperature capability and broad humidity tolerance maintain stable performance in extreme climates, from hot, humid process plants to cold storage or exposed marine environments. This resilience makes Kwiksense Lite suitable for petrochemical complexes, fertilizer and steel plants, marine and offshore platforms, pharmaceutical production, general manufacturing and food processing sites where hazardous gases and harsh conditions coexist.

Kwiksense Lite operates as a smart, single-gas digital transmitter that simplifies engineering while maintaining broad coverage across different gas hazards. It supports multiple sensing technologies, including electrochemical, pellistor, non-dispersive infrared, photo ionization detection and solid state, enabling monitoring of flammable gases, toxic gases, oxygen levels, VOCs and selected speciality gases using the same detector platform.

Pre-calibrated, plug-and-play sensors are supplied for the selected gas, allowing fast installation and straightforward commissioning. When process conditions change or a different gas needs to be monitored at a location, the operator can replace only the sensor with another pre-calibrated element. There is no requirement for field calibration at the point of changeover, which reduces downtime, avoids lengthy work interruptions and supports efficient planning of maintenance windows.

This interchangeable sensor approach allows standardisation on one detector type across mixed applications, reducing spares inventory, simplifying training and making it easier to repurpose monitoring points as plant layouts or product portfolios evolve.

Uniphos Kwiksense Lite has been designed with straightforward integration into existing safety systems in mind. The detector provides an industry-standard 4–20 mA analogue output with suitable load resistance for direct connection to common control panels, PLCs, DCS and third-party gas monitoring systems. A three-wire connection for supply, signal and ground keeps wiring simple and supports rapid field installation.

Multiple ½” NPT cable entries offer flexibility in cable routing and gland choice, supporting a range of site cabling practices. The fixed single-gas configuration removes the complexity of multi-gas instruments at each point, simplifying documentation, loop checks and ongoing management. The result is a detector that can be deployed quickly on new projects or added easily to existing networks where additional measurement points are needed.

At the core of the Kwiksense Lite is a microcontroller-based platform that supports non-intrusive calibration and configuration using a magnetic wand. Personnel can adjust settings and carry out calibration activities without opening the explosion-proof enclosure, helping maintain integrity in hazardous zones and reducing the need for hot work permits or extended shutdowns.

An 8×2 OLED display provides clear local indication of gas concentration and device status, while tri-colour LED indicators offer quick visual confirmation of normal operation, fault or alarm conditions from a distance. Two user-settable alarm levels allow tailoring of warning and trip points to site standards. An optional potential-free relay contact can drive external sounders, beacons or simple process interlocks where local action is required.

The diffusion sampling design removes pumps and associated moving parts, reducing wear and simplifying service. Combined with low power consumption and the virtually maintenance-free nature of the transmitter electronics, this helps lower operational costs, particularly on large sites with many detection points.

Kwiksense Lite supports monitoring of flammable gases and vapours, key toxic industrial gases, oxygen for deficiency or enrichment protection, VOCs including benzene-specific options, and carbon dioxide across various concentration ranges. This breadth allows operators to adopt a single transmitter family across refineries, gas plants, petrochemical complexes, chemical and pharmaceutical manufacturing, fertilizer production, nuclear facilities, iron and steel works, marine and offshore installations, and general manufacturing and food processing environments.

By combining rugged hazardous-area construction, flexible sensor options and simple integration, Uniphos Kwiksense Lite enables standardisation on one detector platform for a wide range of applications. This reduces engineering effort, streamlines training and supports scalable, site-wide fixed gas coverage at a competitive cost per monitoring point.

Uniphos Kwiksense Lite is supplied through specialist gas detection distributors that provide technical support for selection, placement and system design. Many partners offer training to engineering, safety and maintenance teams, along with demonstration units where evaluation is required before wider deployment. Authorised service centres with qualified technicians support servicing and calibration, and ISO 9001-based distribution and support in many regions underpin traceability.

Comprehensive documentation and brochures are available to assist with detailed technical review and regulatory compliance.
