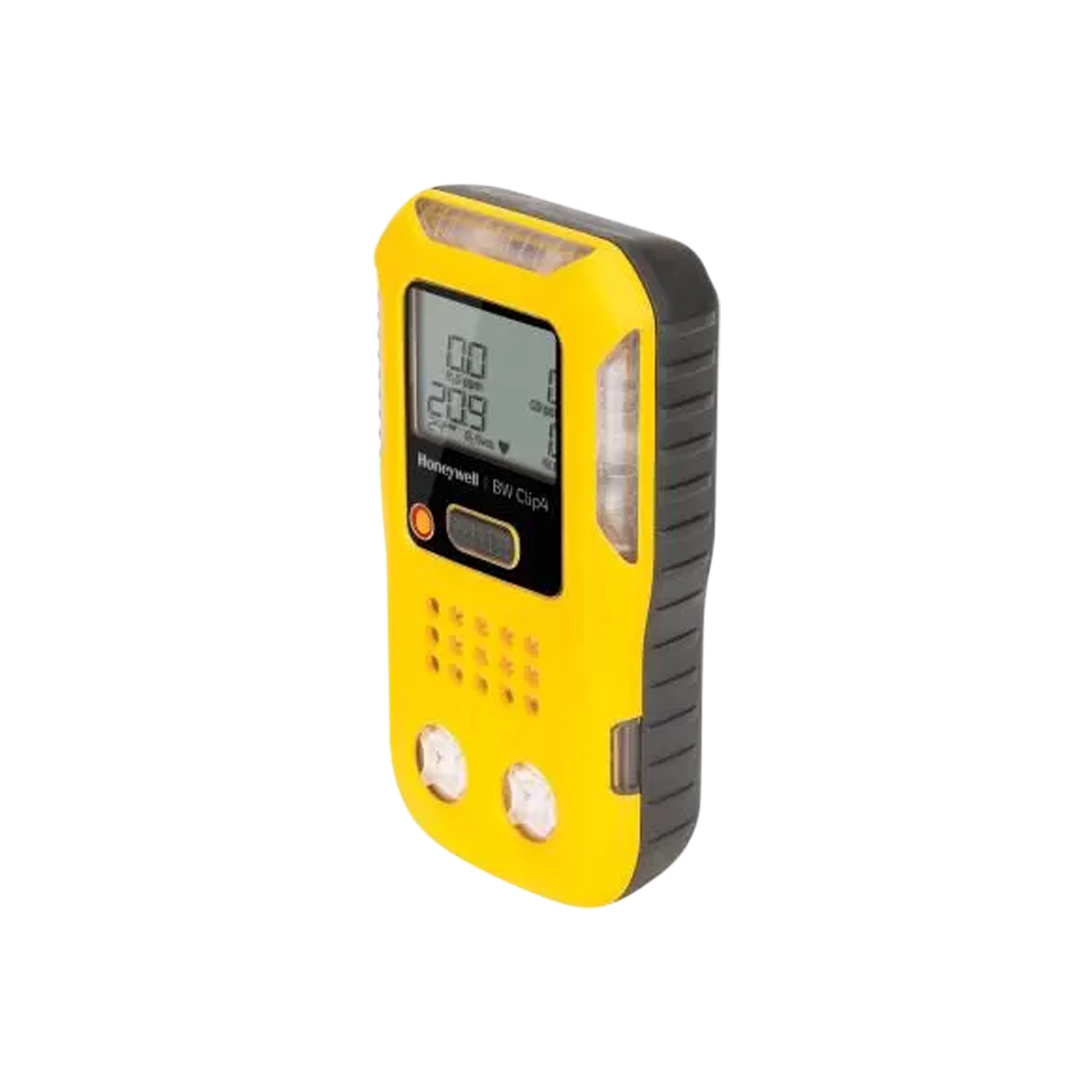

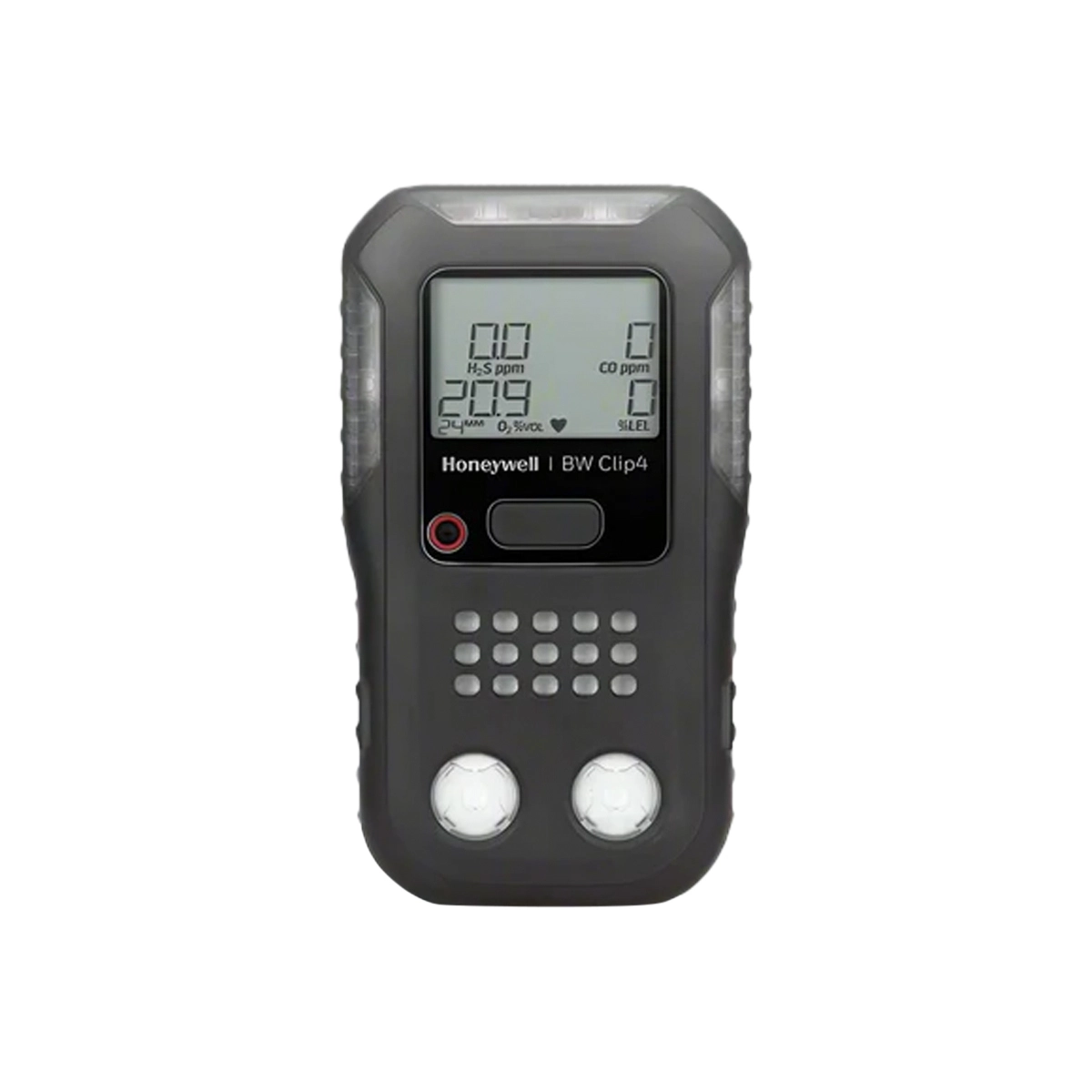

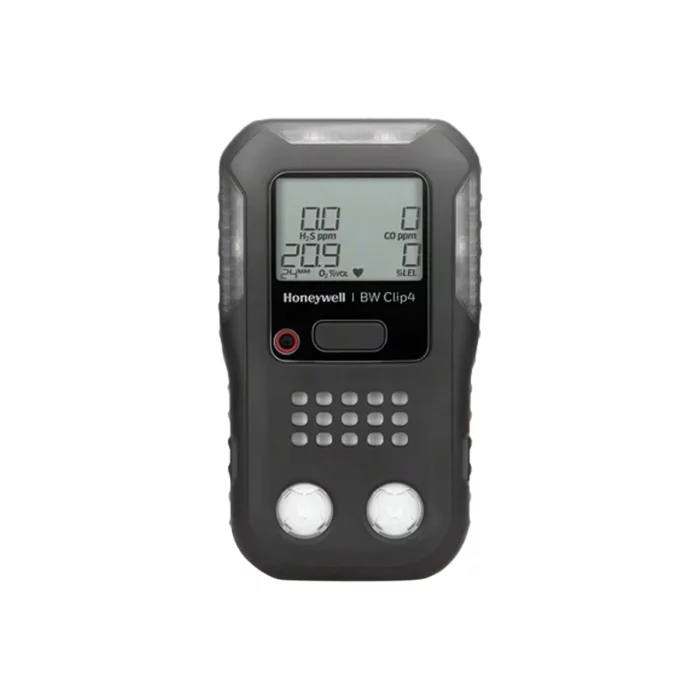

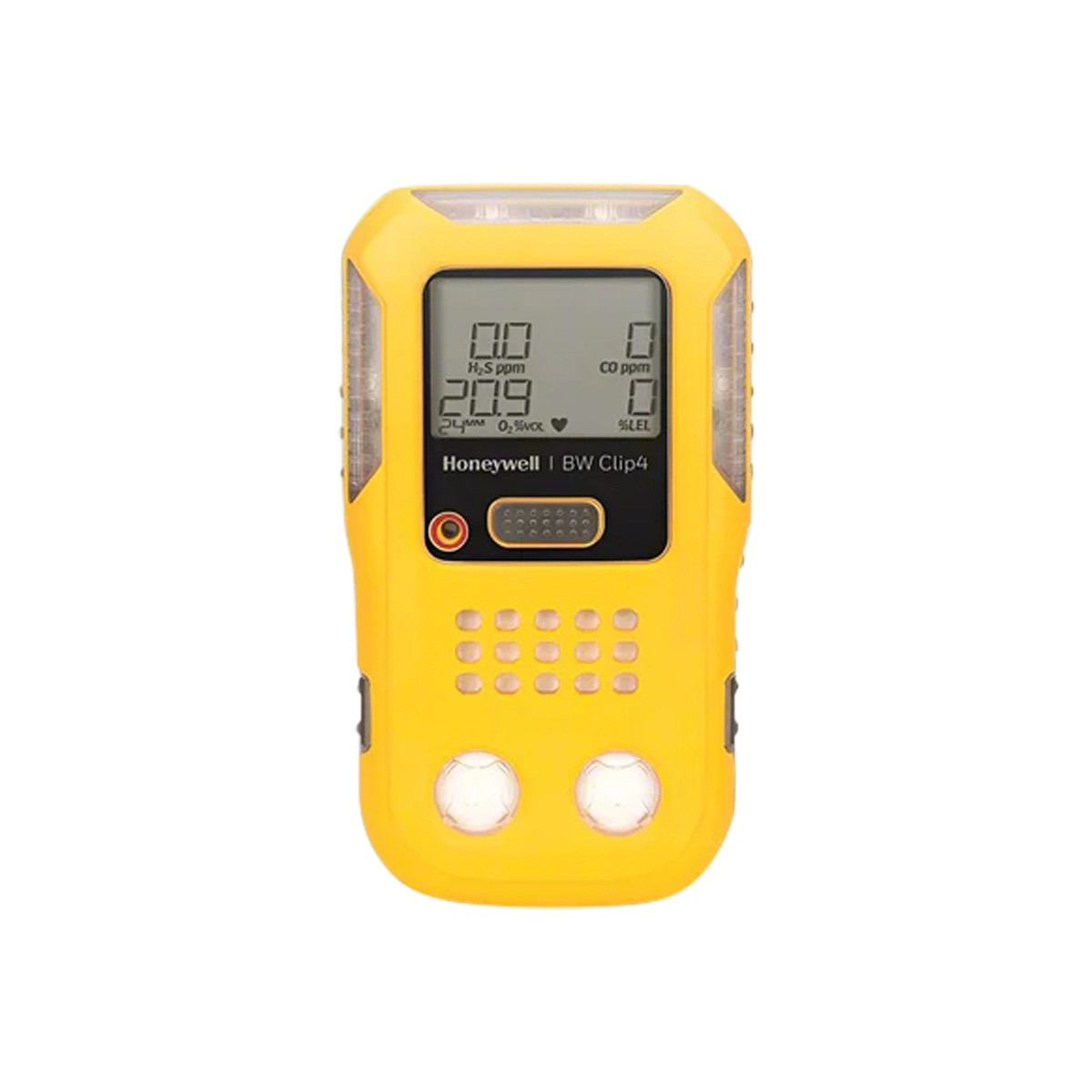

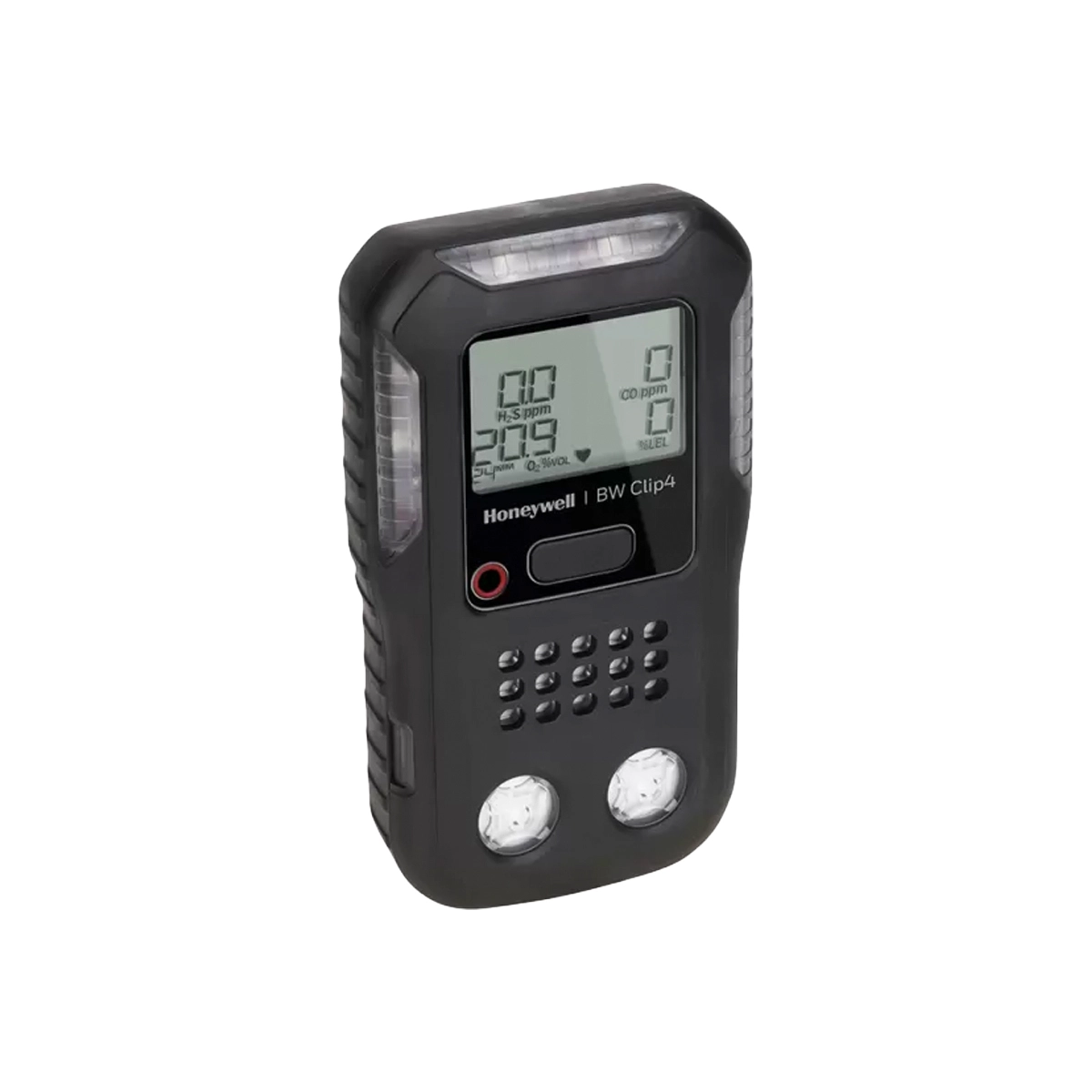

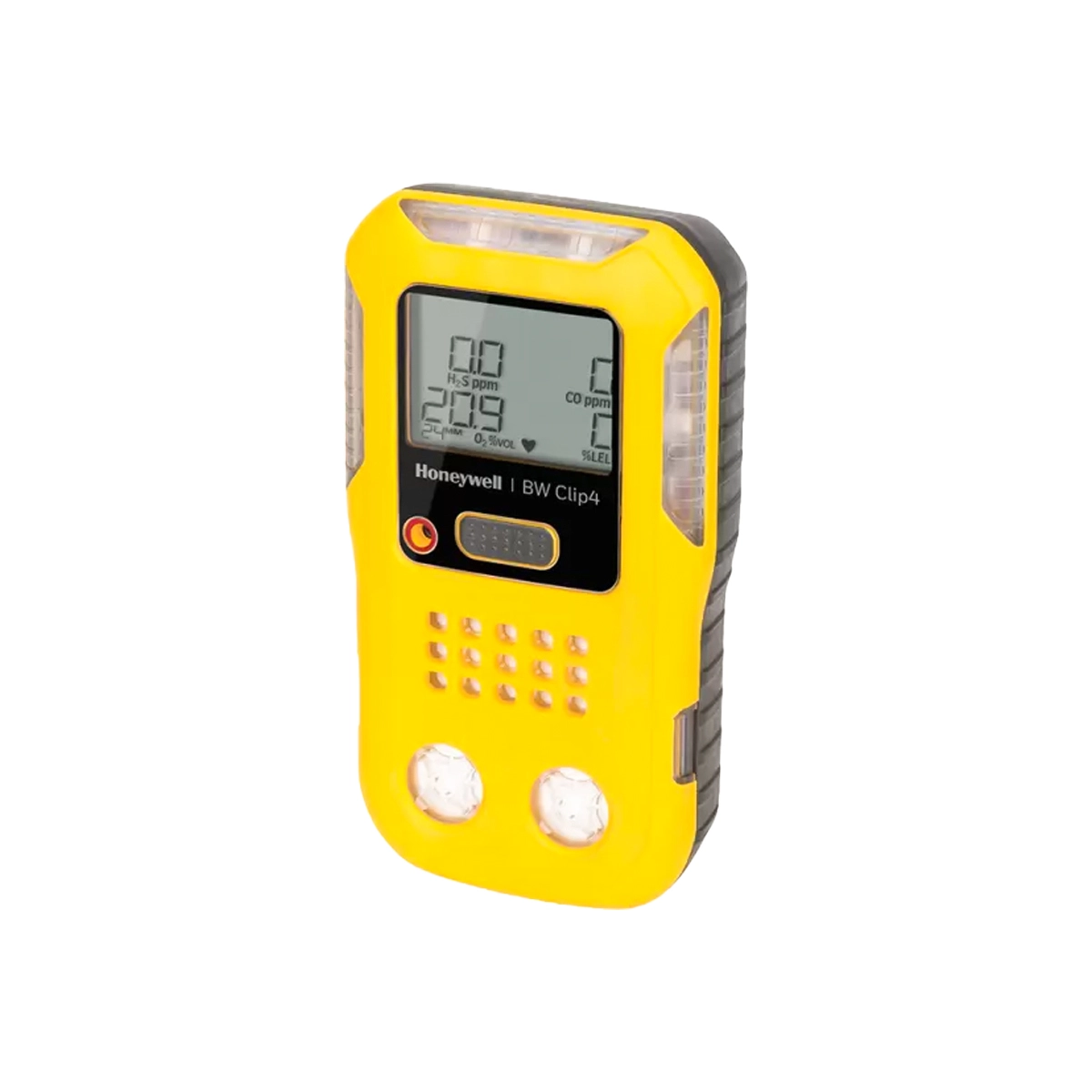

Honeywell BW Clip4

Honeywell BW Clip4 is a wearable four-gas detector intended for continuous personal monitoring of H₂S, CO, O₂ and combustible gases in industrial environments. Once activated, it runs continuously for a full two-year period with no need to charge the instrument, replace batteries or change sensors. At the end of its service life, the detector is simply removed from service and replaced, avoiding the cost, administration and downtime associated with conventional multi-gas instruments.

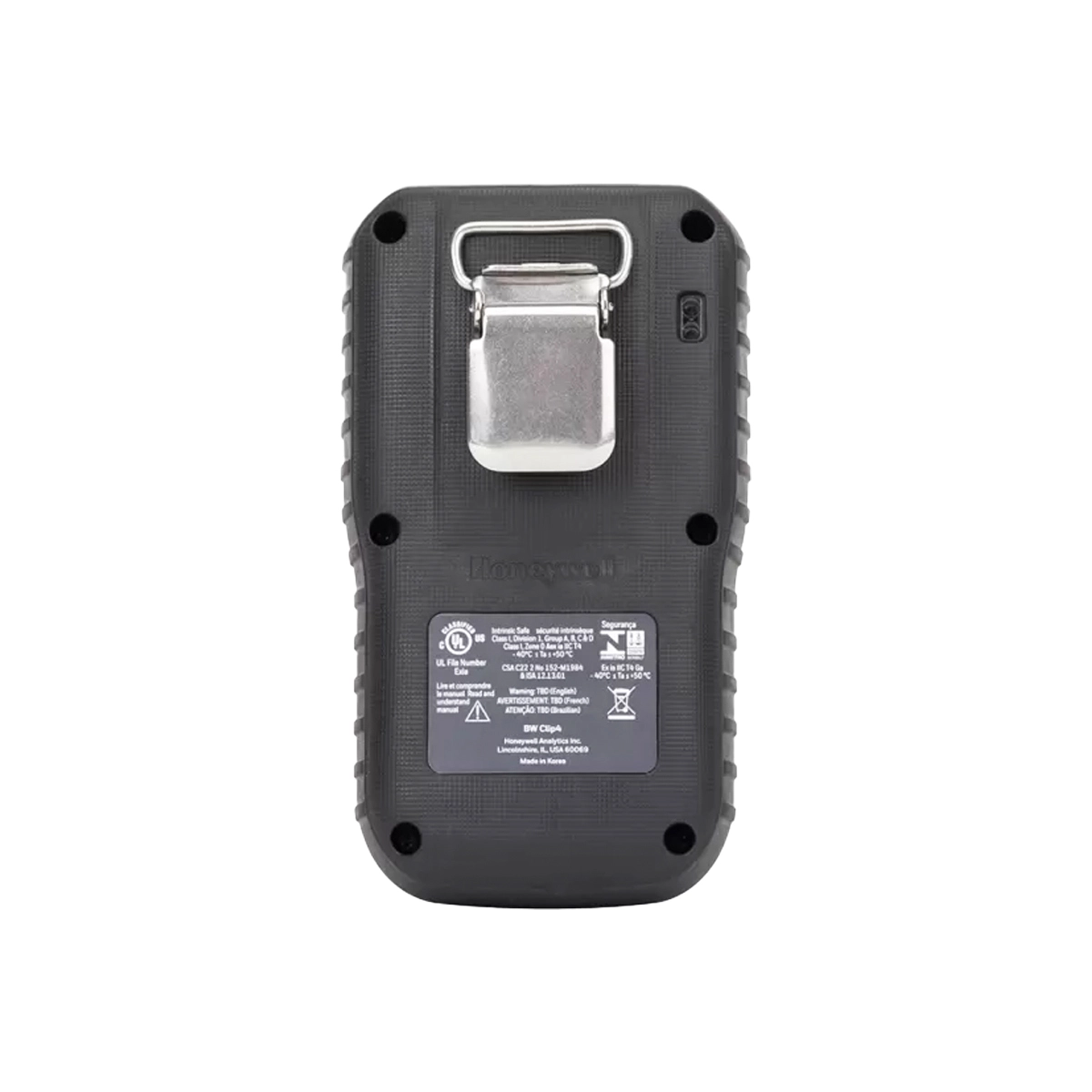

Supplied ready to use with all sensors, a built-in two-year battery and a stainless steel alligator clip, the detector can be deployed quickly across crews and sites. This supports consistent, everyday gas protection without the logistical burden of spares management, battery inventory or scheduled service visits.

The detector is engineered for continuous wear near the breathing zone, clipped to clothing, belts or harnesses. Its compact, lightweight and ergonomic design reduces user fatigue on long shifts and makes it suitable for movement in tight or confined spaces. High-visibility housing options assist supervisors in confirming that personnel are equipped before they enter hazardous areas.

A built-in concussion-proof boot adds mechanical robustness against drops and knocks, while the IP68 ingress protection rating provides strong resistance to dust and water. Proven performance across a wide operating temperature range and high humidity conditions makes the Honeywell BW Clip4 suitable for demanding process plants, upstream and downstream energy sites, utilities, construction and other harsh outdoor or indoor worksites.

For combustible gas measurement, Honeywell BW Clip4 uses infrared sensor technology, which enhances stability and reduces susceptibility to poisoning in challenging atmospheres. Detection ranges are set for typical industrial safety requirements for H₂S, CO, O₂ and LEL, helping protect personnel where explosive or toxic gases may be present.

The detector incorporates a triple alarm system—audible (approximately 95 dB), visual and vibrating—to help ensure that hazardous conditions are noticed even in noisy environments or when visibility is limited. It supports Low, High, TWA, STEL and Over Limit alarm thresholds, enabling management of both short-term and time-weighted exposure risks. A latching alarm option can be enabled where policies require deliberate acknowledgement of events before instruments return to normal operation.

All routine interaction with Honeywell BW Clip4 is handled through a single button, simplifying training and reducing the likelihood of incorrect operation. The tamper-proof interface is designed to prevent unauthorised changes to critical safety settings, supporting standardised configurations across large fleets and multiple locations.

The clear LCD shows real-time gas concentrations, with intuitive icons for instrument status, alarm conditions and key compliance indicators. This enables quick checks during pre-job briefings, at the point of entry or while on task. Where overt audible and visual alarms are not desirable, an optional stealth mode allows more discrete operation while maintaining gas monitoring functions.

Honeywell BW Clip4 incorporates automated self-checking routines to support compliance and reduce manual workload. A daily automatic full-function self-test covers sensors, battery, circuitry and alarms, supplemented by an additional 24-hour internal diagnostic test to verify overall detector integrity. These checks provide ongoing assurance that instruments remain ready for use between scheduled functional tests.

Non-compliance is highlighted clearly: flashing red indicators warn when bump tests are overdue, enabling prompt corrective action before instruments fall out of policy. Internal datalogging stores up to 70 recent events, giving supervisors a traceable record of alarm occurrences and key activities to support incident review and demonstration of due diligence.

Although the detector is maintenance-free throughout its life, it still offers configurable parameters to align with site procedures and risk assessments. User options include adjustment of STEL periods, calibration intervals, span levels and bump test intervals. Sensors can be enabled or disabled individually to match specific tasks or locations, supporting focused detection where only a subset of gases is of concern.

For combustible gas measurement, Honeywell BW Clip4 can be configured either for a standard 0–100% LEL scale or for methane 0–5.0% v/v, enabling alignment with local measurement practices and permit-to-work requirements. This configurability allows organisations to standardise on a single detector type while accommodating different operational profiles and contracts.

Honeywell BW Clip4 is compatible with IntelliDoX docking stations, enabling automated bump tests and calibration routines. This reduces manual handling, supports consistent application of test procedures and provides clear pass/fail feedback for users. IntelliDoX and associated systems facilitate fleet-wide instrument management and record keeping, making it easier to track device status, manage test schedules and generate compliance reports.

Where available, connection to Honeywell Safety Suite software allows download and management of detector data, giving safety teams greater visibility of alarm events, testing history and instrument utilisation across sites. As part of Honeywell’s broader portable and fixed gas detection portfolio, the Honeywell BW Clip4 supports a unified approach to gas safety, from individual workers through to plant-wide monitoring.

The detector carries major global hazardous area approvals and is CE compliant for use in relevant European markets, supporting deployment in classified zones across multiple regions. A full two-year warranty that covers both sensors and battery for the entire life of the unit reinforces confidence in long-term performance and predictable ownership cost.

Typical applications include confined space entry, routine inspection rounds, maintenance work and general personal monitoring in refineries, chemical plants, pipelines, storage facilities, utilities and other sites where explosive atmospheres or toxic gas risks may be present. As a disposable, multi-gas, personal safety device, Honeywell BW Clip4 helps organisations raise the standard of everyday worker protection while keeping gas detection programmes straightforward and cost-effective.

For detailed technical data, consult the Specifications tab.
