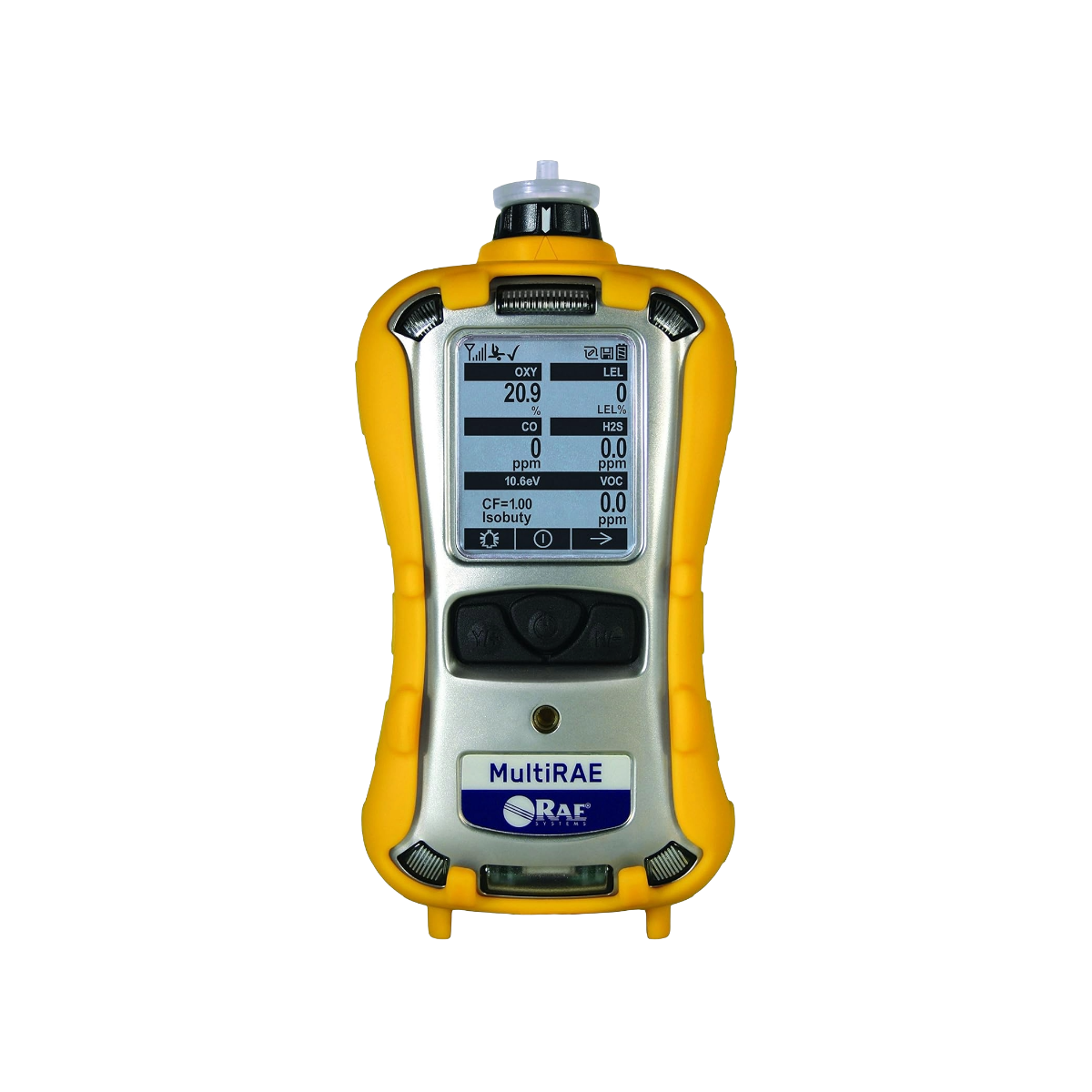

RAE Systems MultiRAE - Image 1
Click to enlarge

RAE Systems MultiRAE

RAE Systems

From £3,200.00 (inc. VAT £3,840.00)

Buy Hire
Make Enquiry

Sales - [email protected]
Hire - [email protected]

ShipServ

Approved Supplier

12-Month

Certified Calibration

Fast Shipping

To Ports Worldwide

Contact Us

For Custom Orders

Description

RAE Systems MultiRAE is a premium portable multi-gas and chemical detector for hazardous areas, combining wireless networking with advanced VOC monitoring.

The RAE Systems MultiRAE is a premium, pumped portable multi-gas and chemical detector for personal protection and industrial hygiene in demanding, classified environments. It supports up to six gas channels with intelligent, field-interchangeable sensors, delivering flexible coverage of VOCs, combustible gases, oxygen and key toxic gases in one platform. With optional wireless connectivity for real-time remote visibility, class-leading runtime options and a rugged, IP65-rated design, MultiRAE helps organisations protect workers, coordinate incident response and standardise multi-gas monitoring across complex sites.

AT A GLANCE

  • Flexible six-gas platform: Configurable sensor slots and extensive sensor libraries support VOCs, combustibles, oxygen and a wide range of toxic gases.
  • Real-time wireless visibility: Optional integrated wireless links readings and alarms to remote software and handheld devices for improved situational awareness.
  • Rugged, shift-ready design: IP65-rated housing, multiple battery options and an integrated pump support long-duration use in harsh industrial environments.
  • Streamlined maintenance and compliance: Intelligent plug-and-play sensors, extended datalogging and automated bump test/calibration workflows reduce downtime and support documentation.

For detailed technical data, consult the Specifications tab.

Overview of RAE Systems MultiRAE

Configurable multi-gas monitoring on a single platform



The RAE Systems MultiRAE is designed as a premium solution for organisations that need advanced protection for personal exposure monitoring and industrial hygiene surveys. It supports up to six total gas channels via a combination of five individual sensors plus a combination sensor, allowing one detector to replace multiple single-purpose instruments. Around 25 intelligent, field-interchangeable sensor options cover VOCs, combustible gases, oxygen, carbon dioxide and a wide range of toxic gases, enabling each unit to be configured for specific processes, areas or response teams.

This platform approach helps standardise on a single detector type across the site, simplifying training, reducing spares inventory and making redeployment between tasks straightforward. Extensive on-board gas libraries further streamline setup and gas selection, supporting rapid adjustment to changing hazards in oil and gas, chemical, environmental, pharmaceutical and other industrial applications.

Advanced VOC performance with integrated PID



An integrated photoionisation detector provides one of the broadest VOC measurement ranges in its class, making MultiRAE well-suited to leak detection, environmental clean-up, fracking operations and clandestine laboratory response. On-screen indication of PID gas type and correction factor supports informed interpretation of readings across a variety of VOCs, helping industrial hygienists and safety specialists maintain confidence in data during dynamic field operations.

Wireless connectivity for coordinated incident response



Optional integrated wireless capability turns MultiRAE into a node in a real-time safety network. Wireless data and alarm transmission via the built-in RF modem supports multiple communication options and integration with compatible Honeywell platforms, ProRAE Guardian and EchoView Host-based networks. This enables safety officers and incident commanders to view live readings, alarm status and Man Down events from significant distances, improving situational awareness, supporting faster decisions and reducing the need to place additional personnel into hazardous areas.

Designed for harsh, hazardous environments



MultiRAE combines a compact, ergonomic form factor with robust construction for demanding industrial and outdoor use. The IP65-rated housing resists dust and water, including hose-down jets, while wide operating temperature and humidity tolerances support deployment in diverse climates. Comprehensive international approvals for use in classified hazardous locations, together with testing to demanding military and EMI/EMC standards, underpin suitability for explosive atmospheres and mission-critical environments.

Local and remote alerting are supported by a five-way alarm system combining a loud audible alarm, high-visibility flashing LEDs, vibration, on-screen indicators and a dedicated Man Down Alarm with pre-alarm and wireless notification. This ensures that alarms are noticed promptly, even in noisy, low-visibility or high-stress situations.

Clear interface and comprehensive status information



The MultiRAE interface is designed to minimise training time and user error. A large monochrome graphic LCD with automatic screen flip provides clear visibility in multiple orientations, while large, glove-friendly buttons support confident operation even when wearing multiple layers of PPE. Real-time gas readings are presented alongside STEL, TWA, peak and minimum values, giving a clear picture of both instantaneous and cumulative exposure.

Additional on-screen indicators display PID gas type and correction factor, battery level, wireless connection and signal quality, datalogging activity, Man Down status and overall compliance state. This consolidated status view assists both instrument users and supervisors in assessing instrument readiness and worker safety at a glance.

Integrated pump and remote sampling



The built-in sample pump delivers approximately 250 cc/min flow with automatic shutoff under low-flow conditions, protecting the pump and helping maintain sampling integrity. When used with appropriate probes and tubing, the detector can draw samples from extended distances, supporting confined space entry, remote leak checks and pre-entry testing of tanks, pits, voids and other hard-to-reach locations without exposing personnel unnecessarily.

Power options, datalogging and fleet efficiency



Multiple power options, including standard and extended-duration Li-ion batteries and an AA alkaline adapter, provide flexible runtime combinations of around 6, 12 or 18 hours. This enables safety managers to align detector runtime with shift patterns, planned shutdowns or extended response operations, reducing the risk of unexpected instrument loss during critical tasks.

Continuous datalogging supports up to several months of operation at typical settings, with user-configurable logging intervals to balance data resolution against storage requirements. Integration with Honeywell device management platforms allows configuration management, data download, maintenance scheduling and fleet oversight from a central point, helping to keep large deployments aligned with site standards.

Smart sensors, automated testing and deployment options



Intelligent plug-and-play sensors store their own calibration data, enabling fast field replacement without specialist tools and reducing downtime during maintenance. When combined with the AutoRAE 2 Test and Calibration System, MultiRAE supports automatic bump testing and calibration, standardising maintenance routines and supporting compliance across fleets of instruments. Manual calibration workflows are also supported for sites without automated systems.

PC connectivity via desktop charging/communication cradles or travel chargers provides straightforward access for configuration changes, data retrieval and firmware updates. A wide language set supports multinational workforces, while optional confined space entry kits, calibration kits and a broad accessory ecosystem of probes, batteries, chargers and carry cases allow each deployment to be tailored to specific tasks.

With robust warranty coverage on key sensors and core components and strong OEM and partner support, the RAE Systems MultiRAE is positioned as a professional-grade detector for oil and gas, chemical, environmental, pharmaceutical, marine, aviation and emergency response organisations that require high-performance, configurable multi-gas and chemical monitoring.

Specifications
Size 7.6" H × 3.8" W × 2.6" D (193 × 96.5 × 66 mm)
Weight 31 oz (880 g)
Sensors 25 intelligent interchangeable field-replaceable sensors including PID for VOCs, electrochemical sensors for toxic gases and oxygen, combustible LEL and NDIR sensors, and CO2 NDIR sensor
Battery Options, Runtime⁵ and Recharge Time Rechargeable Li-ion (~12-hr. runtime, < 6-hr. recharge time)
Extended duration Li-ion (~18-hr. runtime, < 9-hr. recharge time)
Alkaline adapter with 4 × AA batteries (~6-hr. runtime)
Display Monochrome graphical LCD display (128 × 160) with backlighting. Automatic screen "flip" feature.
Display Readout Real-time reading of gas concentrations; PID measurement gas and correction factor; Man Down Alarm on/off; visual compliance indicator; battery status; datalogging on/off; wireless on/off and reception quality.
STEL, TWA, peak, and minimum values
Keypad Buttons 3 operation and programming keys (Mode, Y/+, and N/-)
Sampling Built-in pump. Average flow rate: 250 cc/min. Auto shutoff in low-flow conditions
Calibration Automatic with AutoRAE 2 Test and Calibration System or manual
Alarms Wireless remote alarm notification; audible (95 dB @ 30 cm), vibration, visible (flashing bright red LEDs), and on-screen indication of alarm conditions
Man Down Alarm with pre-alarm and real-time remote wireless notification¹
Datalogging Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7)
User-configurable datalogging intervals (from 1 to 3,600 seconds)
Communication and Data Download Data download and instrument set-up and upgrades on PC via desktop charging and PC comm. cradle, travel charger, or AutoRAE 2 Automatic Test and Calibration System
Wireless data and alarm status transmission via built-in RF modem (optional)
Wireless Network ProRAE Guardian Real-Time Wireless Safety System or EchoView Host-based Closed-Loop System
Wireless Range (Typical) MultiRAE to RAELink3 [Z1] Mesh modem ~330 feet (100 meters)
MultiRAE to EchoView Host, RAEMesh Reader or RAEPoint ~660 feet (200 meters)
MultiRAE to Wi-Fi Access Point ~330 feet (100 meters)
Operating Temperature -4° to 122°F (-20° to 50°C)
Humidity 0% to 95% relative humidity (non-condensing)
Dust and Water Resistance IP-65 ingress protection rating (dust-tight and waterproof against hosing jets coming from all directions)
Safety Certifications CSA: Class I, Division 1, Groups A, B, C and D, T4 / Class II, Division 1; Groups E, F, G; T85°C
ATEX: 0575 II 1G Ex ia IIC T4 Ga / 2G Ex ia d IIC T4 Gb with IR Sensor installed / I M1 Ex ia I Ma
IECEx: Ex ia IIC T4 Ga / Ex ia d IIC T4 Gb with IR Sensor installed / I M1 Ex ia I Ma
IECEx/ANZEx: Ex ia IIC T4 Ga / Ex ia d IIC T4 Gb with IR Sensor installed / Ex ia I Ma
EMC/RFI EMC directive: 2004/108/EC
Performance Tests MIL-STD-810G and 461F compliant. LEL CSA C22.2 No. 152; ISA-12.13.01
Languages Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, and Turkish
Warranty Four years on Liq O2 sensors
Three years on CO and H2S sensors
Two years on non-consumable components and catalytic LEL sensors
One year on all other sensors, pump, battery, and other consumable parts
Wireless Frequency ISM license free band. IEEE 802.15.4 Sub 1GHz, Wi-Fi 802.11 b/g
Wireless Approvals FCC Part 15, CE R&TTE, Others⁶
Radio Module Supports RM900A

¹ Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.

² RAE Systems recommends calibrating sensors on installation.

³ A two-gas combination sensor is required for a 6-gas configuration.

⁴ Specifications are subject to change.

⁵ Specification for non-wireless monitors.

⁶ Contact RAE Systems for country specific wireless approvals and certificates.

Gases
Gas Range Resolution
VOC 10.6 eV (Ext. Range) - PID 0 to 5,000 ppm 0.1 ppm
Catalytic LEL 0 to 100% LEL 1% LEL
NDIR (0-100% LEL Methane) 0 to 100% LEL 1% LEL
NDIR (0-100% Vol. Methane) 0 to 100% Vol. 0.1% Vol.
Carbon Dioxide (CO2) NDIR 0 to 50,000 ppm 100 ppm
Ammonia (NH3) 0 to 100 ppm 1 ppm
Carbon Monoxide (CO) 0 to 500 ppm 1 ppm
Carbon Monoxide (CO), Ext. Range 0 to 2,000 ppm 10 ppm
Carbon Monoxide (CO), H2-Comp. 0 to 2,000 ppm 10 ppm
Carbon Monoxide (CO) + Hydrogen Sulphide (H2S) Combo 0 to 500 ppm
0 to 200 ppm		 1 ppm
0.1 ppm
Chlorine (Cl2) 0 to 50 ppm 0.1 ppm
Chlorine Dioxide (ClO2) 0 to 1 ppm 0.03 ppm
Ethylene Oxide (ETO-A) 0 to 100 ppm 0.5 ppm
Ethylene Oxide (ETO-B) 0 to 10 ppm 0.1 ppm
Formaldehyde (HCHO) 0 to 10 ppm 0.05 ppm
Hydrogen Cyanide (HCN) 0 to 50 ppm 0.5 ppm
Hydrogen Sulphide (H2S) 0 to 100 ppm 0.1 ppm
Methyl Mercaptan (CH3-SH) 0 to 10 ppm 0.1 ppm
Nitric Oxide (NO) 0 to 250 ppm 0.5 ppm
Nitrogen Dioxide (NO2) 0 to 20 ppm 0.1 ppm
Oxygen (O2) 0 to 30% Vol. 0.1% Vol.
Oxygen (Liq O2) 0 to 30% Vol. 0.1% Vol.
Phosphine (PH3) 0 to 20 ppm 0.1 ppm
Phosphine (PH3 H) 0 to 20 ppm 0.1 ppm
Sulphur Dioxide (SO2) 0 to 20 ppm 0.1 ppm
Part Numbers
