RAE Systems MultiRAE Lite multi-gas detector monitors up to six gases with interchangeable sensors, real-time connectivity, and hazardous area certification for industrial safety.
Click to enlarge

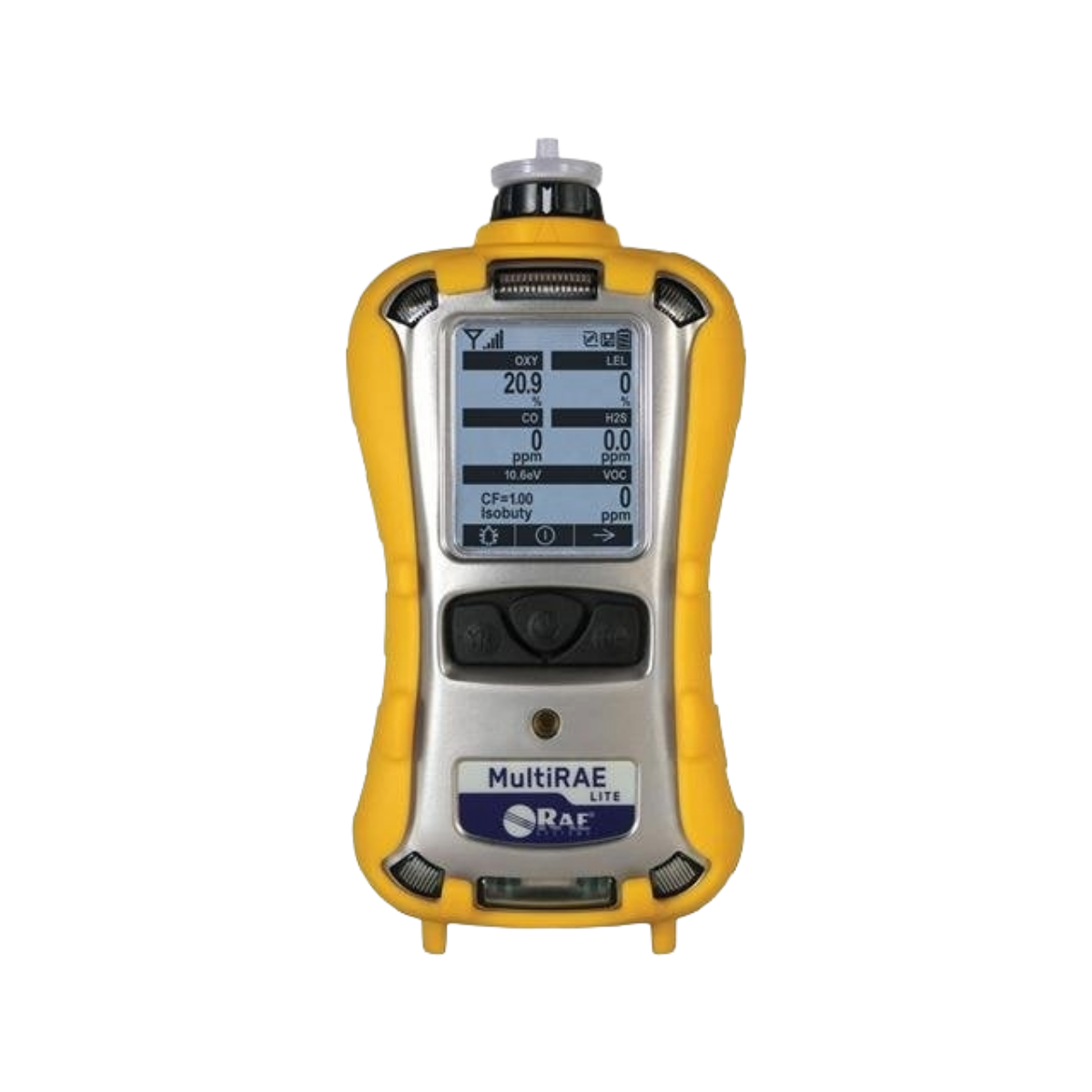

RAE Systems MultiRAE Lite

RAE Systems

From £2,185.00 (inc. VAT £2,622.00)

Buy Hire
Make Enquiry

Sales - [email protected]
Hire - [email protected]

ShipServ

Approved Supplier

12-Month

Certified Calibration

Fast Shipping

To Ports Worldwide

Contact Us

For Custom Orders

Description

RAE Systems MultiRAE Lite is a portable, wireless multi-gas detector for hazardous areas, combining broad sensor flexibility with connected safety.

The RAE Systems MultiRAE Lite is a wireless, portable multi-gas detector that monitors up to six gases simultaneously for personal protection and leak detection in demanding industrial environments. Its highly configurable platform supports a wide choice of intelligent, interchangeable sensors, alongside pumped and diffusion variants, to cover diverse processes and applications. Real-time wireless connectivity, robust multi-channel alarms, and extensive certifications help safety teams respond faster, standardise on a single detector family, and maintain compliance across complex, multi-site operations.

AT A GLANCE

  • Flexible multi-gas platform: Monitors up to six gases with a broad selection of intelligent, interchangeable sensors for different hazards and applications.
  • Pumped and diffusion models: Supports remote sampling for confined spaces and efficient personal monitoring for routine surveys and leak detection.
  • Connected safety and alarms: Real-time wireless networking, Man Down functionality, and five-way alarms improve situational awareness and lone-worker protection.
  • Rugged, certified design: Industrial construction, long battery life, and global hazardous area approvals support reliable use in harsh environments.

For detailed technical data, consult the Specifications tab.

Overview of RAE Systems MultiRAE Lite

Comprehensive Multi-Gas Protection on a Single Platform



The RAE Systems MultiRAE Lite provides safety teams with a single, adaptable detector for complex gas hazards. It can monitor up to six gases at once, including VOCs, combustible gases (LEL), a wide range of toxic gases, CO2, and oxygen deficiency or enrichment. With one of the broadest sensor selections in its class and extensive onboard gas libraries within the MultiRAE family, it supports both common four-gas configurations and specialised combinations for challenging chemical environments.

Interchangeable, field-replaceable intelligent sensors store their own calibration data, enabling rapid sensor swaps in the field without specialist tools. This allows organisations to standardise on one detector platform, reduce spares inventory, and adapt to changing processes or regulations without replacing complete instruments.

Adaptable Pumped or Diffusion Operation



The MultiRAE Lite is available in both pumped and diffusion versions to match different tasks and workflows. Pumped models with built-in sampling pumps and strong sample draw are suited to pre-entry and remote sampling of confined spaces, tanks, pits, and other hard-to-reach locations, with automatic low-flow shutoff to protect the pump and ensure measurement integrity. Diffusion models provide lighter, simpler personal monitoring for routine surveys and general area checks where a pump is not required.

Monitor-only and confined space kits, together with probes, tubing, hydrophobic filters, and hard transport cases, support turnkey deployment for shutdowns, turnaround activities, field investigations, and mobile crews. This flexibility allows a consistent detector platform to be used across confined space entry, leak survey, environmental remediation, fire overhaul, and urban search and rescue applications.

Intelligent Sensors, Data, and Maintenance Efficiency



Intelligent sensors, a user-replaceable pump, and plug-and-play rechargeable batteries are designed to minimise downtime and simplify maintenance. Automatic bump testing and calibration, particularly when used with AutoRAE 2 automated test and calibration systems, enables consistent, hands-free testing across a fleet and supports compliance with site procedures.

Extensive datalogging capability allows continuous recording of gas concentrations with user-configurable logging intervals. The detector records real-time values alongside STEL, TWA, peak, and minimum readings, with PID correction factors where applicable, creating a robust audit trail for investigations, exposure assessment, and regulatory reporting. Data download, configuration, and firmware updates are handled via desktop charging and PC communication cradles, travel chargers, or AutoRAE 2, helping keep records centralised and up to date.

Connected Safety and Centralised Monitoring



Real-time wireless connectivity transforms the MultiRAE Lite from a standalone detector into a connected safety node. Live gas readings, alarm states, and Man Down events can be transmitted to remote safety teams or command centres, allowing faster, better-informed decisions when conditions change. Optional RF modems, mesh networking, and Wi-Fi, operating in recognised license-free bands with FCC and CE approvals, support flexible coverage on complex sites.

Integration with Honeywell Sotera™ Express / SafetySuite, ProRAE Studio II, ProRAE Guardian, EchoView Host, and compatible systems such as Motorola MOTOTRBO enables fleet management, live monitoring, and data analysis across single or multiple locations. Organisations can select wireless or non-wireless versions to match infrastructure, regulatory requirements, and budget, then scale connectivity as needs evolve.

Unmistakable Alarms and Lone-Worker Protection



The MultiRAE Lite uses a five-way alarm system to ensure hazardous conditions are clearly communicated. A 95 dB audible alarm (at 30 cm), bright red flashing LEDs, strong vibration, and local and remote wireless alarms work together to cut through noise and poor visibility. The integrated Man Down Alarm, with pre-alarm and real-time remote notification when a worker is motionless, enhances protection for lone workers and confined space entrants by helping teams locate and assist affected personnel quickly.

Rugged Design, Certifications, and Power Flexibility



Rugged construction with dust and water ingress protection supports reliable use in harsh indoor and outdoor conditions, while compliance with relevant EMC and performance standards underpins measurement stability in demanding environments. Extensive global hazardous area certifications, including for use in classified locations and across key regions, make the MultiRAE Lite suitable for industries such as oil and gas, chemicals, pharmaceuticals, food and beverage, wastewater treatment, telecommunications, government, and healthcare.

Multiple power options, including standard and extended-duration Li-ion rechargeable batteries plus an AA alkaline adapter, deliver long run-times to cover full shifts and extended incidents. Compact, ergonomic design with a protective rubber boot, belt clip, and robust accessories allows comfortable carrying during intensive field work, helping maintain continuous coverage without adding unnecessary operator burden.

Operator-Friendly Interface and Global Deployment



A large monochrome graphical LCD with backlighting and automatic screen flip provides clear visibility in low light and awkward orientations. An icon-driven interface and three-button keypad enable straightforward operation, even with gloved hands, reducing training time and the likelihood of user error. Multi-language capability across a broad set of languages allows a single instrument platform to support global operations and multilingual teams.

Visual compliance indicators and status icons for battery state, wireless connection, datalogging, and Man Down Alarm make it easy to confirm that the detector is ready for use before entering hazardous areas. Supplied as a complete system, with optional confined space and calibration kits, the RAE Systems MultiRAE Lite supports end-to-end gas detection programmes that improve regulatory compliance, help reduce facility downtime, and enhance worker and environmental protection.

Specifications
Size Pumped model: 7.6" H × 3.8" W × 2.6" D (193 × 96.5 × 66 mm)
Diffusion model: 6.9" × 3.8" × 2.2" (175 × 96.5 × 56 mm)
Weight Pumped model: 31 oz (880 g)
Diffusion model: 26.8 oz (760g)
Sensors Over 25 intelligent interchangeable field-replaceable sensors including PID for VOCs, electrochemical sensors for toxic gases and oxygen, combustible LEL and NDIR sensors, and CO2 NDIR sensor
Battery Options, Runtime⁸ and Recharge Time Rechargeable Li-ion ~12-hr. (pumped)/18-hr. (diffusion) runtime, < 6-hr. recharge time
Extended duration Li-ion ~18-hr. (pumped)/28-hr. (diffusion) runtime, < 9-hr. recharge time
Alkaline adapter with 4 × AA batteries ~6-hr. (pumped)/8-hr. (diffusion) runtime
Display Monochrome graphical LCD display (128 × 160) with backlighting. Automatic screen "flip" feature
Display Readout Real-time reading of gas concentrations; PID measurement gas and correction factor; Man Down Alarm on/off; visual compliance indicator; battery status; datalogging on/off; wireless on/off and reception quality.
STEL, TWA, peak, and minimum values
Keypad Buttons Automatic with AutoRAE 2 Test and Calibration System³ or manual
Sampling Built-in pump or diffusion
Calibration Automatic with AutoRAE 2 Test and Calibration System or manual
Alarms Wireless remote alarm notification; audible (95 dB @ 30 cm), vibration, visible (flashing bright red LEDs), and on-screen indication of alarm conditions
Man Down Alarm with pre-alarm and real-time remote wireless notification²
Datalogging Continuous datalogging (6 months for 5 sensors at 1-minute intervals, 24/7)
User-configurable datalogging intervals (from 1 to 3,600 seconds)
Communication and Data Download Data download and instrument set-up and upgrades on PC via desktop charging and PC comm. cradle, travel charger, or AutoRAE 2 Automatic Test and Calibration System³
Wireless data and alarm status transmission via built-in RF modem (optional)
Wireless Network ProRAE Guardian Real-Time Wireless Safety System or EchoView Host-based Closed-Loop System
Wireless Range (Typical) MultiRAE Lite to RAELink3 [Z1] Mesh modem ~330 feet (100 meters)
MultiRAE Lite to EchoView Host, RAEMesh Reader or RAEPoint ~660 feet (200 meters)
MultiRAE Lite to Wi-Fi Access Point - 330 feet (100 meters)
Operating Temperature -4° to 122°F (-20° to 50°C)
Humidity 0% to 95% relative humidity (non-condensing)
Dust and Water Resistance IP-65 (pumped); IP-67 (diffusion) ingress protection rating
Safety Certifications CSA: Class I, Division 1, Groups A, B, C and D, T4 / Class II, Division 1, Groups E, F, G T85°C
ATEX: 0575 II 1G Ex ia IIC T4 Ga / 2G Ex ia d IIC T4 Gb with IR Sensor installed / I M1 Ex ia I Ma
IECEx: Ex ia IIC T4 Ga / Ex ia d IIC T4 Gb with IR Sensor installed / I M1 Ex ia I Ma
IECEx/ANZEx: Ex ia IIC T4 Ga / Ex ia d IIC T4 Gb with IR Sensor installed / Ex ia I Ma
EMC/RFI⁸ EMC directive: 2004/108/EC
Performance Tests LEL CSA C22.2 No. 152; ISA-12.13.01
Languages Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, and Turkish
Warranty Four years on Liq O2 sensors
Three years on CO and H2S sensors
Two years on non-consumable components and catalytic LEL sensors
One year on all other sensors, pump, battery, and other consumable parts
Wireless Frequency ISM license free band. IEEE 802.15.4 Sub 1GHz - Wi-Fi 802.11 b/g
Wireless Approvals FCC Part 15, CE R&TTE, Others¹⁰
Radio Module Supports RM900A

¹ A two-gas combination sensor is required for a 6-gas configuration.

² Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.

³ AutoRAE 2 supports the MultiRAE Lite pumped version only.

⁴ PID sensor requires a pumped configuration.

⁵ NDIR combustible sensors require a pumped configuration in CSA countries.

⁶ RAE Systems recommends calibrating sensors on installation.

⁷ Specifications are subject to change.

⁸ Specification for non-wireless monitors.

⁹ Supported in MultiRAE Lite Diffusion only.

¹⁰ Please contact RAE Systems for specific wireless approvals

Gases
Gas Range Resolution
VOC 10.6 EV - PID⁴ 0 to 1,000 ppm 1 ppm
Catalytic LEL 0 to 100% LEL 1% LEL
NDIR (0-100% LEL Methane) 0 to 100% LEL 1% LEL
NDIR (0-100% Vol. Methane)⁵ 0 to 100% Vol. 0.1% Vol.
Carbon Dioxide (CO2) NDIR 0 to 50,000 ppm 100 ppm
Ammonia (NH3) 0 to 100 ppm 1 ppm
Carbon Monoxide (CO) 0 to 500 ppm 1 ppm
Carbon Monoxide (CO), Ext. Range 0 to 2,000 ppm 10 ppm
Carbon Monoxide (CO), H2-Comp. 0 to 2,000 ppm 10 ppm
Carbon Monoxide (CO) + Hydrogen Sulphide (H2S) Combo 0 to 500 ppm
0 to 200 ppm		 1 ppm
0.1 ppm
Chlorine (Cl2) 0 to 50 ppm 0.1 ppm
Chlorine Dioxide (ClO2) 0 to 1 ppm 0.03 ppm
Ethylene Oxide (ETO-A) 0 to 100 ppm 0.5 ppm
Ethylene Oxide (ETO-B) 0 to 10 ppm 0.1 ppm
Ethylene Oxide (ETO-C), Ext. Range⁹ 0 to 500 ppm 10 ppm
Formaldehyde (HCHO) 0 to 10 ppm 0.05 ppm
Hydrogen (H2)⁹ 0 to 1,000 ppm 10 ppm
Hydrogen Cyanide (HCN) 0 to 50 ppm 0.5 ppm
Hydrogen Sulphide (H2S) 0 to 100 ppm 0.1 ppm
Hydrogen Sulphide (H2S), Ext. Range⁹ 0 to 1,000 ppm 1 ppm
Methyl Mercaptan (CH3-SH) 0 to 10 ppm 0.1 ppm
Nitric Oxide (NO) 0 to 250 ppm 0.5 ppm
Nitrogen Dioxide (NO2) 0 to 20 ppm 0.1 ppm
Oxygen (O2) 0 to 30% Vol. 0.1% Vol.
Oxygen (Liq O2) 0 to 30% Vol. 0.1% Vol.
Phosphine (PH3) 0 to 20 ppm 0.1 ppm
Phosphine H (PH3 H) 0 to 20 ppm 0.1 ppm
Sulphur Dioxide (SO2) 0 to 20 ppm 0.1 ppm
Part Numbers
MAA3-A2C1112E-020 Pumped, 10.6 eV, Non-Wireless - PID / LEL / H2S / CO / O2
MAA3-A2C1112E-021 Pumped, 10.6 eV, Non-Wireless, Confined Space - PID / LEL / H2S / CO / O2 - Unit with accessories
MAA3-A2C1112E-02G Pumped, 10.6 eV, Non-Wireless, Confined Space Deluxe - PID / LEL / H2S / CO / O2 - Unit with accessories
MAA3-A2C1112E-320 Pumped, 10.6 eV, Wireless - PID / LEL / H2S / CO / O2
MAA3-A2C1112E-321 Pumped, 10.6 eV, Wireless, Confined Space - PID / LEL / H2S / CO / O2 - Unit with accessories
MAA3-A2C1112E-32G Pumped, 10.6 eV, Wireless, Confined Space Deluxe - PID / LEL / H2S / CO / O2 - Unit with accessories
MAA3-A2C1132E-020 Pumped, 10.6 eV, Non-Wireless - PID / LEL / CO + H2S / SO2 / O2
MAA3-A2C1132E-021 Pumped, 10.6 eV, Non-Wireless, Confined Space - PID / LEL / CO + H2S / SO2 / O2 - Unit with accessories
MAA3-A2C1132E-320 Pumped, 10.6 eV, Wireless - PID / LEL / CO + H2S / SO2 / O2
MAA3-A2C1132E-321 Pumped, 10.6 eV PID / LEL / CO + H2S / SO2 / O2, Li-ion, Wireless (868 MHz), Confined Space - Unit with accessories
MAA3-B8C102E-020 Pumped, Non-Wireless - CO2 / LEL / O2 / CO
MAA3-B8C102E-021 Pumped, Non-Wireless, Confined Space - CO2 / LEL / O2 - Unit with accessories
MAA3-B8C102E-320 Pumped, Wireless - CO2 / LEL / O2
MAA3-0EC1132E-020 Pumped, Non-Wireless - O2 / LEL / H2S / CO / SO2
MAA6-B8C101E-020 Diffusion, Non-Wireless - CO2 / LEL / H2S / O2
MAA6-B8C101E-320 Diffusion, Wireless - CO2 / LEL / H2S / O2
MAA6-B8C101E-321 Diffusion, Wireless, Confined Space - CO2 / LEL / H2S / O2 - Unit with accessories
