Description

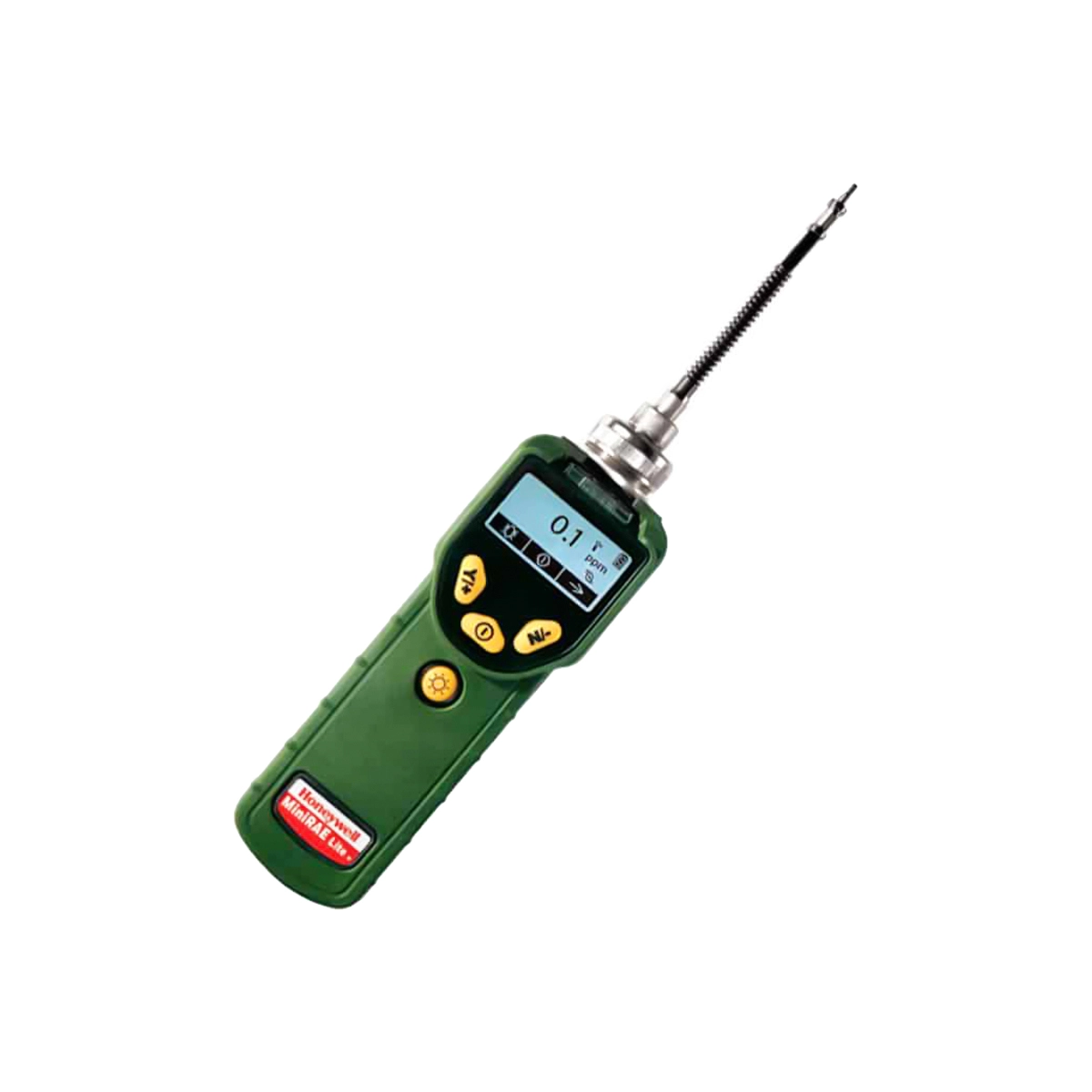

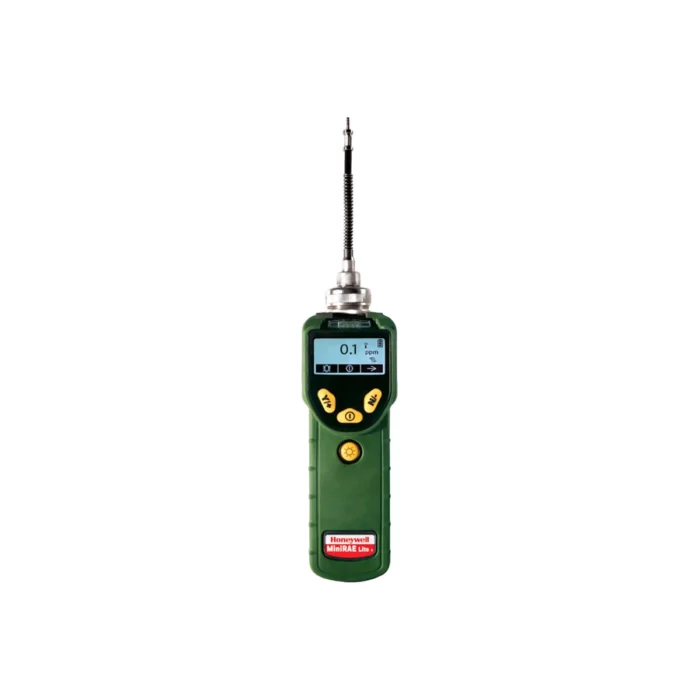

RAE Systems MiniRAE Lite VOC is a handheld PID monitor for VOC leaks in safe and classified areas, with rapid response.
The RAE Systems MiniRAE Lite VOC is an entry-level handheld volatile organic compound (VOC) monitor that combines affordability with proven photoionisation detector (PID) performance. It supports leak detection, environmental remediation and industrial hygiene assessments with fast response, high sensitivity and integrated sampling. A rugged IP65-rated housing, glove-friendly keypad and built-in flashlight suit demanding field conditions, while long runtime and field-interchangeable batteries help keep surveys on schedule. On-board datalogging, clear visual and audible alarms, and optional wireless connectivity support traceable exposure records and informed safety decisions.
AT A GLANCE
- Fast, sensitive VOC detection: Patented PID with 10.6 eV lamp delivers rapid response and high-resolution readings for leak detection and remediation work.
- Field-ready handheld design: IP65 ingress protection, green rubber boot, built-in flashlight and large multi-line display support reliable use in harsh environments.
- Efficient remote sampling: Integrated pump and flexible inlet probe enable sampling from distance and in hard-to-reach locations without unnecessary exposure.
- Low-overhead operation and data: Two-point calibration, tool-free servicing, long battery runtime, extensive datalogging and optional BLE connectivity streamline surveys and reporting.
For detailed technical data, consult the Specifications tab.
Overview of RAE Systems MiniRAE Lite VOC
High-Performance VOC Monitoring in a Compact Platform
The RAE Systems MiniRAE Lite VOC provides a cost-effective route into professional VOC monitoring while retaining the performance expected on industrial and remediation sites. Its patented PID sensor and standard 10.6 eV lamp combine a wide measurement range with high sensitivity and 0.1 ppm resolution in the lower range. A typical 3-second response time supports early leak identification, allowing safety teams to react quickly before conditions deteriorate or work has to be interrupted.
Direct readout of VOC concentration, high and low values, date and time on a clear multi-line graphic display helps engineers interpret conditions at a glance. Humidity compensation built into the PID supports dependable measurements across a wide humidity range, reducing the need for repeat surveys in variable ambient conditions.
Robust, Field-Ready Construction for Demanding Environments
The detector is engineered for tough industrial and field use, with a durable housing and a strong protective green rubber boot that improves grip and impact resistance. IP65 dust and water resistance helps protect internal components when the instrument is used outdoors, in wet areas or in dusty process environments, supporting a longer service life and reducing unplanned repairs.
A built-in flashlight improves visibility around sampling points, particularly in low-light or confined areas such as pipe racks, voids and plant rooms. Oversized keys are designed for operation through up to three layers of gloves, enabling full use of the instrument without compromising personal protective equipment. High resistance to EMI/RFI and compliance with relevant EMC requirements supports stable operation around electrical equipment and radio systems.
Efficient Remote Sampling and Stable Readings
The integrated pump draws samples from up to 30 m away, horizontally or vertically, extending the reach of surveys without requiring personnel to approach every sampling point. The supplied flexible inlet probe (Flex-I-Probe / Flexi-Probe) allows access into tight or awkward spaces, while the external filter system with porous metal filters and O-rings helps protect the pump and PID sensor from particulates.
Pump low-flow detection with auto shut-off, supported by on-screen pump stall messages, alerts users when sampling conditions are compromised so that corrective action can be taken immediately. Together with the humidity-compensated PID, these features help maintain data quality and confidence in survey results.
Simplified Operation, Calibration and Maintenance
The MiniRAE Lite VOC is designed for straightforward deployment across mixed workforces. Multi-language support (with 10–12 languages encoded) helps reduce training overheads and supports consistent operation across international sites. Simple two-point calibration (zero and span) with AutoZero functionality allows routine calibration to be carried out quickly, and optional calibration kits with isobutylene gas, regulator and flow controller provide a complete on-site calibration and bump-test solution.
Duty-cycling auto-cleaning technology on the lamp and sensor reduces contamination build-up, extending intervals between manual cleaning and helping to sustain sensor stability. When servicing is required, tool-free access to the PID lamp and sensor in seconds minimises downtime and enables many maintenance tasks to be completed in the field. The field-interchangeable battery pack, which supports both alkaline battery adapters and external field-replaceable lithium-ion packs, can also be swapped without tools. Typical runtime of about 12 hours on either power option supports full-shift operation without frequent changes or charging.
Alarms, Data and Connectivity for Better Safety Decisions
The instrument is equipped with a loud audible alarm (around 95 dB) and bright red flashing LEDs to provide clear indication of hazardous conditions, even in noisy or visually cluttered environments. Configurable low and high alarm setpoints, each with distinct beep and flash patterns, allow personnel to distinguish between warning and critical levels at a glance. Alarm latching, with options for manual override or automatic reset, can be configured to align with site safety procedures.
Additional diagnostic indications, including low battery warnings and pump stall alerts, help ensure that issues affecting performance are identified promptly. Standard datalogging captures up to several months of readings at typical one-minute intervals, providing a detailed record to support leak investigations, exposure assessment and compliance reporting. Data download to a computer is supported via appropriate software or Safety Suite subscription on relevant models.
Where required, an optional BLE (Bluetooth Low Energy) module enables wireless connectivity. Combined with a dedicated mobile application, this supports survey and mapping workflows, allowing VOC data to be associated with specific locations and enhancing documentation of leak detection and environmental remediation activities.
Configurable Platform for Multiple Sites and Applications
The MiniRAE Lite VOC is used across leak detection, environmental clean-up, construction, energy and government or public-sector industrial hygiene tasks. It is available in both non-ATEX configurations for safe areas and ATEX-certified variants for use in designated hazardous locations, and selected models carry recognised safe-area approvals. This enables organisations to standardise VOC monitoring on a single platform across sites with differing area classifications.
Multiple configuration codes and package options allow the detector to be tailored to project needs. Monitor-only versions suit users who already hold compatible accessories, while accessory kits add a hard transport case, filters, tubing and zeroing components for a more complete field solution. Calibration kits include the gas and regulators required for ongoing functional checks and calibration. Combined with typically available technical support, product training and demonstration services from distributors, this flexibility helps reduce the number of instruments and SKUs required while aligning VOC monitoring capability with site risk profiles and budgets.
