Honeywell Vertex Edge

Honeywell Vertex Edge is designed for semiconductor fabs and other high‑tech manufacturing environments where extremely toxic and corrosive gases are critical to production. Authentic Chemcassette® tape technology provides highly accurate, ultra‑low‑level detection down to parts per billion, enabling early identification of small leaks before they escalate into safety events, contamination issues or unplanned tool shutdowns. The system supports more than 40 toxic gases, including demanding families such as ammonia, hydrides and mineral acids, with configurable universal Chemcassette® analyzers that can be set for different gas types as processes change.

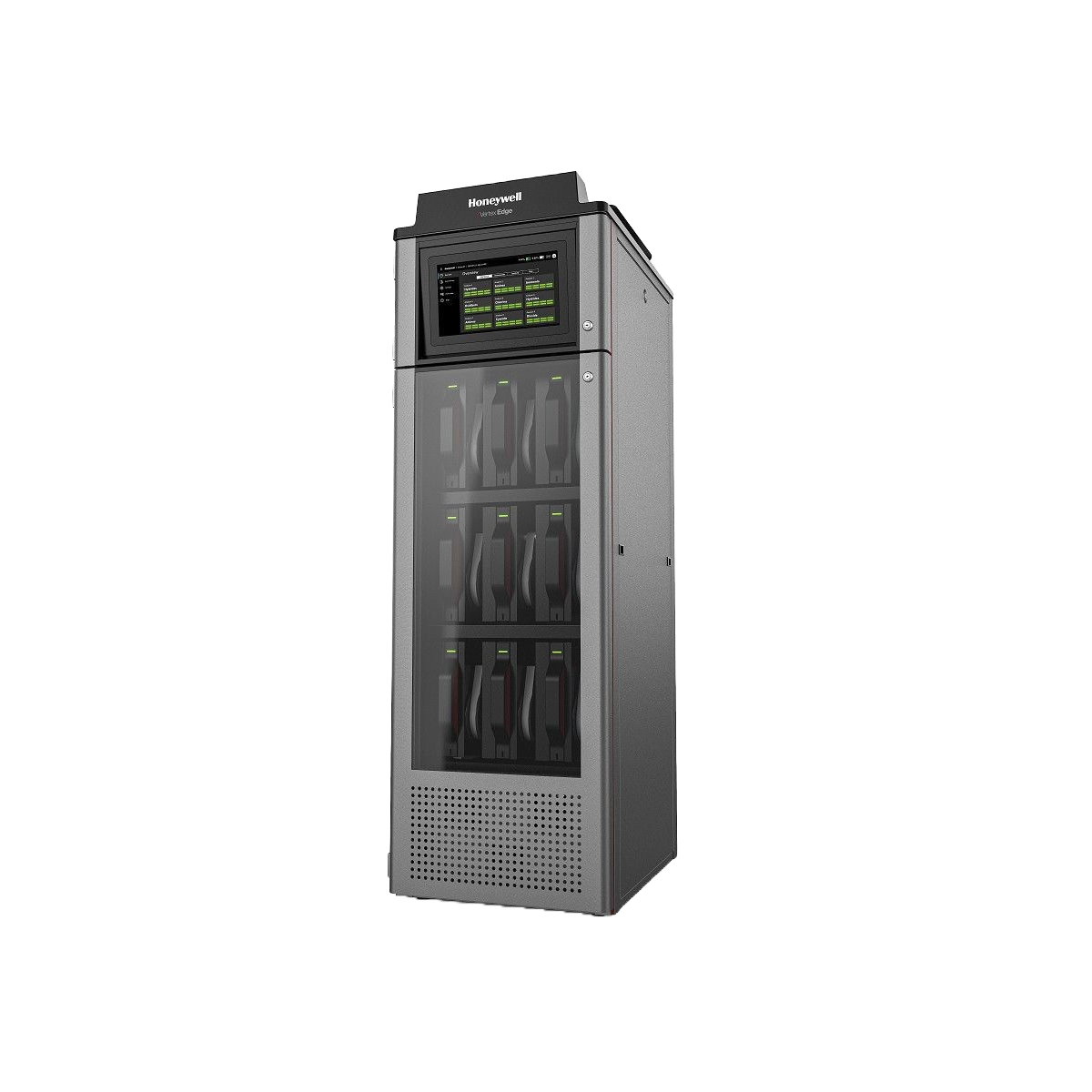

The modular design of Honeywell Vertex Edge supports up to nine Chemcassette® analyzers, each offering eight sampling points, for a total of up to 72 detection points in a single rack. This high channel density is delivered in a compact, small‑footprint enclosure that fits sub‑fabs, chases and congested service areas where space is limited.

Sampling points can be located up to 400 ft (120 m) from the monitor, allowing inlets to be positioned at gas cabinets, valve manifold boxes, exhaust ducts and process tools without relocating the central rack. A high‑performance transport system with a 2.1 LPM flow rate delivers transport times of less than 50 seconds over long tube runs, supporting timely alarms in complex layouts. The base rack and universal analyzer modules are sold separately, so systems can be configured for current requirements and then expanded in the field as new tools, production lines or gas types are introduced.

Honeywell Vertex Edge is engineered to reduce lifecycle cost compared with the original Honeywell Vertex™ system, starting with a lower initial system price. Extended‑life Chemcassette® tapes for ammonia, hydrides and mineral acids last six months instead of three, halving tape replacement frequency. This reduces consumable use, technician intervention and scheduled interruptions to monitoring.

Redundant and backup pumps within the rack maintain gas sampling in the event of a pump fault, helping to avoid gaps in protection. Internal power modules and system data backup allow monitoring, data recording and PLC reporting to continue even if the main data acquisition PC fails, supporting safe operation during IT maintenance or hardware issues. Together, these features help minimise unplanned downtime and support continuous fab operation.

Service has been simplified through a front‑access design: power and data connections, the touchscreen and analyzers are all accessible from the front of the rack, allowing close‑to‑wall installation. A pullout tray for pumps streamlines pump replacement, while organised tube management helps technicians quickly identify sampling tubes by analyzer for faster fault resolution and new point installation. No‑screw service panels with keylock and latch reduce tool use and speed routine maintenance.

A 15.6″ wide capacitive touchscreen with an anti‑glare LCD provides a clear, glove‑friendly interface for operators, EHS specialists and maintenance personnel. Large icons and an intuitive layout deliver quick visibility of gas readings, alarm states, event logs, real‑time trend data and overall system status. Multi‑colour LEDs on the rack provide immediate visual indication of normal, alarm and fault conditions, supporting rapid situational awareness.

Comprehensive event logging captures maintenance activity, instrument faults and gas alarm history to create robust audit trails for internal reviews and external inspections. Real‑time trend charts and gas event snapshot trends enable fast analysis of incidents, helping teams understand patterns and potential root causes. Configurable event search tools make it straightforward to locate specific alarms or maintenance events, supporting both troubleshooting and documentation. Customisable maintenance reminders on the touchscreen prompt tasks such as tape changes or functional checks, helping keep the system in optimum condition.

Honeywell Vertex Edge is designed to integrate with modern plant control and safety architectures. Standard Modbus TCP/IP and Modbus RTU communications simplify connection to PLCs and distributed control systems for alarm handling, interlocks, shutdown logic and automation. An optional OPC interface supports integration with higher‑level monitoring and control platforms.

In selected configurations, an integrated web server enables authorised remote access to system status, trends and event history, reducing the need to be physically present at the rack. Role‑based access control and HTTPS support help protect configuration changes and data, so only designated personnel can adjust settings while operations and safety teams retain access to key information.

A robust mechanical design supports long‑term use in demanding industrial indoor environments. The combination of a steel housing and door with stainless steel materials provides mechanical protection and corrosion resistance in areas exposed to aggressive chemicals. Splash‑proof cap design helps safeguard the system from overhead liquid exposure, while the operating range and pollution degree rating align with controlled industrial settings. Support for thin‑wall sample tubing and Teflon exhaust tubing provides good chemical compatibility and helps maintain stable transport performance within the recommended exhaust line length.

Power requirements align with common single‑phase facility supplies and industry‑standard wiring practices, including appropriate conductor sizes and shielded CAT5 for Modbus TCP/IP, simplifying electrical design and installation. Data integrity is enhanced by a data acquisition centre with hot‑swappable RAID hard drives, allowing fast drive replacement without stopping monitoring or losing historical records.

Certifications to multiple international EMC, safety and environmental standards, including RoHS compliance, support deployment across global manufacturing sites and internal EHS acceptance processes. By continuously monitoring extremely toxic and corrosive gas families and providing clear visual Chemcassette® stain confirmation of gas exposure, Honeywell Vertex Edge helps organisations demonstrate compliance with regulatory and corporate toxic gas monitoring requirements.

Continuous 24/7 monitoring, resilient system architecture and comprehensive data capture provide assurance that people, high‑value tools and production assets are protected. Combined with Honeywell’s global installation, commissioning, calibration and support services and broad distribution network, Honeywell Vertex Edge offers a long‑term, supportable platform for toxic gas risk management in advanced manufacturing.
