Honeywell Vertex M

Honeywell Vertex M is designed for facilities where even trace amounts of toxic gas can affect safety, product yield or uptime. Chemcassette® colorimetric technology provides industry-leading sensitivity down to parts per billion for critical toxic gases, helping operators detect small leaks early and reduce exposure to hazardous releases. Each gas event leaves a visible stain on the Chemcassette® tape, creating clear, physical proof for incident investigations, compliance records and audits.

The platform monitors more than 40 toxic gases across multiple gas families, with each rack typically supporting several gas families simultaneously. As new Chemcassette® options become available, the system can be configured to add them, supporting evolving process chemistries without a wholesale replacement of monitoring hardware.

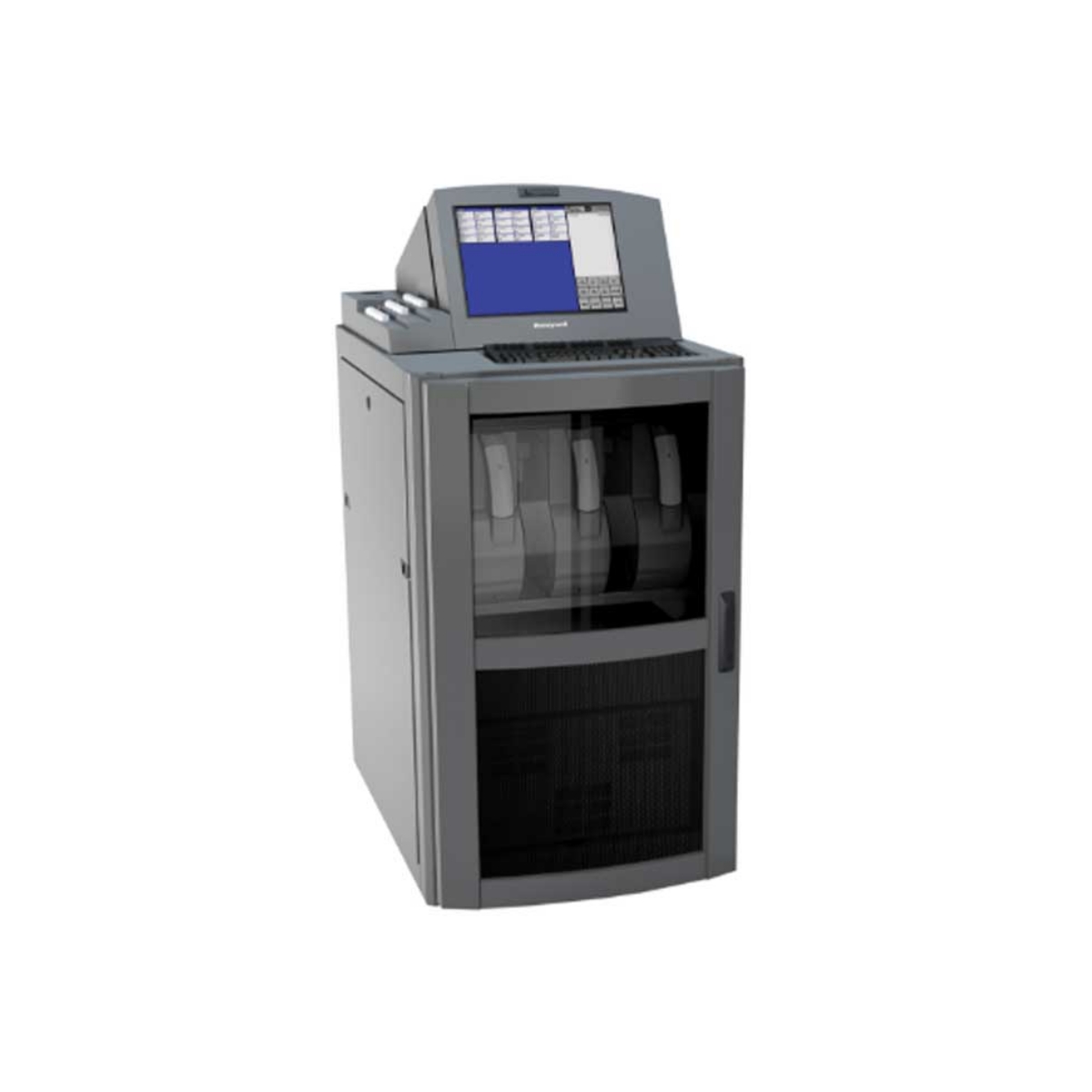

Vertex M is built around a flexible, space-saving rack that supports 8 to 24 sampling points from a single cabinet. Each analyzer handles up to 8 points, allowing coverage to scale in step with new tools, lines or production areas while maintaining a consistent monitoring platform. The compact footprint and high point density help reduce the cost per monitoring point and free up valuable cleanroom and utility space.

Sample lines can extend up to 400 ft (approximately 120 m) from the monitor, enabling centralised monitoring of distributed tools, gas cabinets, scrubbers, storage locations or site perimeters. The ability to route lines to more than one analyzer and split samples increases design flexibility and supports built-in redundancy for high-consequence areas.

To address advanced semiconductor applications, Vertex M can be configured with a dedicated pyrolyzer analyzer for NF3 monitoring via conversion to HF. The system accepts up to three universal Chemcassette® analyzers, or a combination of one pyrolyzer analyzer and one universal Chemcassette® analyzer, enabling tailored coverage based on the process gas mix without introducing multiple detector platforms.

The same architecture suits a wide range of other environments, including microelectronics and semiconductor fabrication, PV, nanotechnology, specialty and inorganic chemicals, laboratories, plastics and fibers, agriculture, perimeter monitoring, food and cold storage, wastewater, pulp and paper, power generation and printing. CE, RoHS and multiple EN/IEC safety and EMC certifications support deployment in regulated industrial settings.

Vertex M is engineered to minimise ongoing service demands. Extended-play Chemcassette® tapes provide up to 90 days of continuous monitoring, while optional XP and XP4 Chemcassettes® extend service intervals to around 120 days. Typical consumable lifetimes of 1–3 months, or up to 4 months with XP4, help reduce tape change frequency, especially in large multi-rack installations or hard-to-access areas.

The use of cost-effective XP Chemcassettes® keeps consumable costs predictable, supporting budget control for multi-year monitoring programmes. No dynamic calibration is required, lowering technician workload and helping avoid unnecessary process interruptions. Depending on configuration, sample flow is either inherently balanced or managed via simple one-touch flow balancing, speeding commissioning and making repeatable setup easier to achieve.

For continuous operation in critical safety applications, Vertex M incorporates multiple layers of redundancy, including redundant pumps and power supplies, to support high availability. Automatic or scheduled sample line integrity tests verify line condition and detect leaks or blockages, enabling maintenance teams to correct issues before they compromise monitoring coverage. FEP Teflon sample tubing options are optimised for kink resistance and fast transport times over long runs, further improving system reliability.

Serviceability is built into the front-facing design. Analyzers, pumps, power supplies and the color touch screen are all accessible from the front panel, helping to shorten interventions and reduce downtime. Configuration profile editing, data retrieval and many routine maintenance activities can be performed while the system continues to monitor, and software updates via CD-ROM or network do not require gas monitoring to be taken offline.

The large 1024 x 768 pixel color touch-screen display provides clear, at-a-glance status across all sampling points, with visual indicators for alarms and instrument faults. Integrated on-screen help and an interactive electronic manual guide operators through configuration, routine checks and troubleshooting, supporting consistent operation across shifts and sites.

Configurable security with multiple password levels helps control access to critical settings, and security profiles can be updated without interrupting monitoring. RFID tag verification ensures the correct Chemcassette® is installed in each analyzer, reducing the risk of incorrect gas coverage. Where stronger incident documentation is required, the optional ChemCam camera can visually confirm and record Chemcassette® stains locally or remotely, complementing the physical tape evidence with a robust digital audit trail.

Vertex M is designed to integrate into both modern and legacy plant architectures. A standard OLE for Process Control (OPC) interface enables direct connection to control systems and HMIs, while a broad range of digital communication options—including Ethernet/CIP, Modbus/TCP, Modbus Plus, Profibus-DP, DeviceNet, ControlNet, LonWorks and DF1—supports connection to existing industrial networks.

Optional 4–20 mA analogue outputs, up to 24 channels, provide straightforward interfacing with legacy DCS, ESD and safety systems. Built-in configurable PLCs combined with optional relay modules offer up to 64 factory-installed, field-programmable Form A relays, giving engineering teams flexibility when designing alarm, shutdown and ventilation strategies. Each point supports A1 and A2 alarm capability, alongside general analyzer and maintenance fault alarms, enabling nuanced responses aligned with site safety philosophies.

With support for both 110 VAC and 220 VAC power and a wide operating voltage tolerance, Vertex M suits global multi-site deployment. Its operating altitude range and mid-range humidity tolerance accommodate a variety of climates and elevations, from coastal fabs to inland industrial plants.

The space-saving rack offers a clear path for expansion, with accessory kits to add analyzers as monitoring needs grow. A comprehensive accessory ecosystem—including sample tubing, duct adapters, particulate and interferent filters, floor mounting options and port stoppers—allows a single platform to be used across multiple applications and layouts, reducing the number of detector types, simplifying spares holdings and streamlining training.

Optional remote viewing and control software (Active Display Server and Client) enables centralised monitoring and control from remote PCs, supporting multi-area or multi-site supervision. Combined with extensive documentation, such as technical handbooks, datasheets, operating manuals and technical notes, Honeywell Vertex M provides a robust, economical foundation for continuous toxic gas monitoring strategies with low total cost of ownership.
