Honeywell Midas S2

The Honeywell Midas S2 is a fixed, extractive single‑point gas detector designed to monitor hard‑to‑reach or high‑value process areas. Its compact form factor fits into tight tool bays, crowded production lines and space‑constrained lab benches, while the integrated pump draws samples from local or remote points via tubing. Sampling distances up to 30 m / 100 ft, combined with a transport system regulated to a consistent flow rate, allow strategic detector placement without compromising response time or measurement confidence.

Midas S2 supports a wide portfolio of interchangeable sensor cartridges for toxic gases, flammable gas hazards, oxygen monitoring and specialised process gases used or generated in semiconductor tools, light industrial manufacturing and research or university labs. Electrochemical sensor technology is complemented by optional NDIR modules for selected gases, enabling one platform to cover both ambient and process gas applications. Sensor ranges span low‑level ppb detection through to ppm, %LEL and %vol measurements, allowing sites to standardise on a single detector family across diverse applications and reduce spares, training and engineering complexity.

Each Midas S2 sensor cartridge is factory‑calibrated and incorporates an onboard electronic e‑calibration certificate. This plug‑and‑play approach allows fast commissioning with minimal configuration effort and reduces dependence on frequent gas testing and manual field calibration. Extended calibration intervals and patented diagnostics further decrease maintenance frequency, while a two‑year sensor cartridge warranty on many types supports long‑term planning. For operators and maintenance teams, this translates into shorter service windows, fewer call‑outs and a lower overall cost of ownership.

Midas S2 is engineered so that routine maintenance can be completed quickly from the front of the NEMA 4 enclosure. Sensor cartridges and key pump components are accessed and replaced without disturbing surrounding equipment, which is particularly valuable in congested tool chases and production areas. The robust extractive pump system offers a two‑year lifetime, and the sample and exhaust line configuration is optimised to minimise adsorption effects and response delays, with typical transport performance around 25 seconds. Built‑in block and line integrity testing, and an optional Line Integrity Test (LIT) module on specific variants, help confirm sampling line connection, detect leakage and reduce the risk of undetected monitoring gaps.

The Honeywell Midas S2 is suitable for indoor industrial environments such as semiconductor fabs, light manufacturing facilities and technical laboratories. A NEMA 4 enclosure, regulated transport system and tubing specifications matched to runs up to 30 m / 100 ft support reliable performance in demanding settings. Dual‑level alarm capability is typically configured around occupational exposure limits, enabling clear differentiation between warning and critical conditions. Dedicated Power, Alarm and Fault LEDs, alongside the colour display, provide immediate visual confirmation of detector status to operators and maintenance personnel.

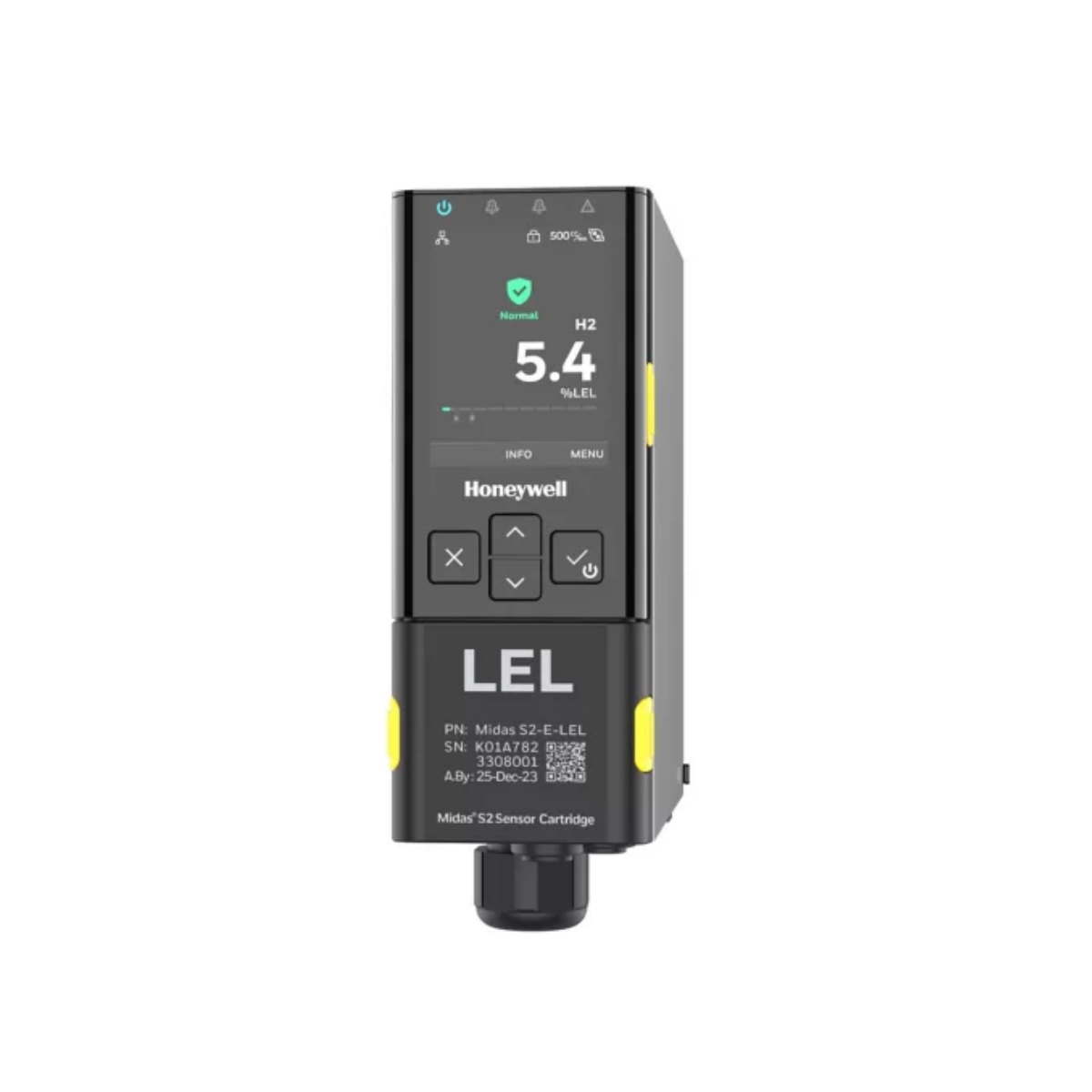

A bright 2.4″ colour TFT/IPS LCD with a wide viewing angle presents gas readings, instrument status icons, point identification and alarm indications in a clear, graphics‑based layout. The keypad / four‑button interface supports straightforward local configuration and operation. Password‑protected menus help enforce site procedures and protect against unauthorised changes, supporting consistent configuration control and assisting compliance in regulated or high‑risk environments.

Midas S2 integrates into existing safety, control and building management systems via multiple communication paths. A 4–20 mA analog output (sink/source) with fault and event reporting enables direct connection to DCS, PLC and alarm panels. Built‑in digital communications include Modbus TCP/IP and TCP Ethernet, while Power over Ethernet (PoE) capability allows a single CAT5 / RJ45 cable to carry power, control and data. These options reduce wiring complexity, shorten installation time and simplify migration or expansion projects.

A broad accessory range supports consistent use of the Midas S2 platform across varied applications. Mounting options such as DIN‑rail, angle and “L” brackets enable flexible installation on tools, walls or panels. Duct sampling adapters extend monitoring into HVAC and process ducts, while compatible tubing, end‑of‑line particulate/corrosive filters and Freon filters support tailored sampling configurations. An optional high‑temperature pyrolyzer module enables detection of certain fluorinated and specialist semiconductor gases, helping extend coverage to challenging process chemistries.

Beyond local operation, Midas S2 supports remote data viewing, remote reset and remote configuration via software tools, enabling centralised supervision of multiple detectors. mA and Ethernet communication paths make it straightforward to integrate into existing supervisory and event management systems. Certified to key international safety and EMC standards and operating with low typical power consumption, the Midas S2 forms part of Honeywell’s latest generation of fixed gas detection solutions, focused on high uptime, reliable performance and long‑term serviceability in high‑value production environments.
